Check ATF Temperature Sensor

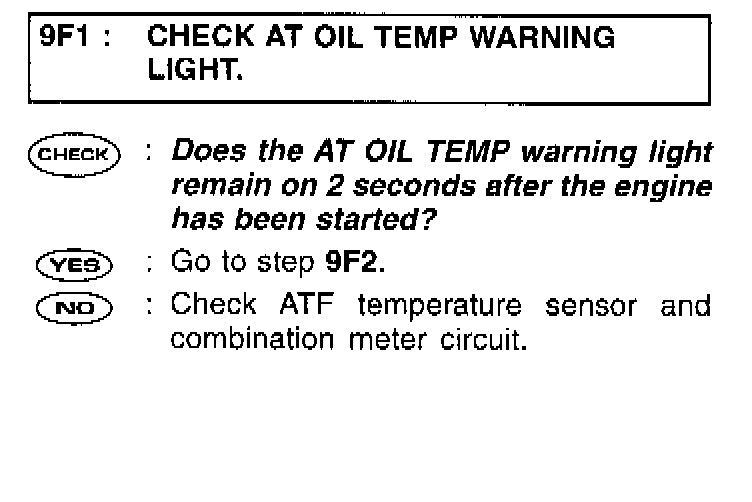

9F1: CHECK AT OIL TEMP WARNING LIGHT.

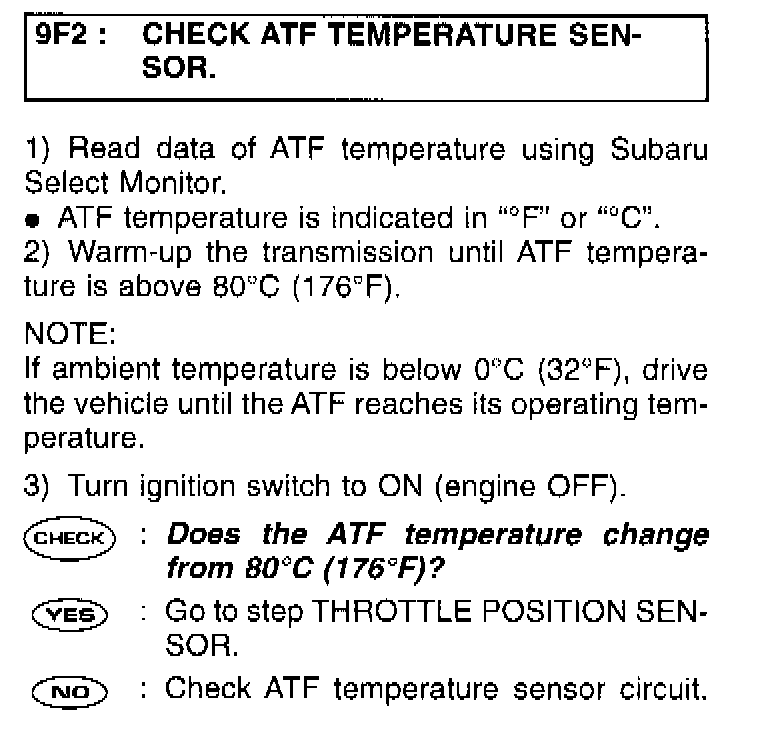

9F2: CHECK ATF TEMPERATURE SENSOR.

G: CHECK THROTTLE POSITION SENSOR.
