Engine Control Module
Connector View:

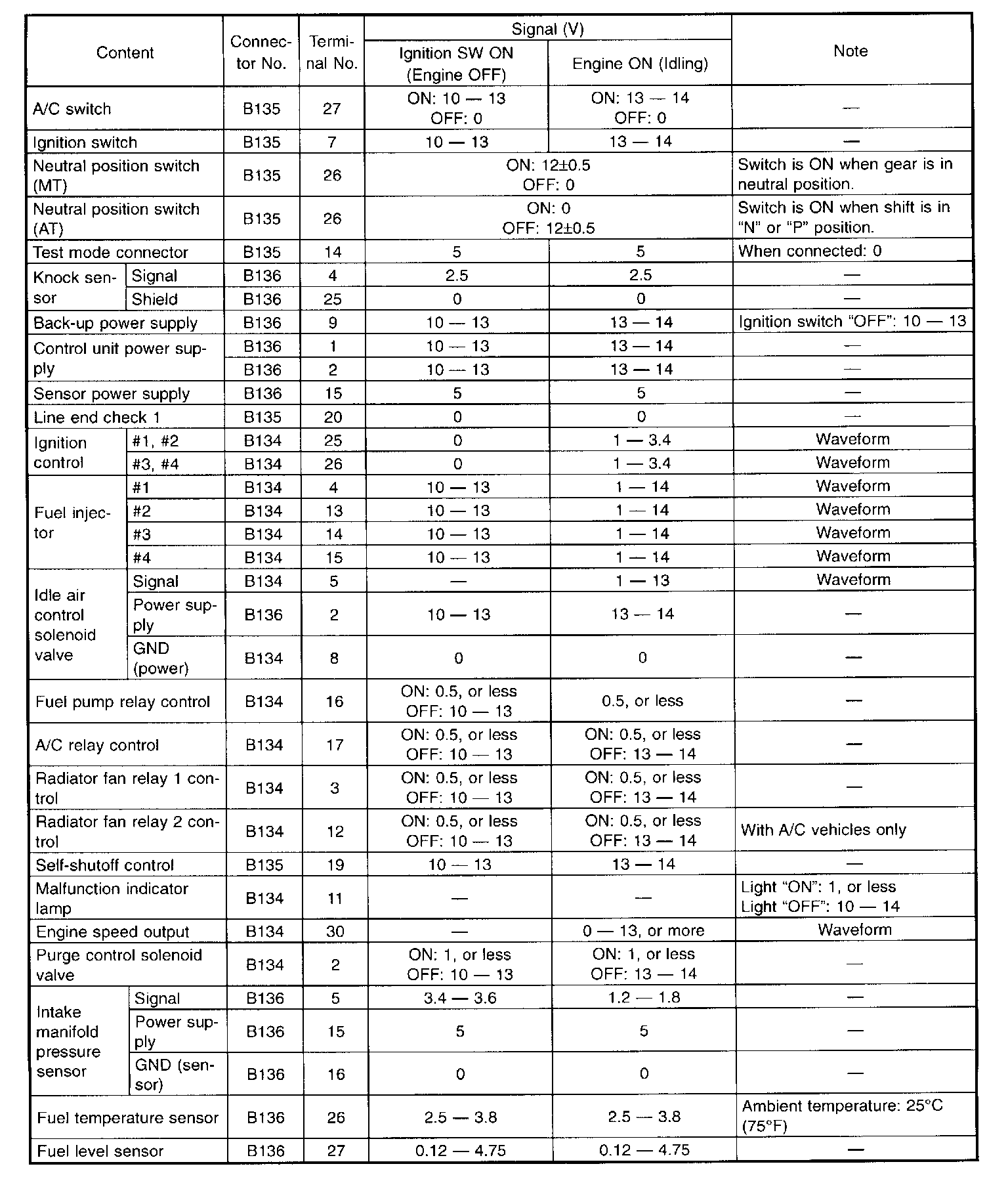

Connector Pinouts ( Part 1 Of 3 ):

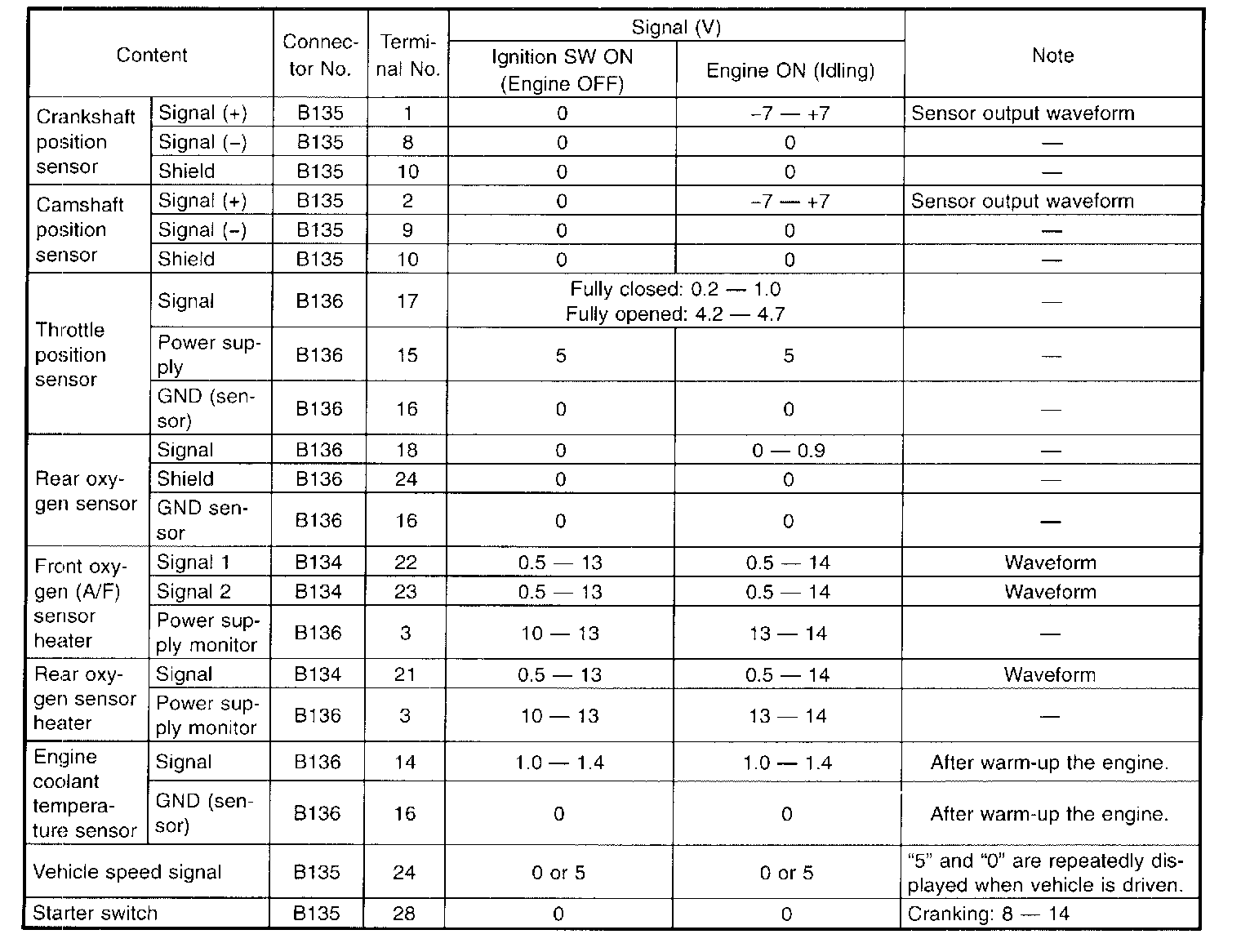

Connector Pinouts ( Part 2 Of 3 ):

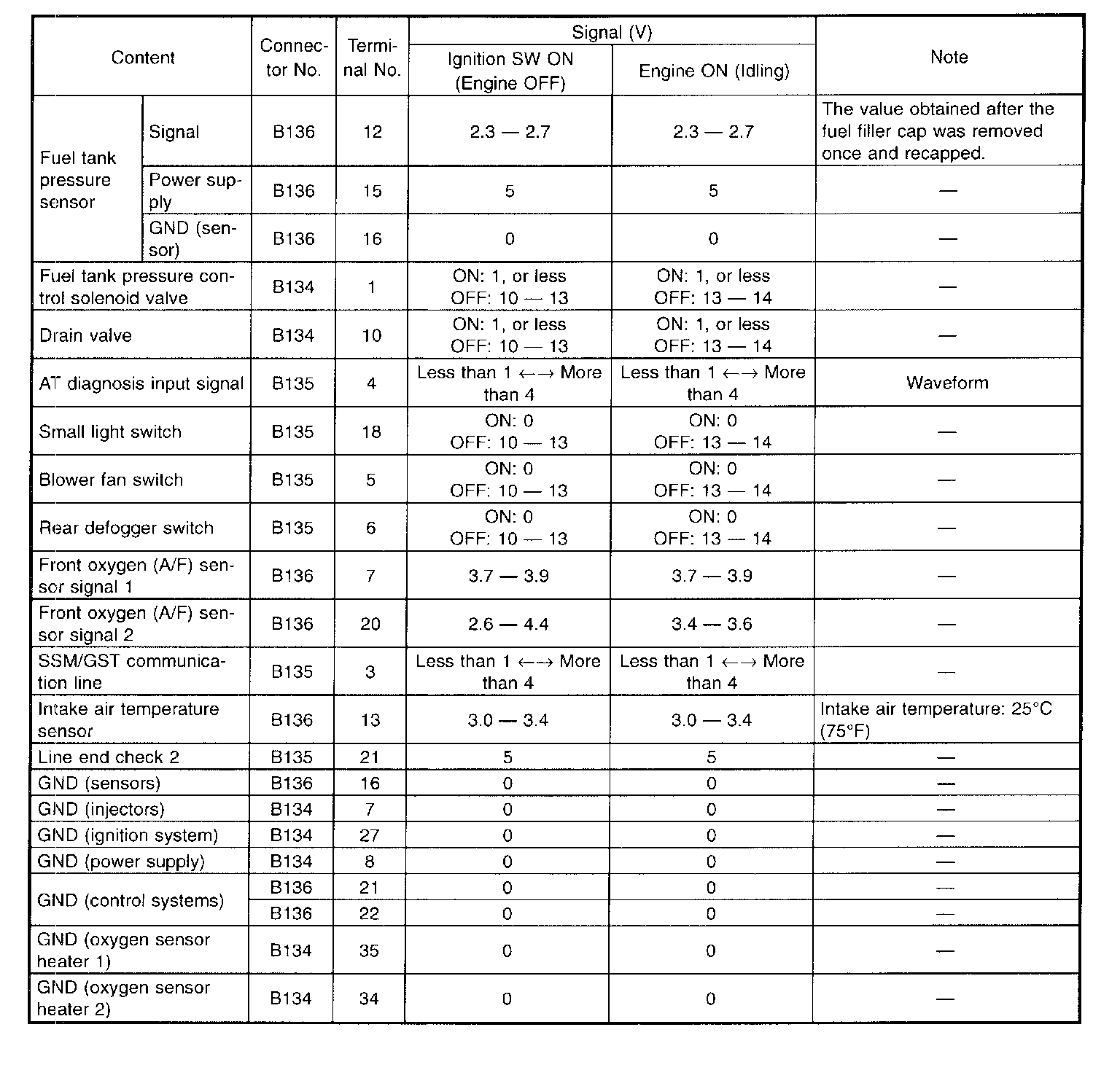

Connector Pinouts ( Part 3 Of 3 ):
