Home >> Subaru >> 2000 >> Forester L F4-2.5L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering >> System Diagram

System Diagram

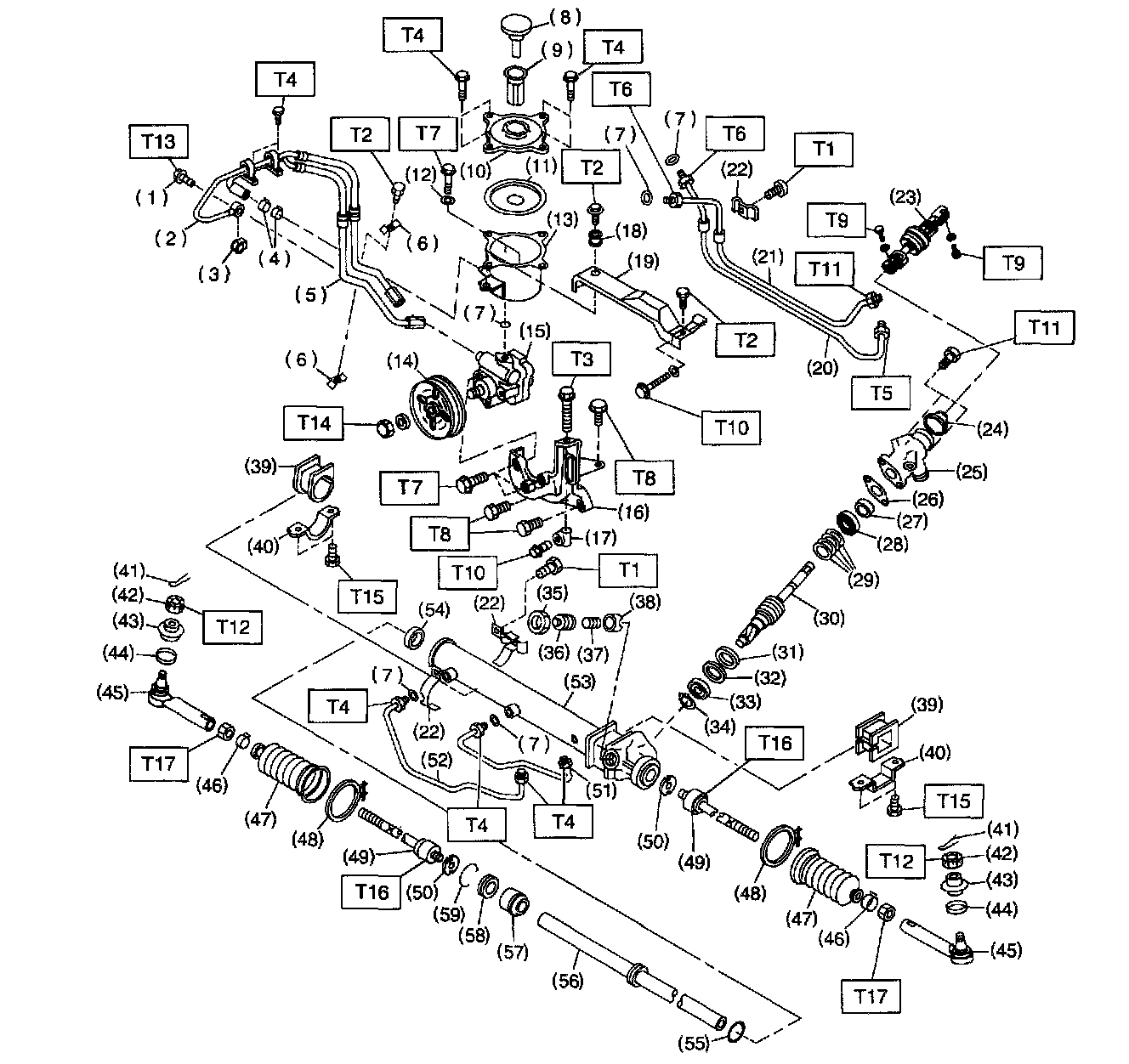

Part 1 Of 2:

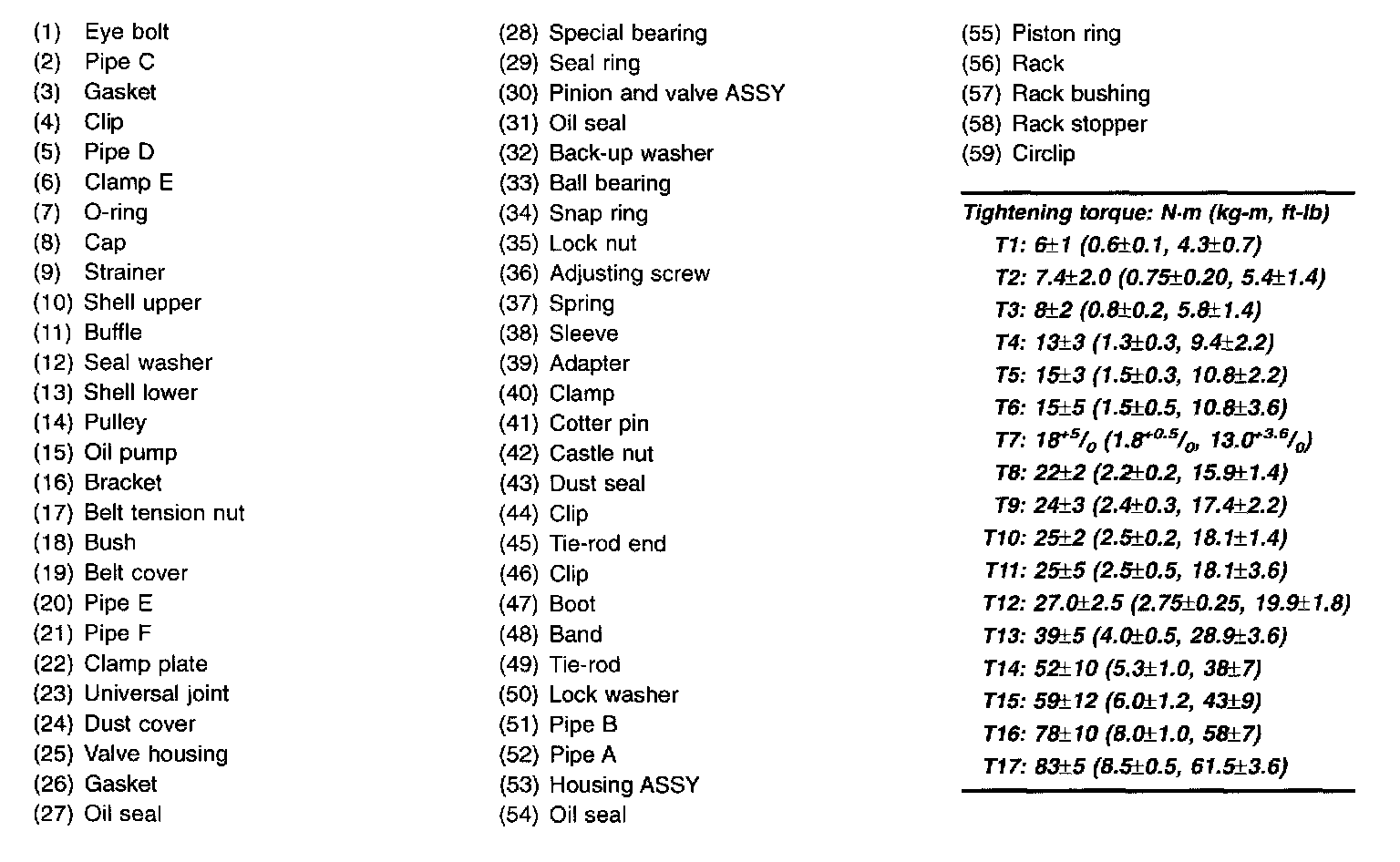

Part 2 Of 2:
