Home >> Subaru >> 1999 >> Legacy Outback AWD F4-2.5L DOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> A/T Torque Data

A/T Torque Data

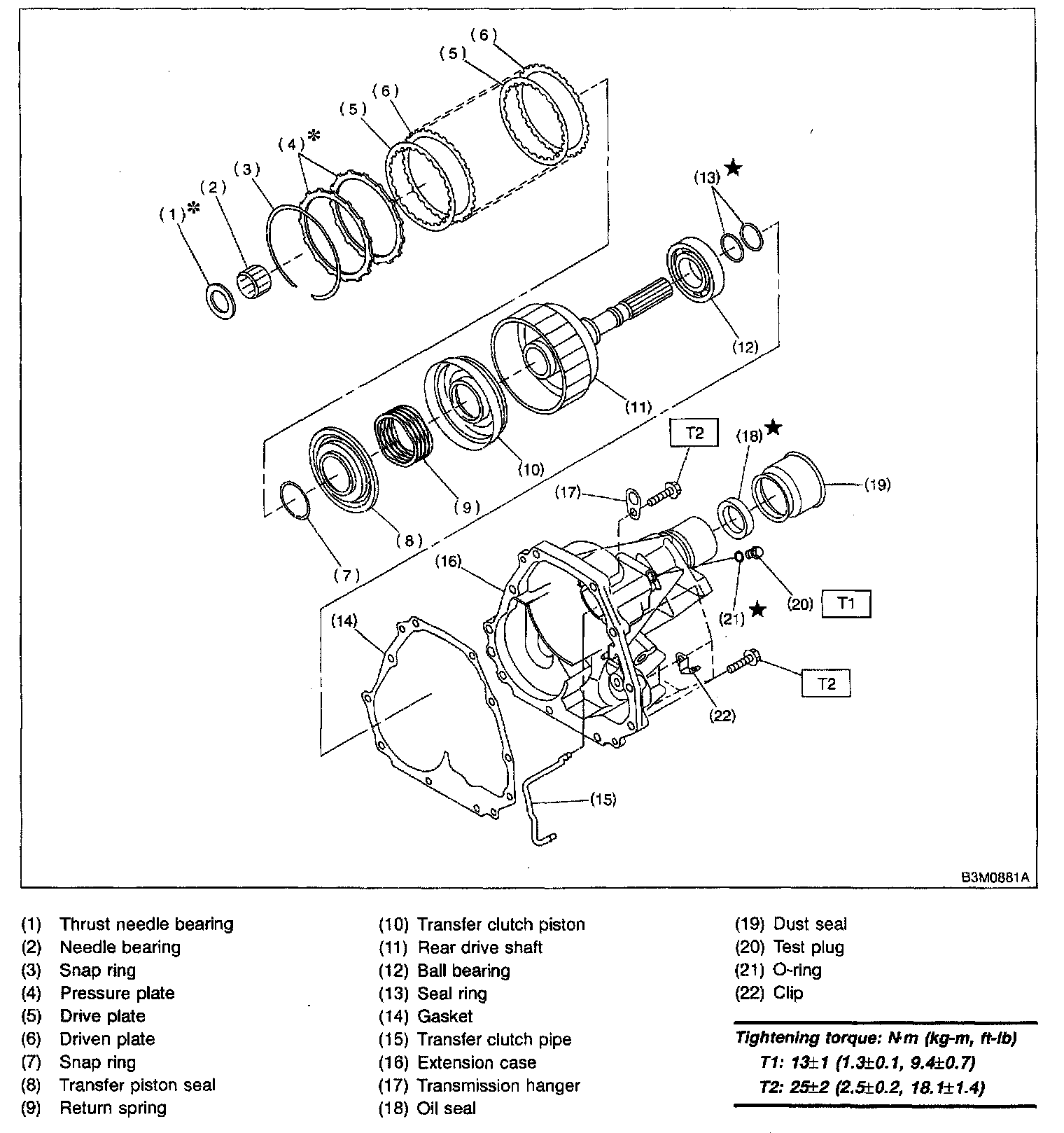

4-spd A/T, Transfer & Transmission Extension:

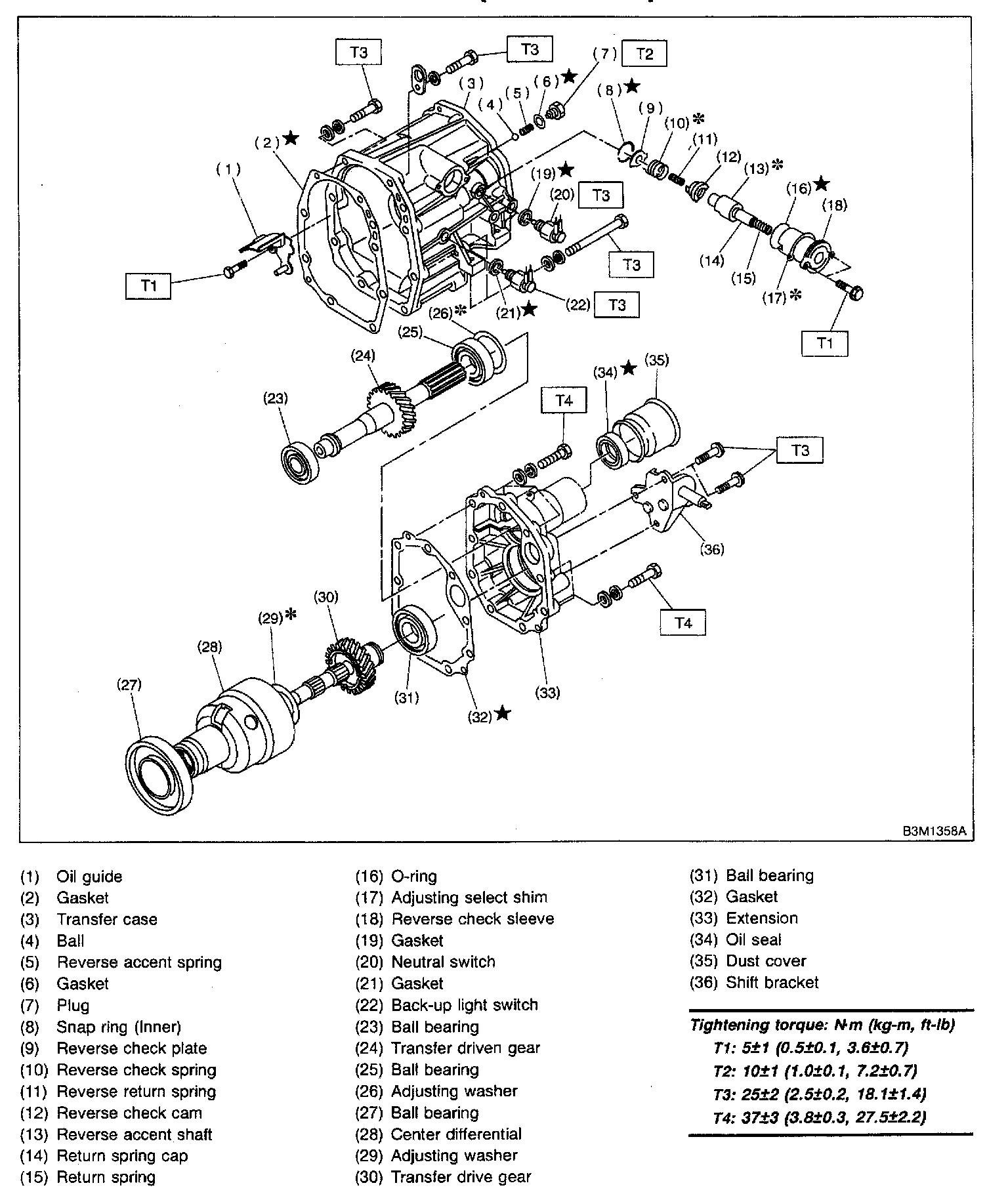

5-spd M/T. Transfer Case & Transmission Extension (AWD):
