Manual Transmission/Transaxle

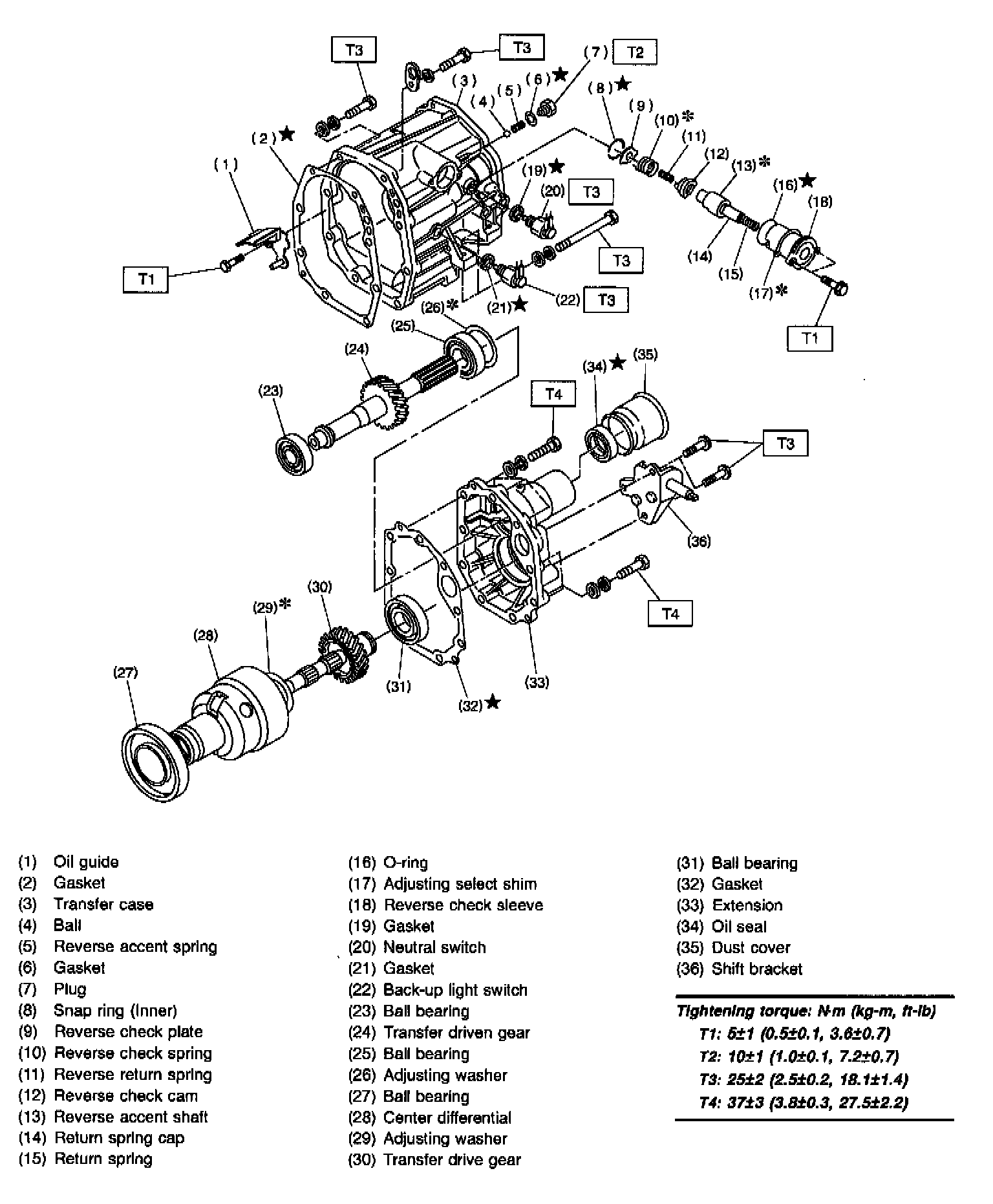

1. Transfer Case and Extension (AWD Model)

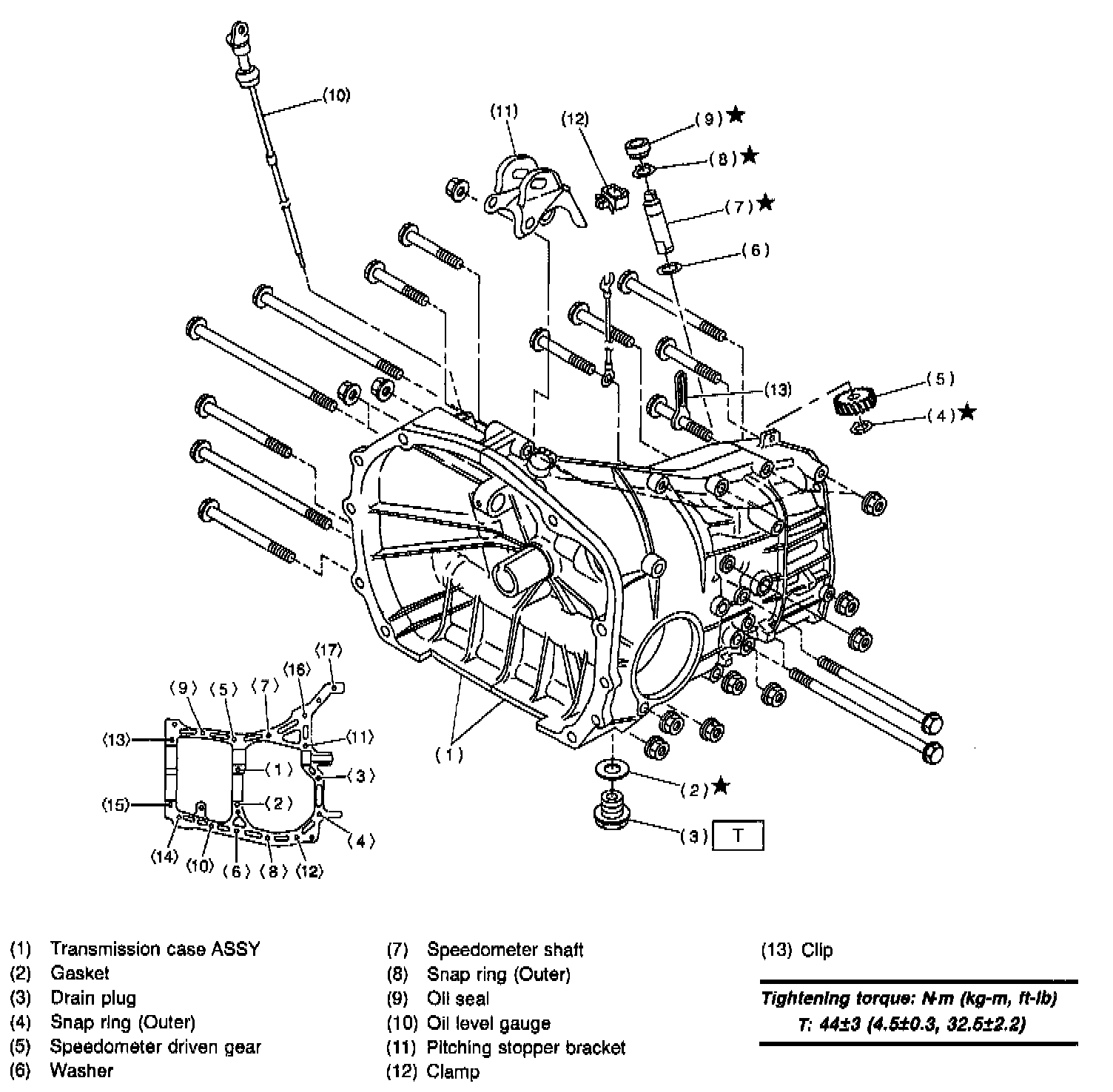

3. Transmission Case

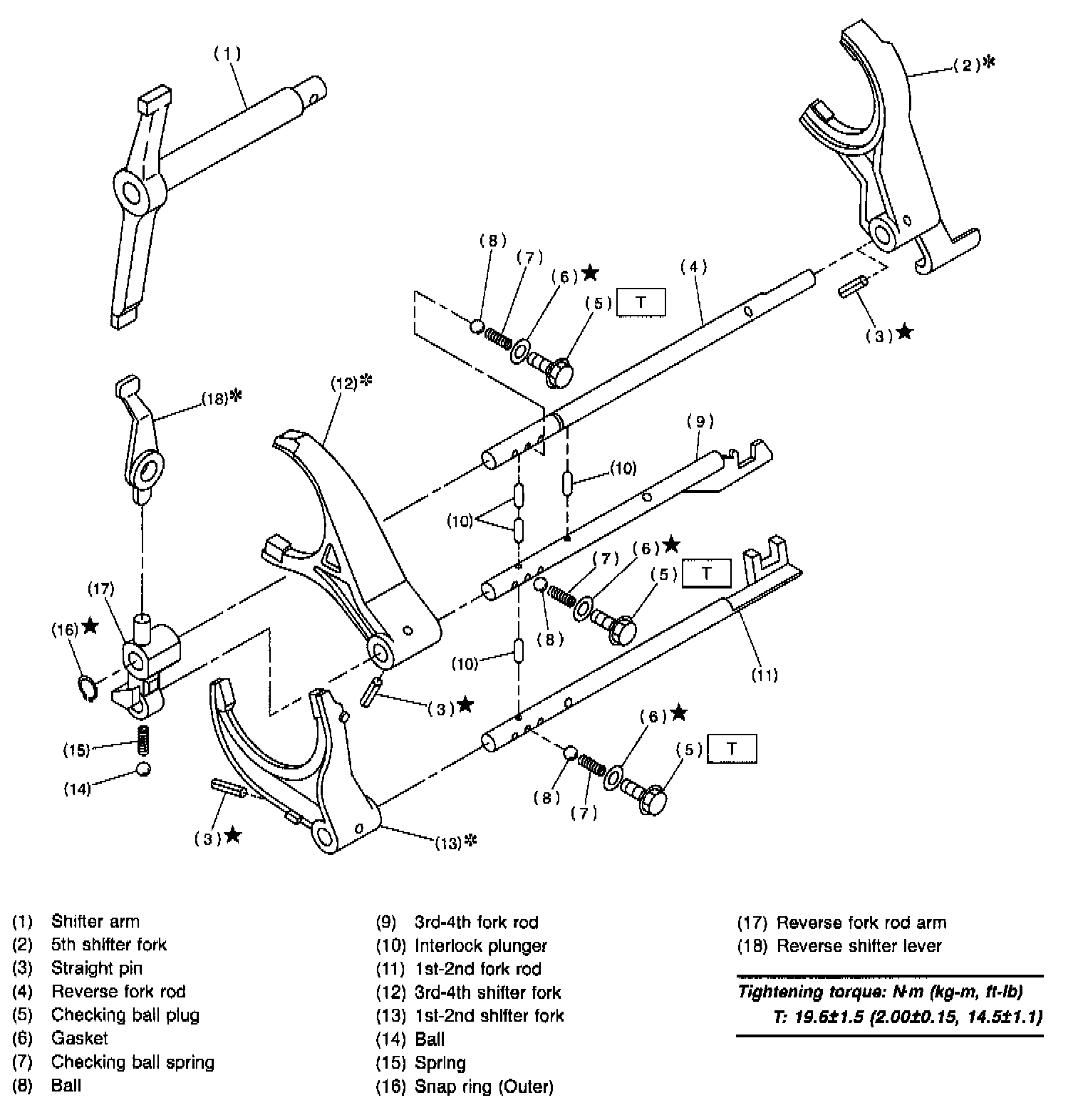

4. Shifter Fork and Shifter Rod

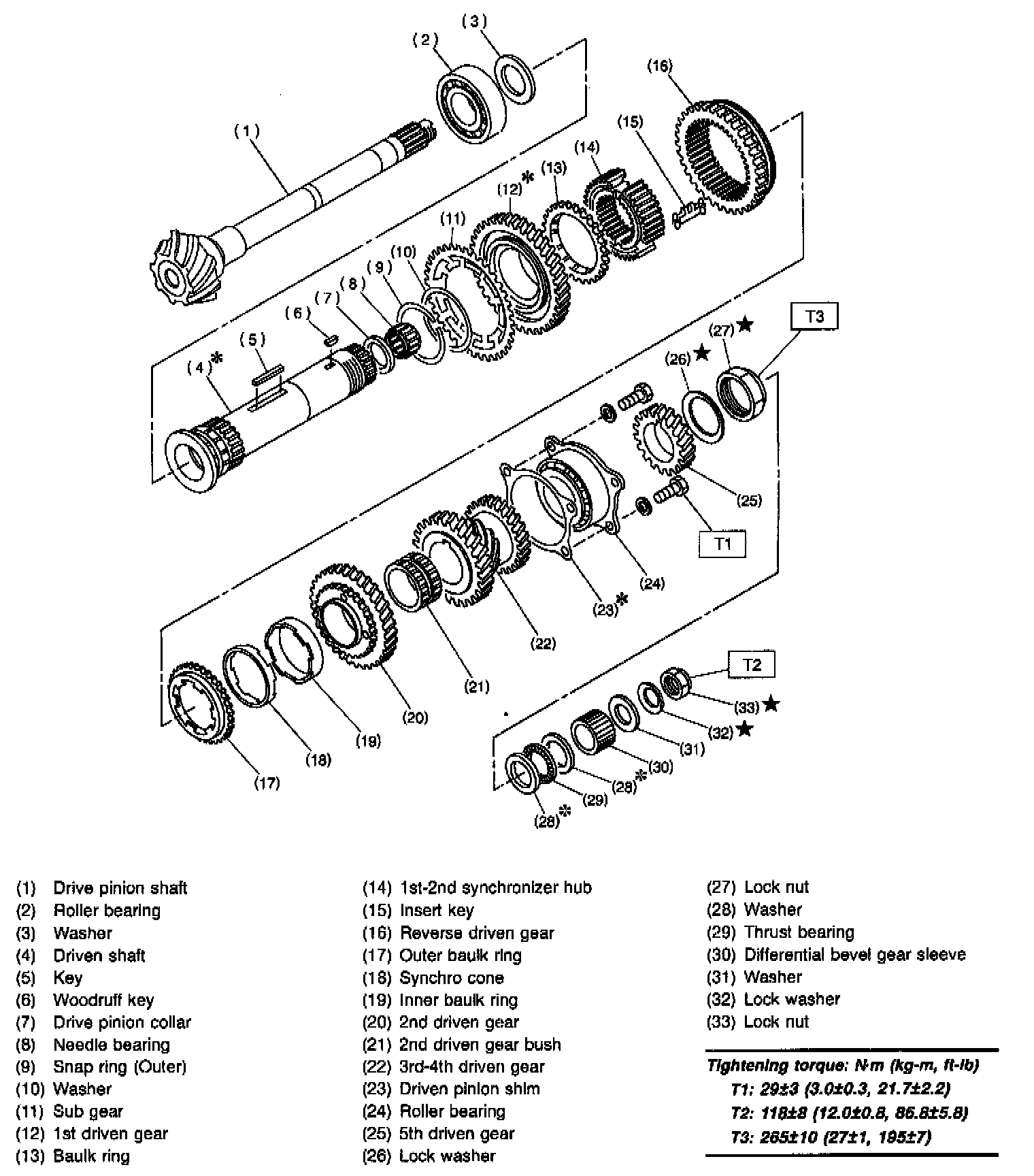

5. Drive Pinion Assembly

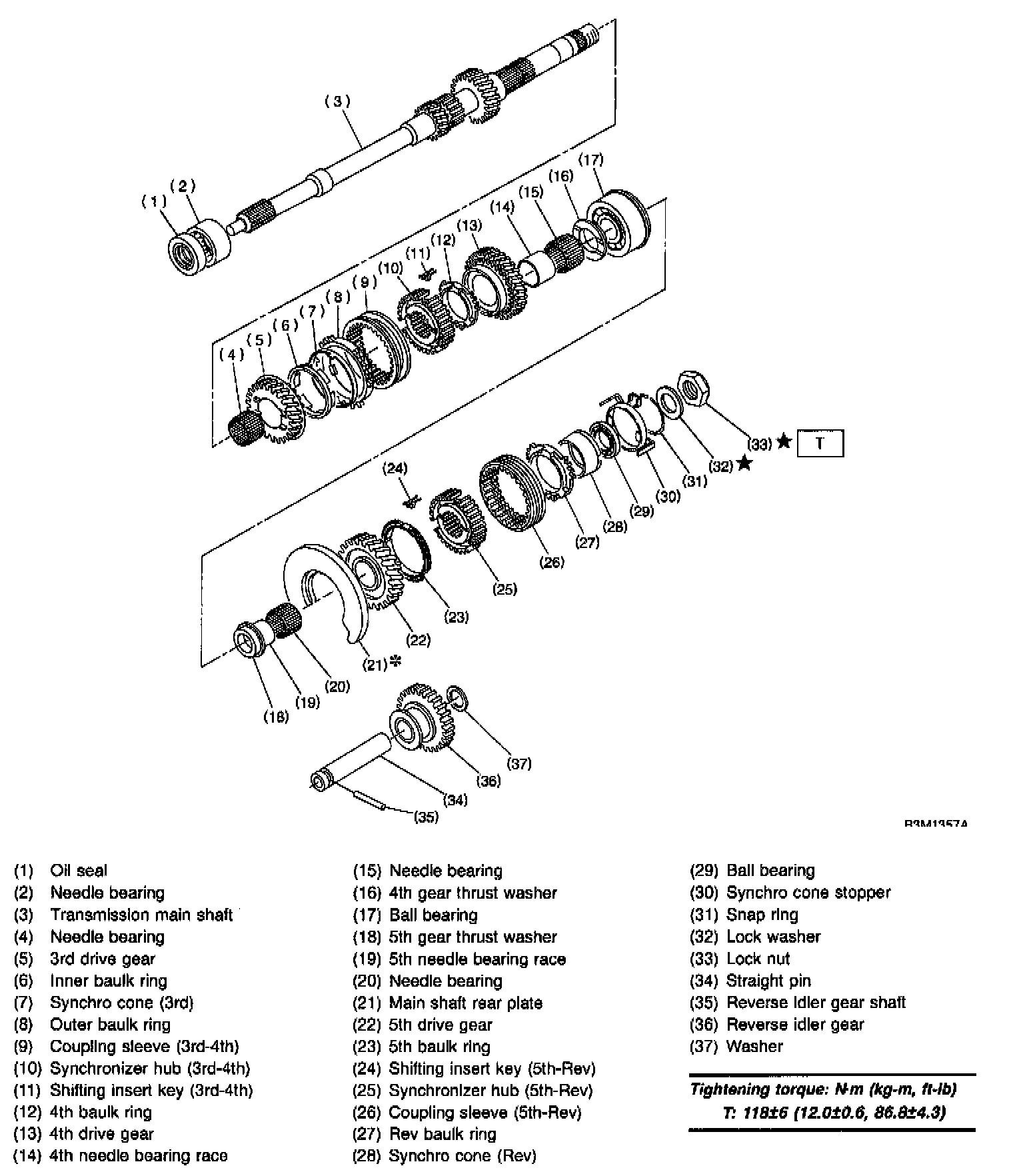

6. Main Shaft Assembly
