Manual Transmission/Transaxle





1. Transfer Case and Extension (AWD Model)








3. Transmission Case





4. Shifter Fork and Shifter Rod





5. Drive Pinion Assembly

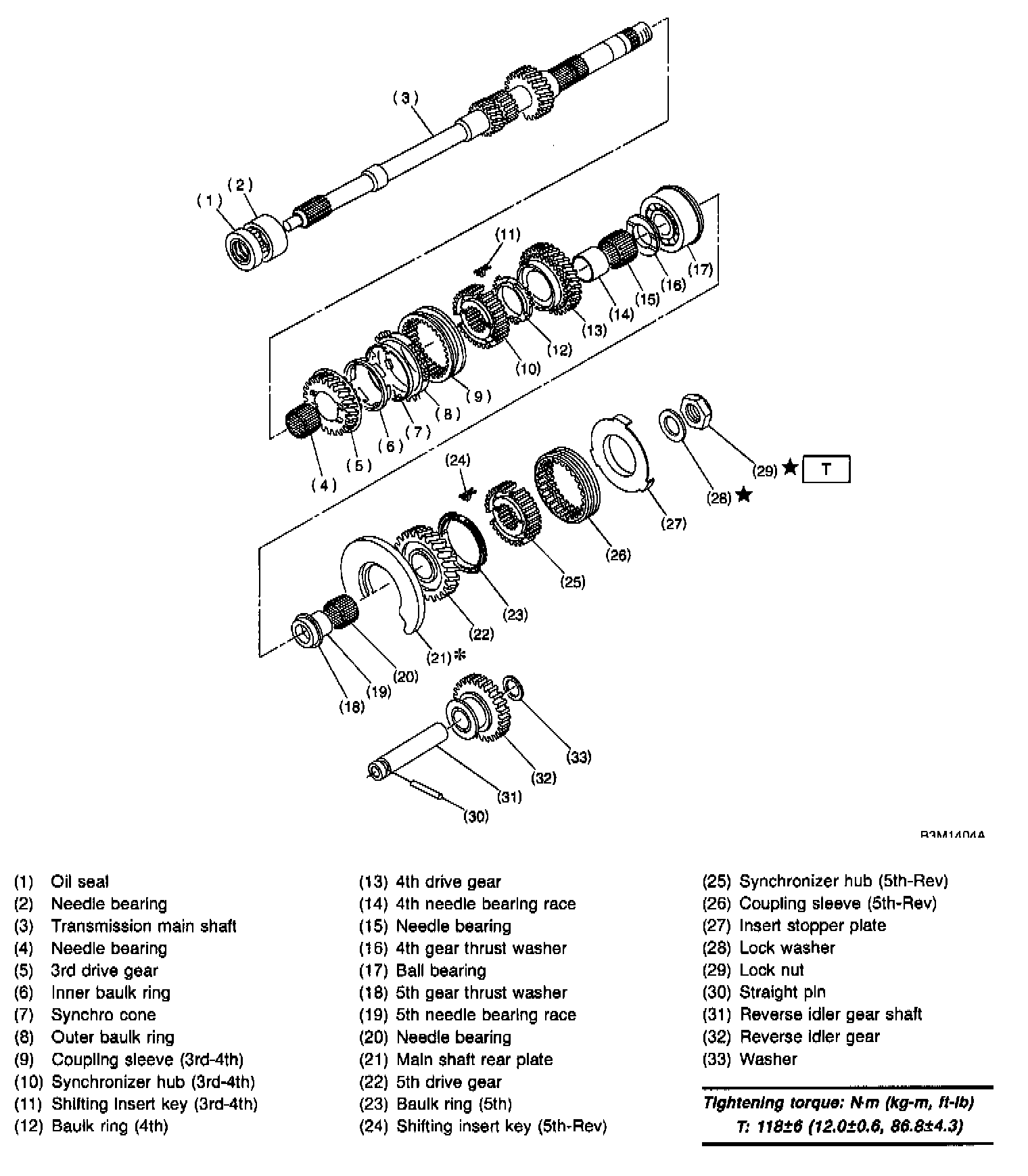

6. Main Shaft Assembly
