Subaru
>>
1999
>>
Legacy L Sedan AWD F4-2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Engine Control Module
>>
California Only
California Only
Connector View:

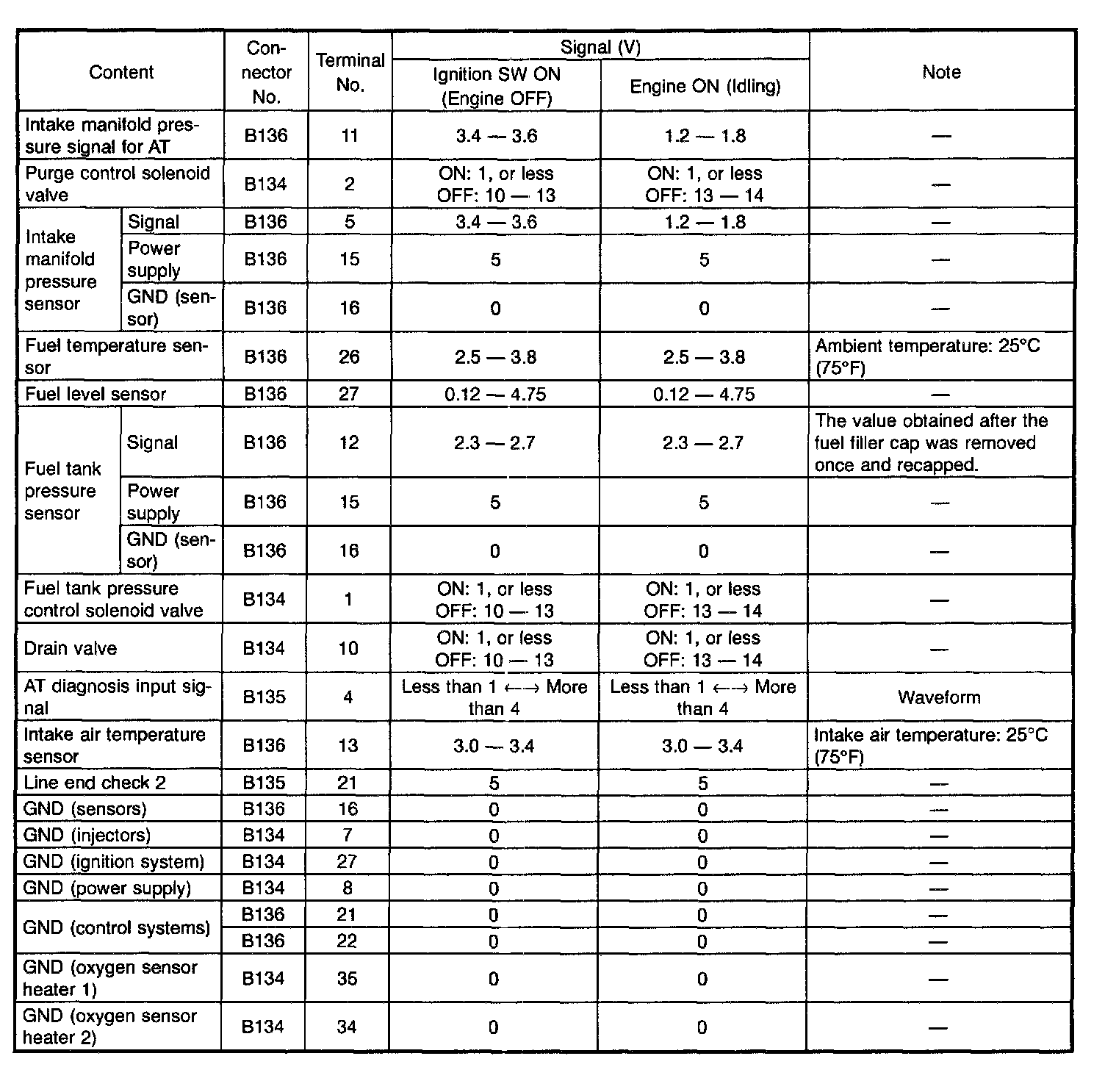

Connector Pin-outs (Part 1 Of 3):

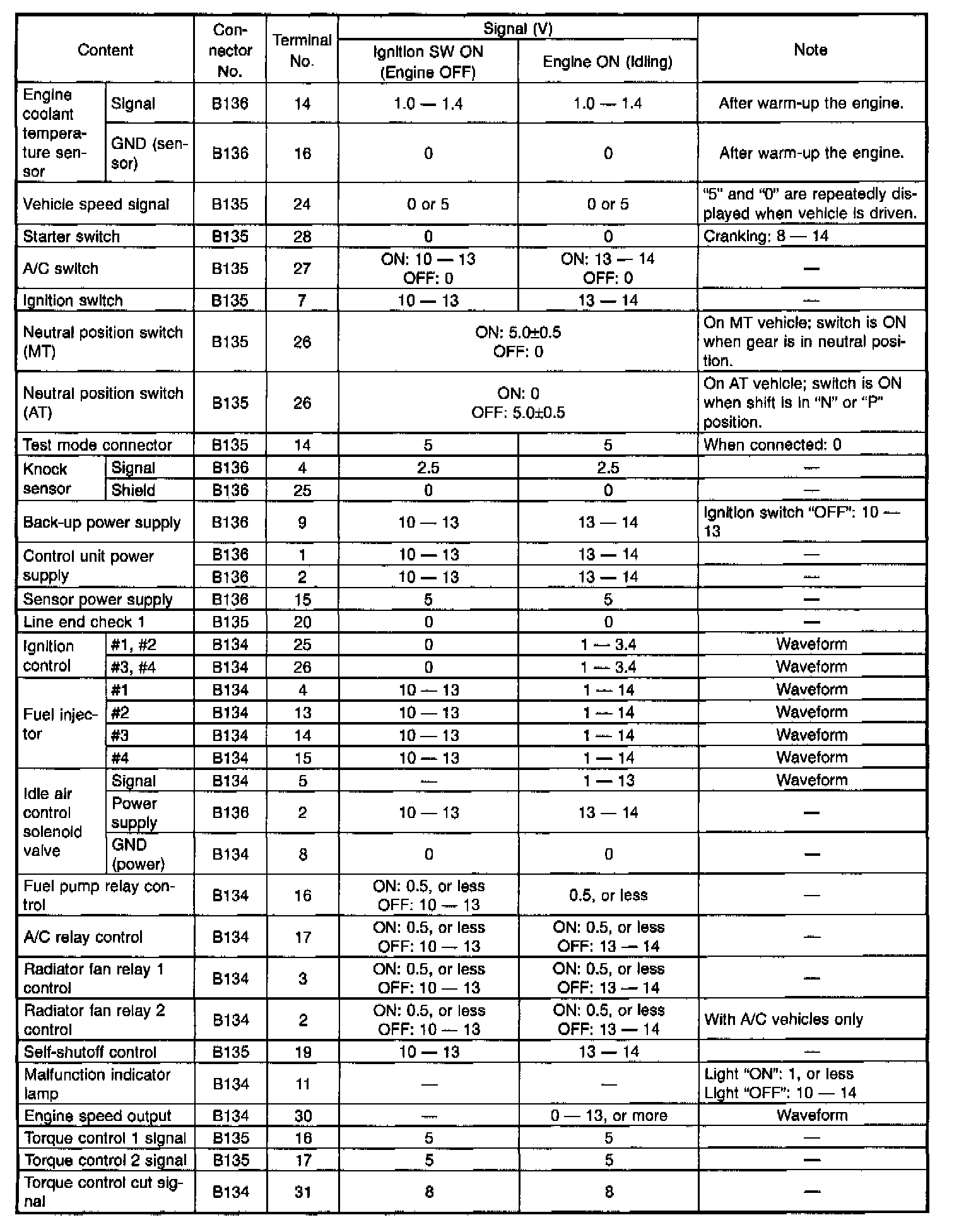

Connector Pin-outs (Part 2 Of 3):

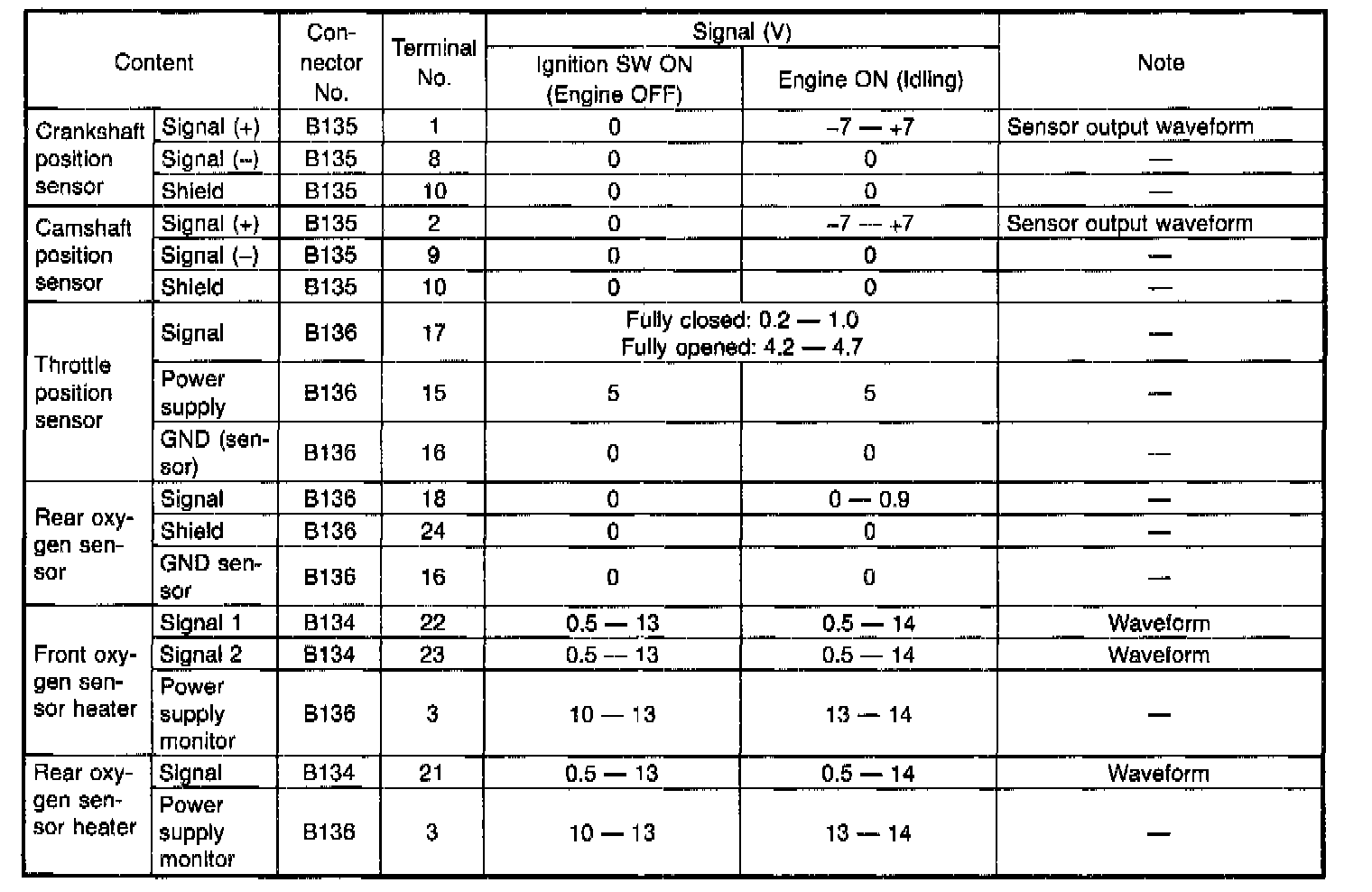

Connector Pin-outs (Part 3 Of 3):
