Home >> Subaru >> 1999 >> Forester L F4-2.5L SOHC >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Locations

Transmission Control Systems: Locations

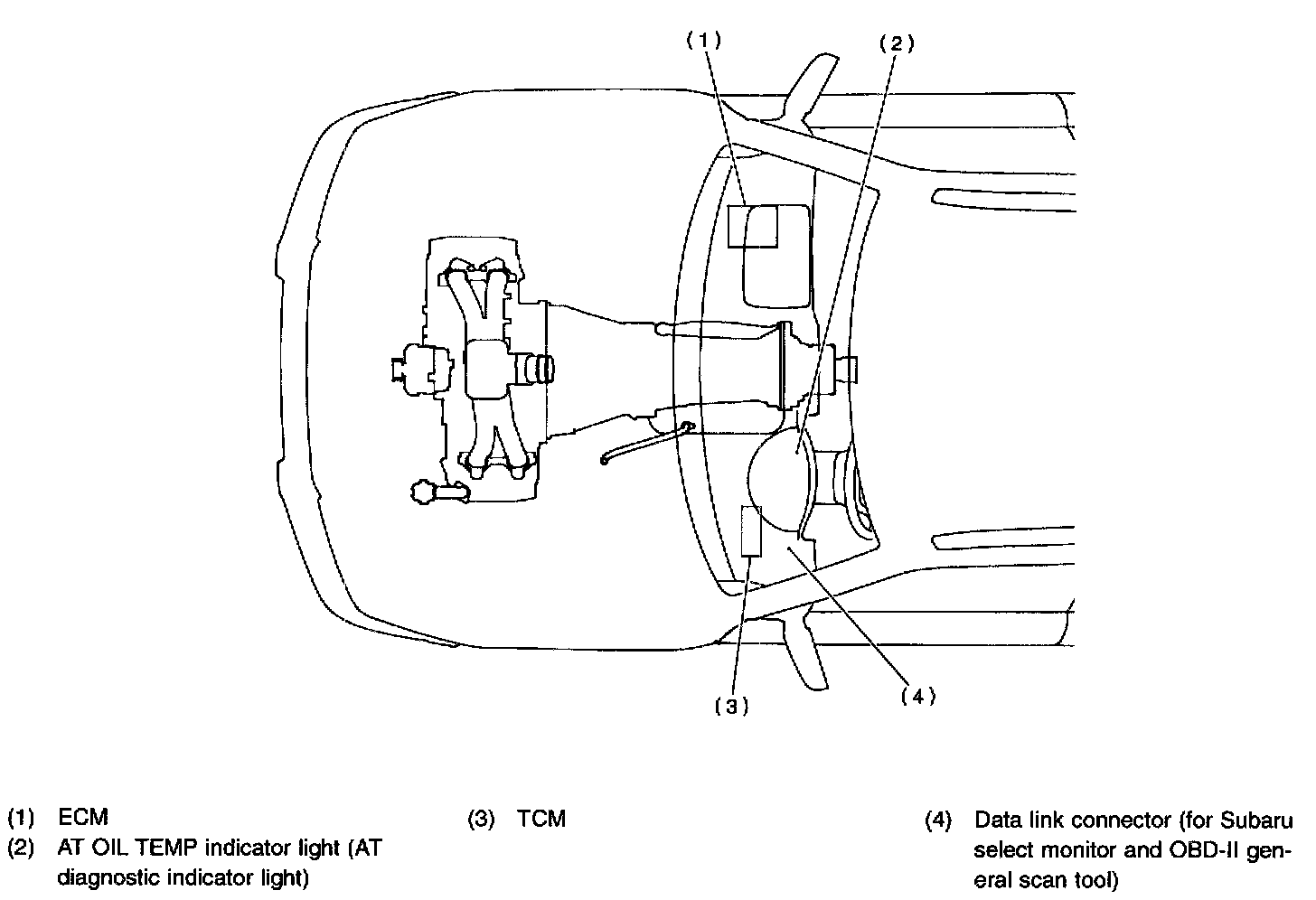

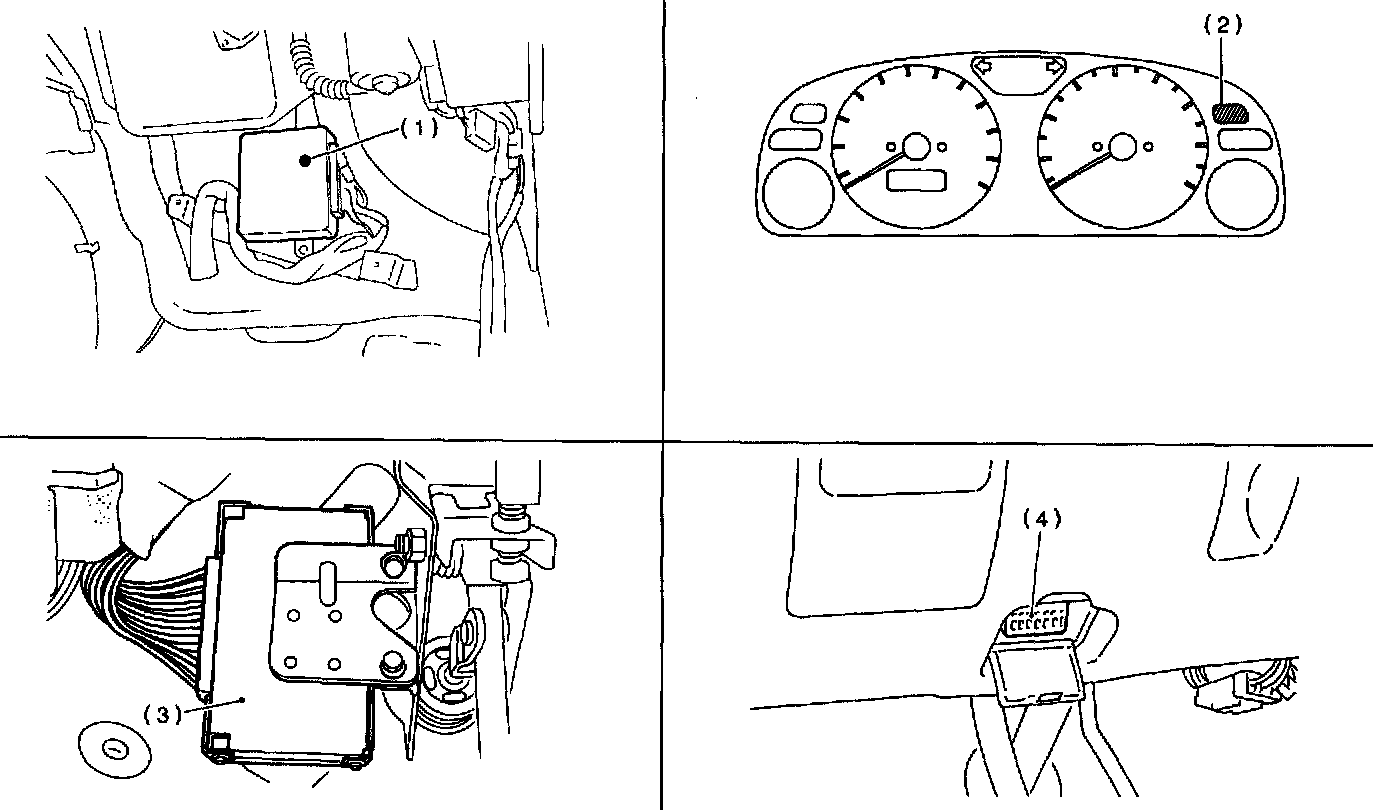

A: MODULE

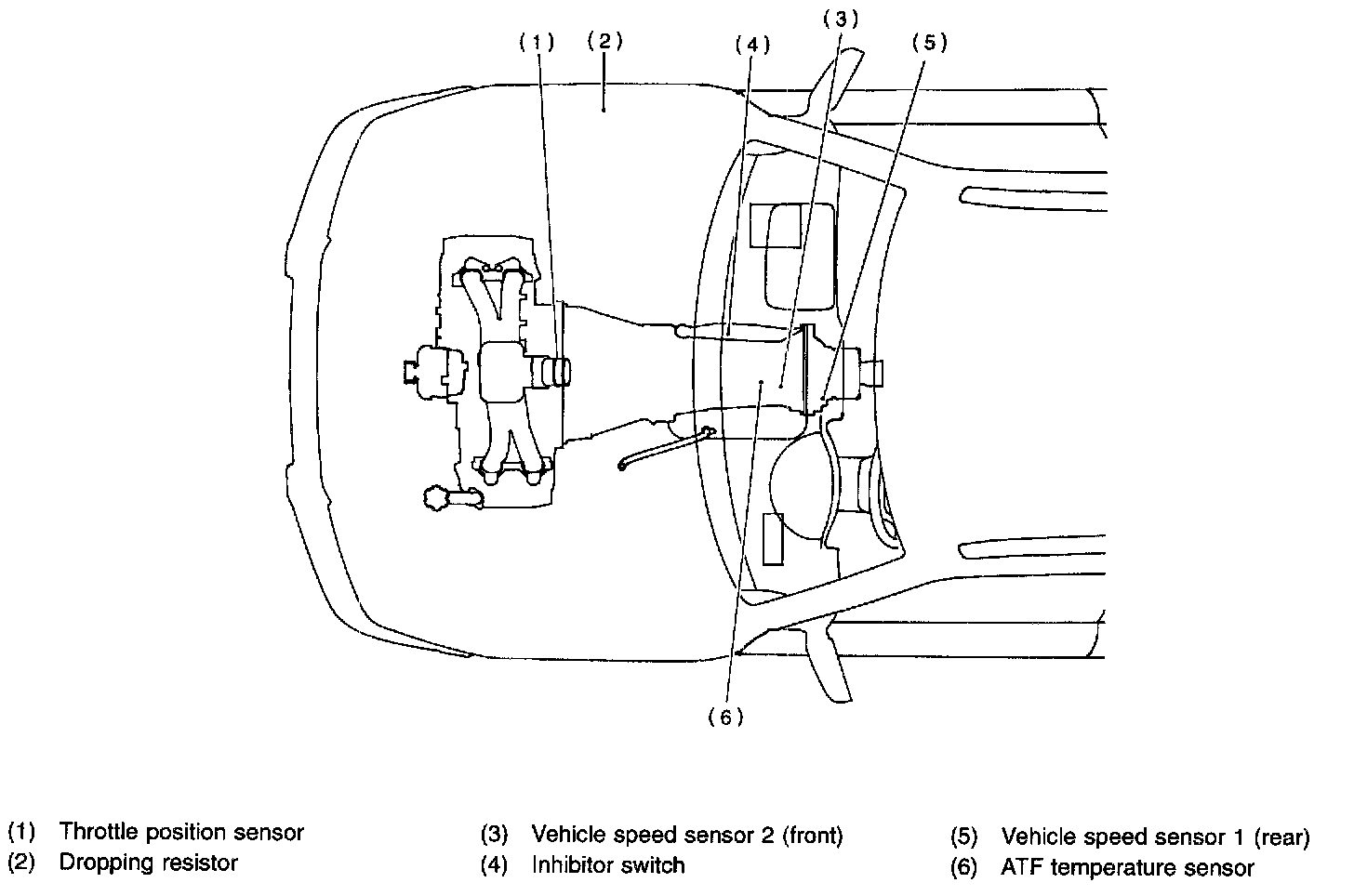

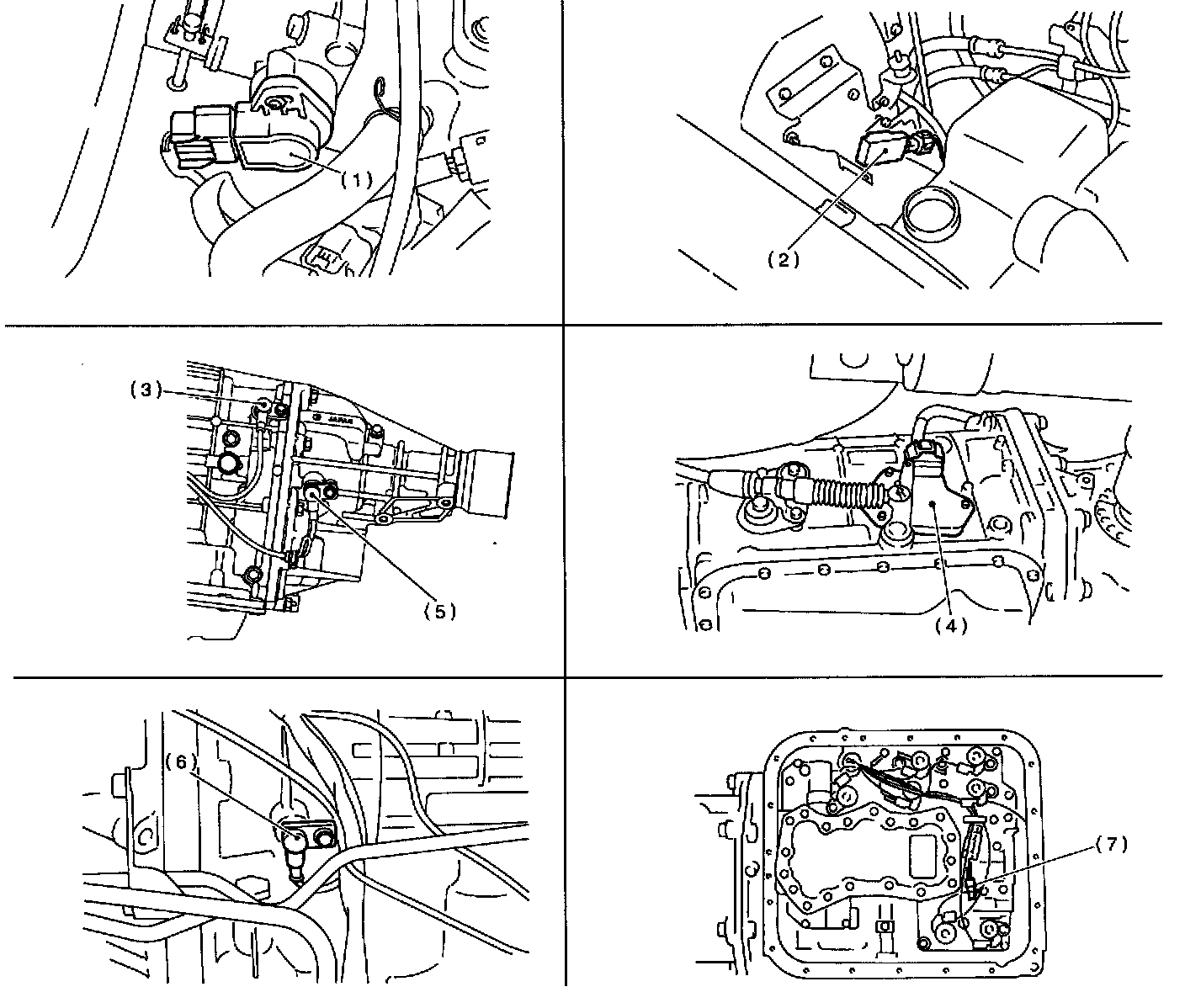

B: SENSOR

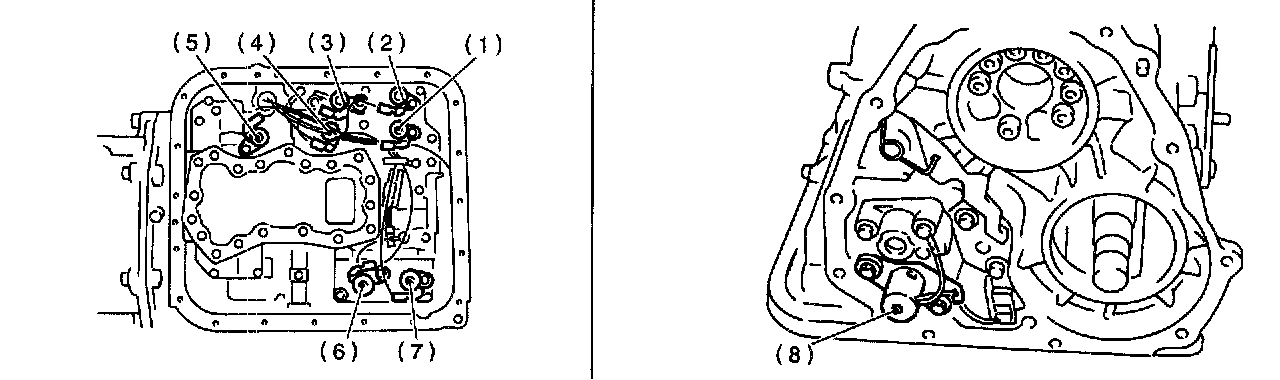

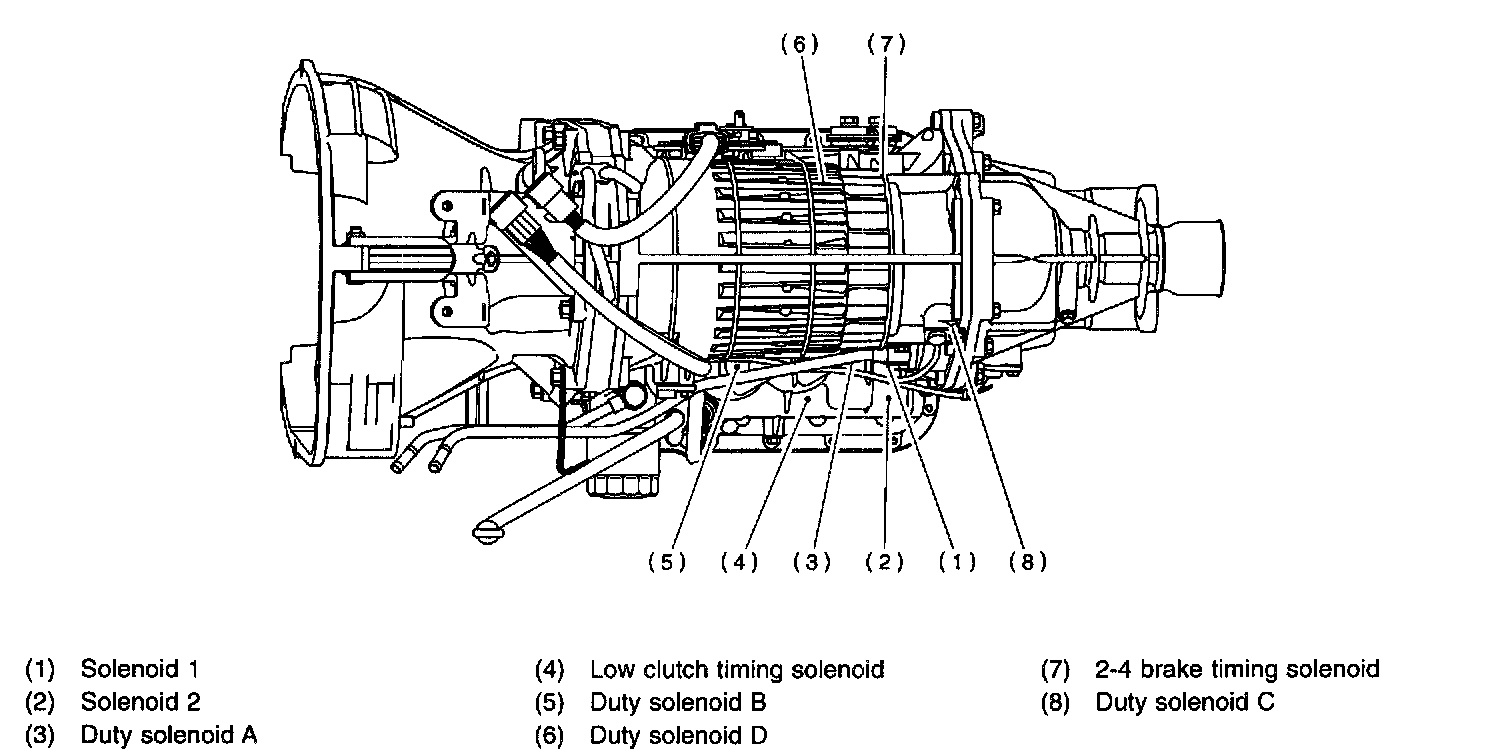

C: SOLENOID
