Main/Sub Fan Control

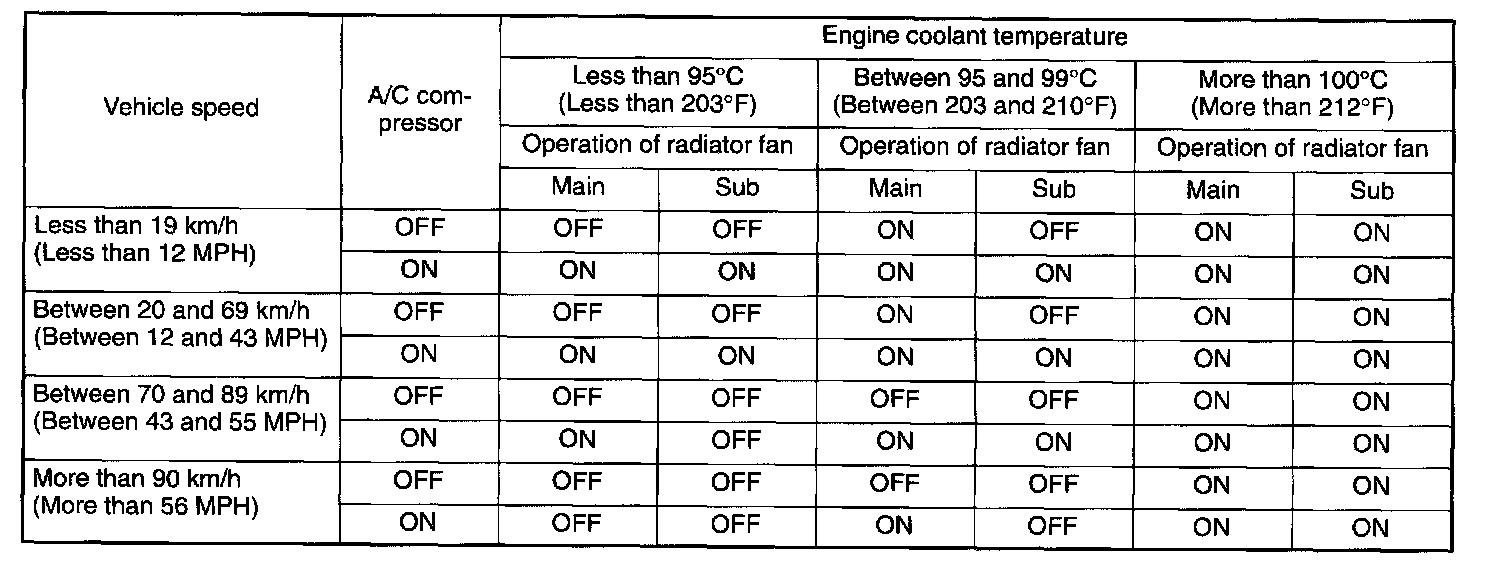

The main fan and sub fan are switch turn
ON
and
OFF
according to the operating modes shown in the table.
