A/T Technical Data

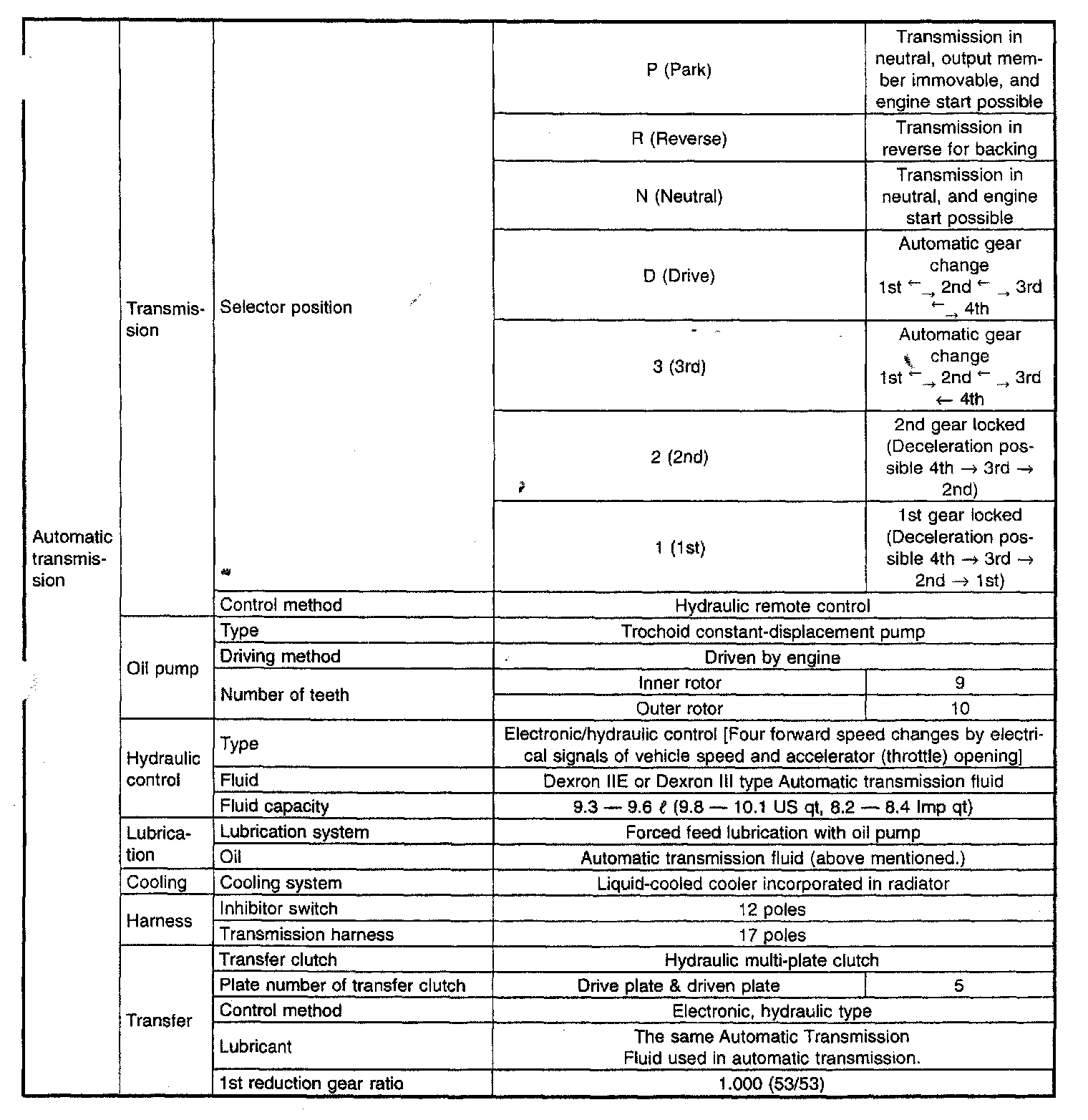

4-spd A/t, Transmission Service Data:

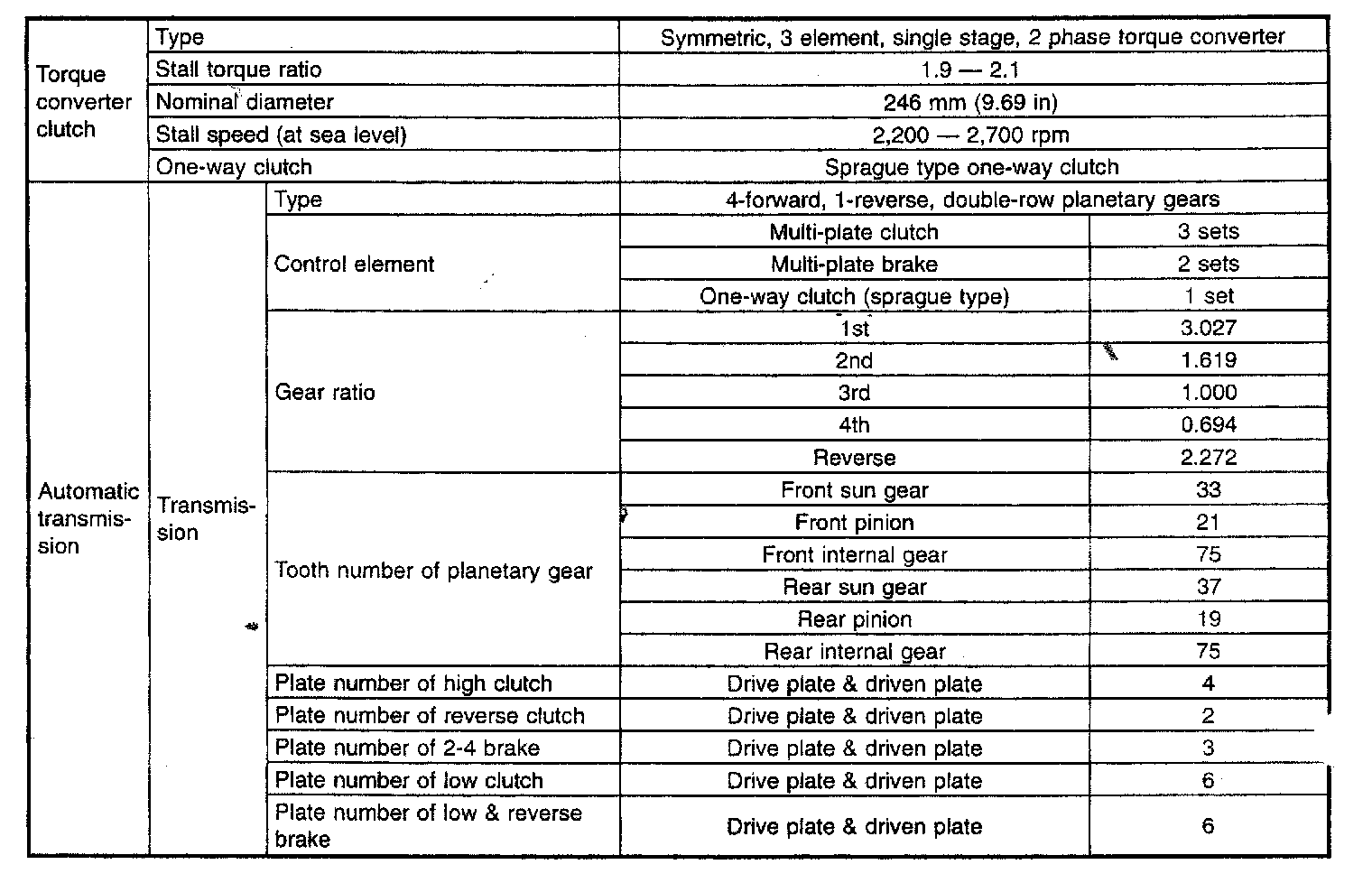

4-spd A/T, Transmission Service Data:





4-spd A/T, Transmission Dimension & Application:

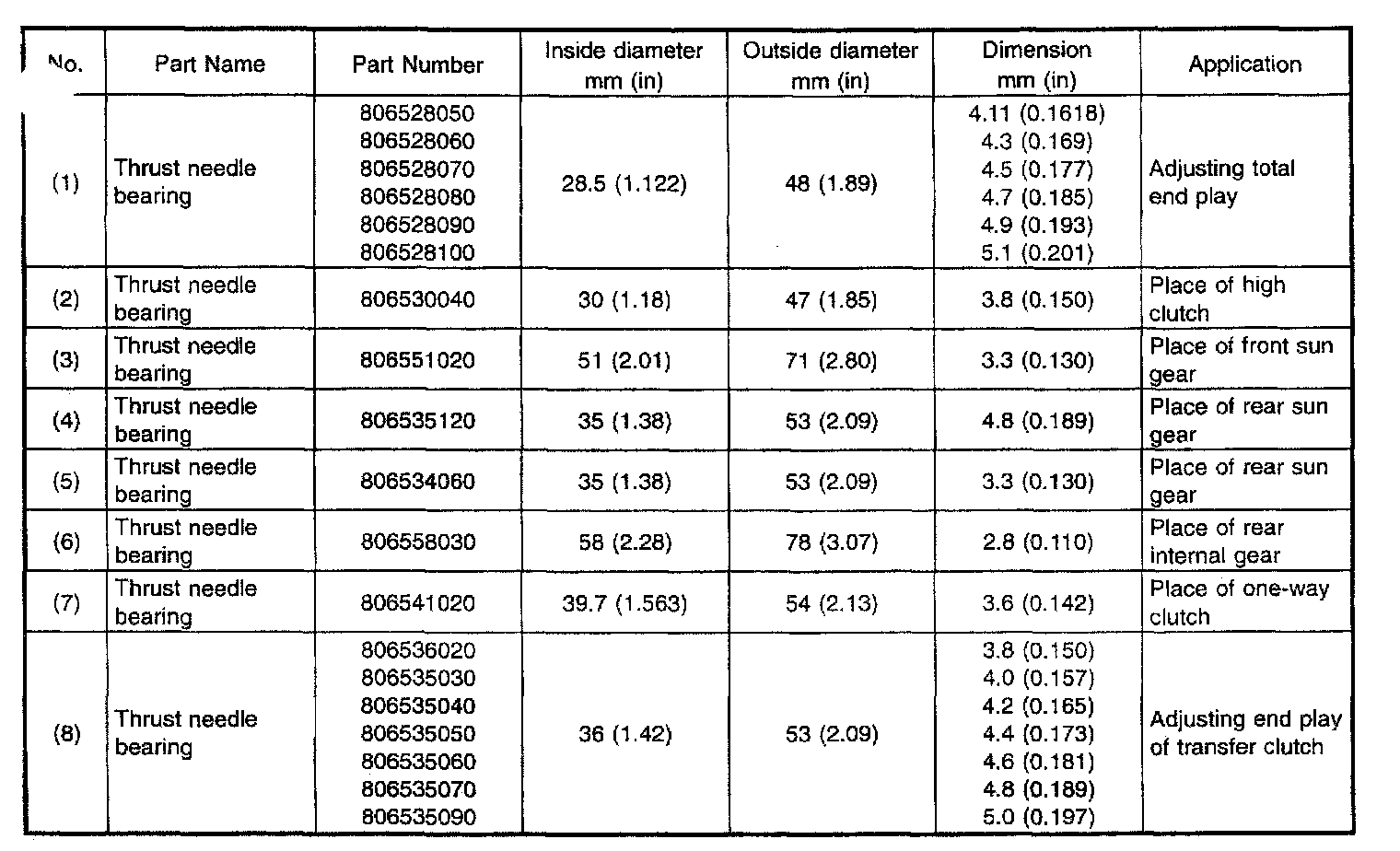

4-spd A/T, Transmission Drive Pinion Shim Application:

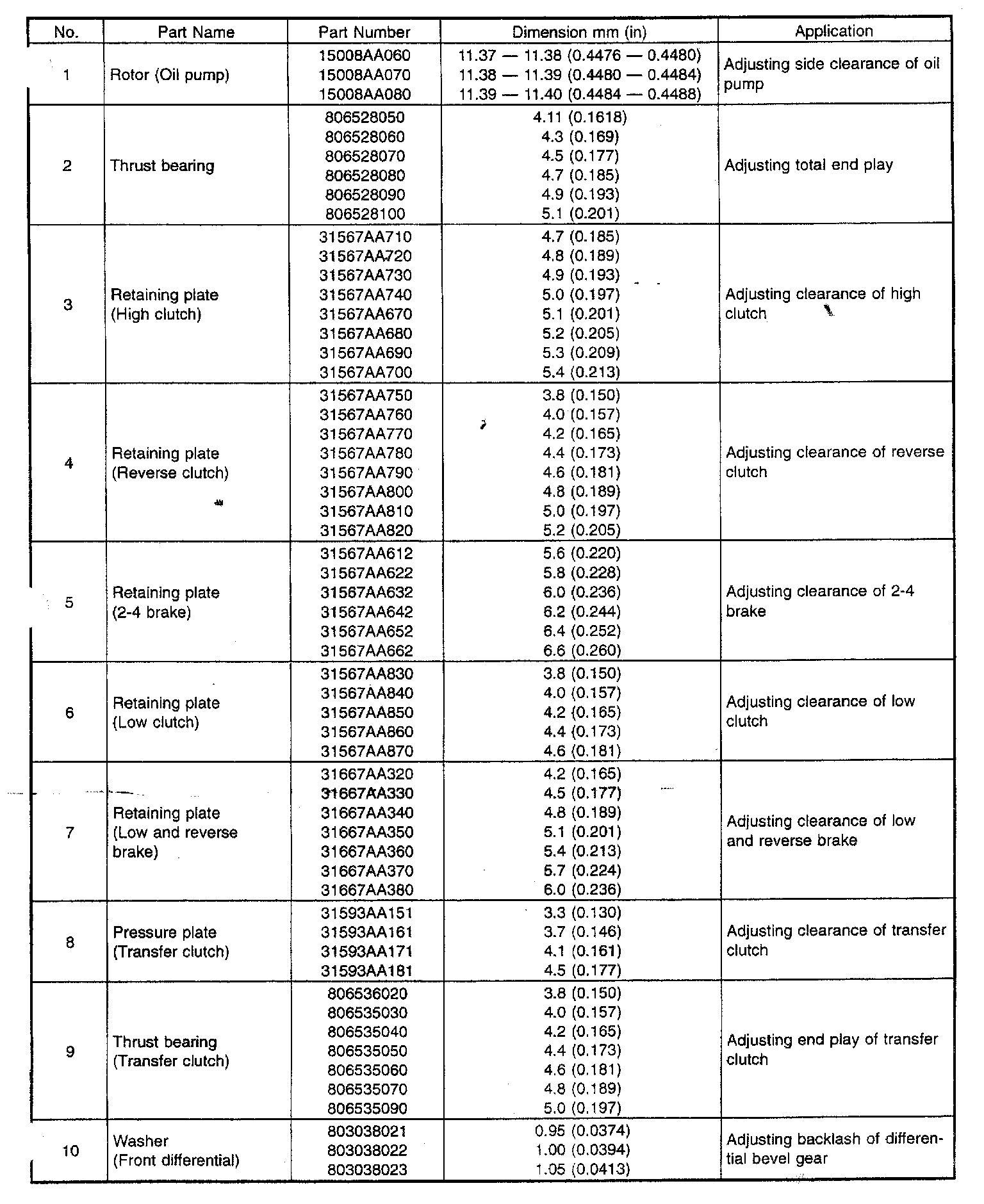

4-spd A/T, Transmission Dimension & Application:
