Subaru
>>
1998
>>
Legacy Outback Sport AWD F4-2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>

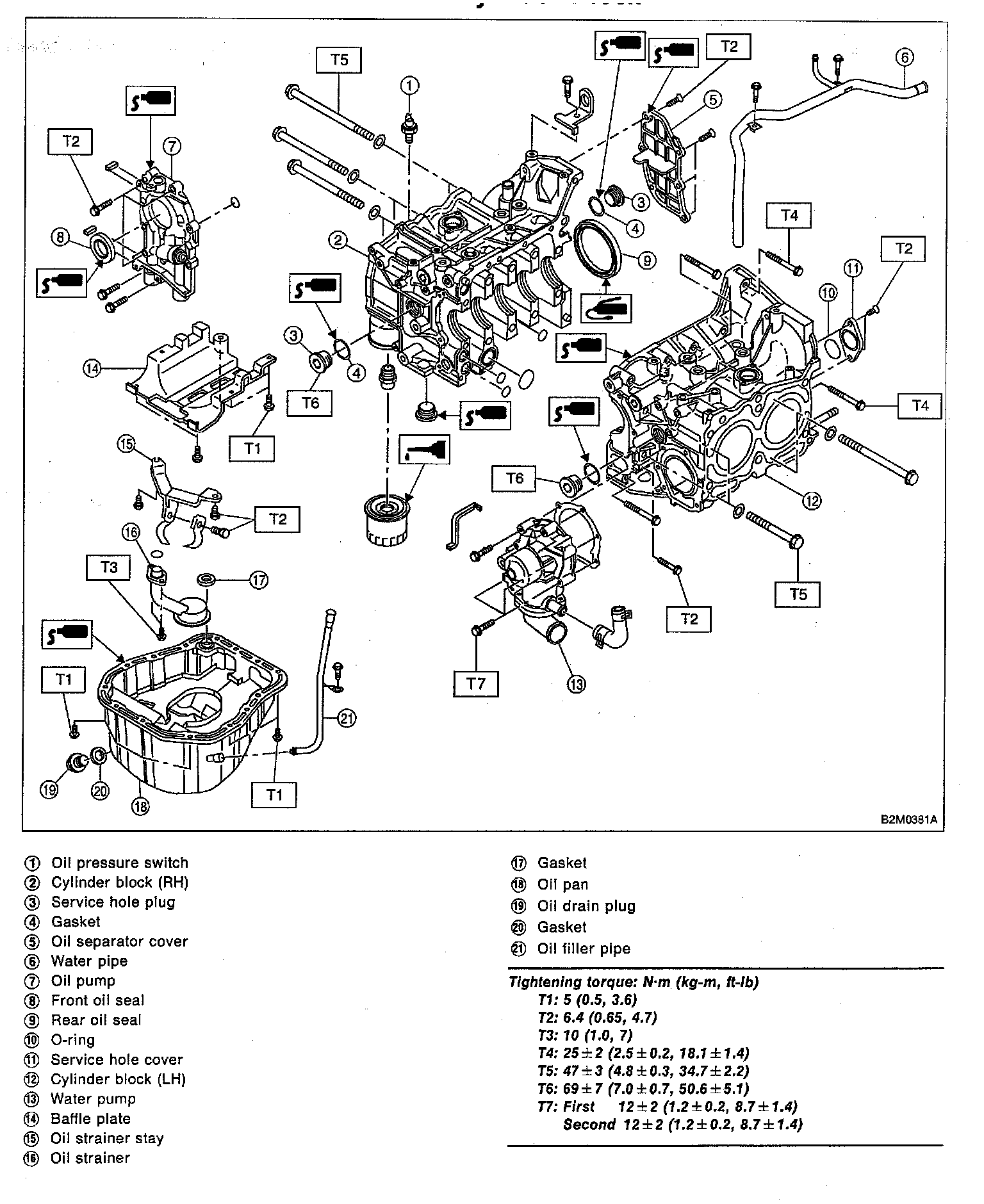

Exploded Views
>>
Cylinder Block Assembly
>>
System Diagram
System Diagram
