Subaru
>>
1998
>>
Legacy Outback AWD F4-2.5L DOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Differential Assembly
>>
Differential Technical Data
>>
AWD System
AWD System

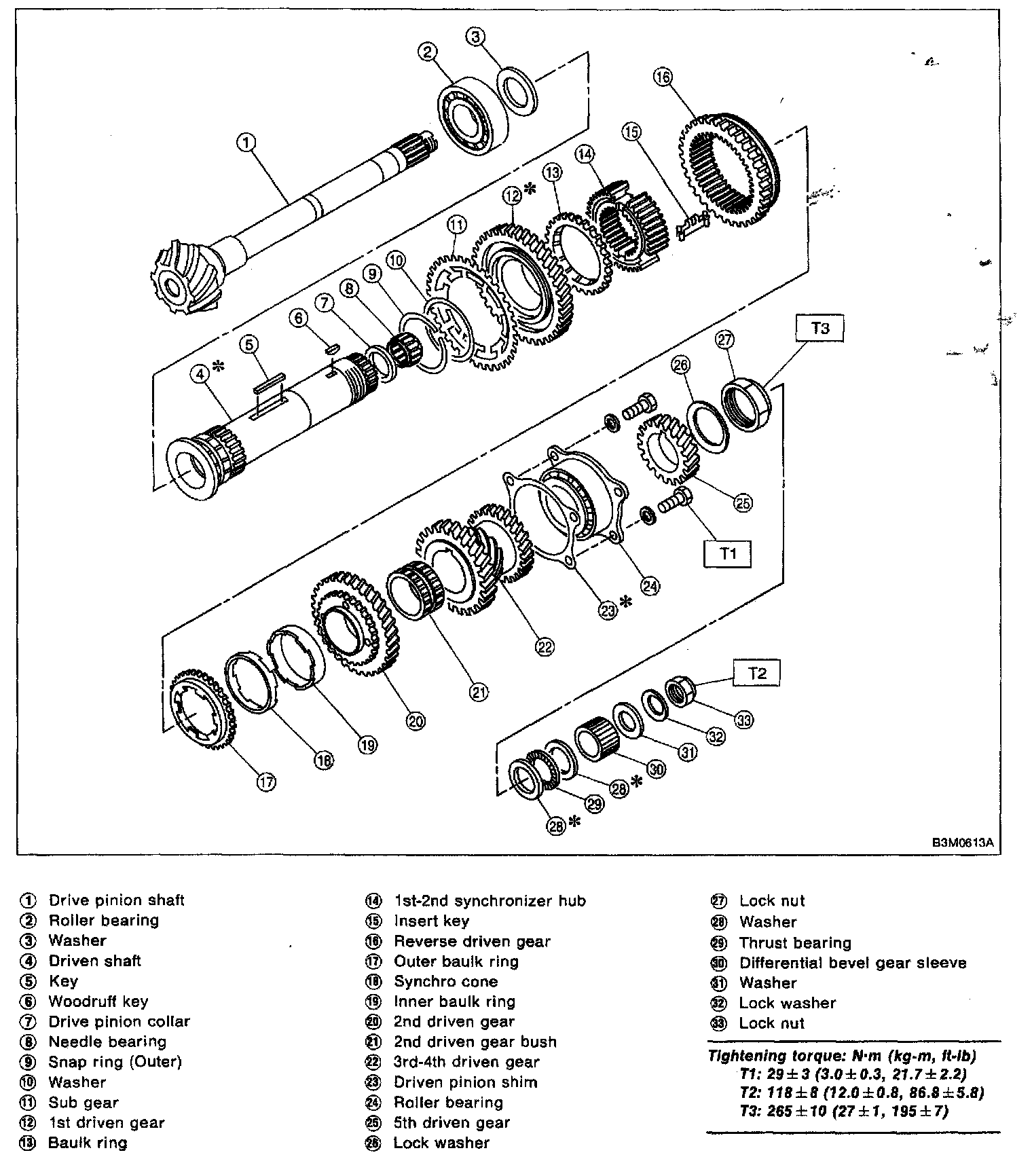

5-spd M/T, Drive Pinion Assembly (AWD):
