Home >> Subaru >> 1998 >> Forester S F4-2.5L DOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> A/T Technical Data >> Service

Service

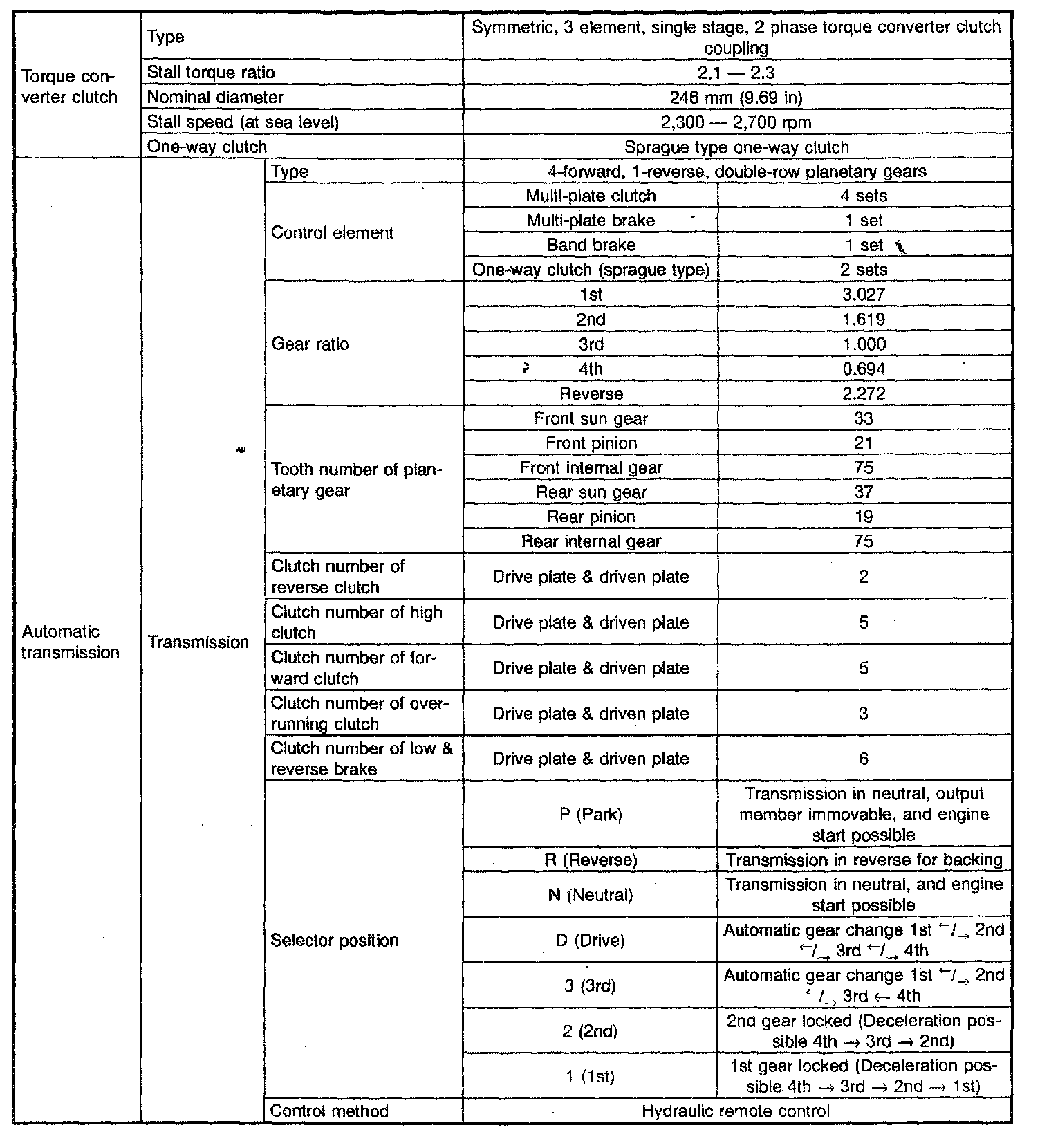

4-spd A/T, Transmission Service Data:

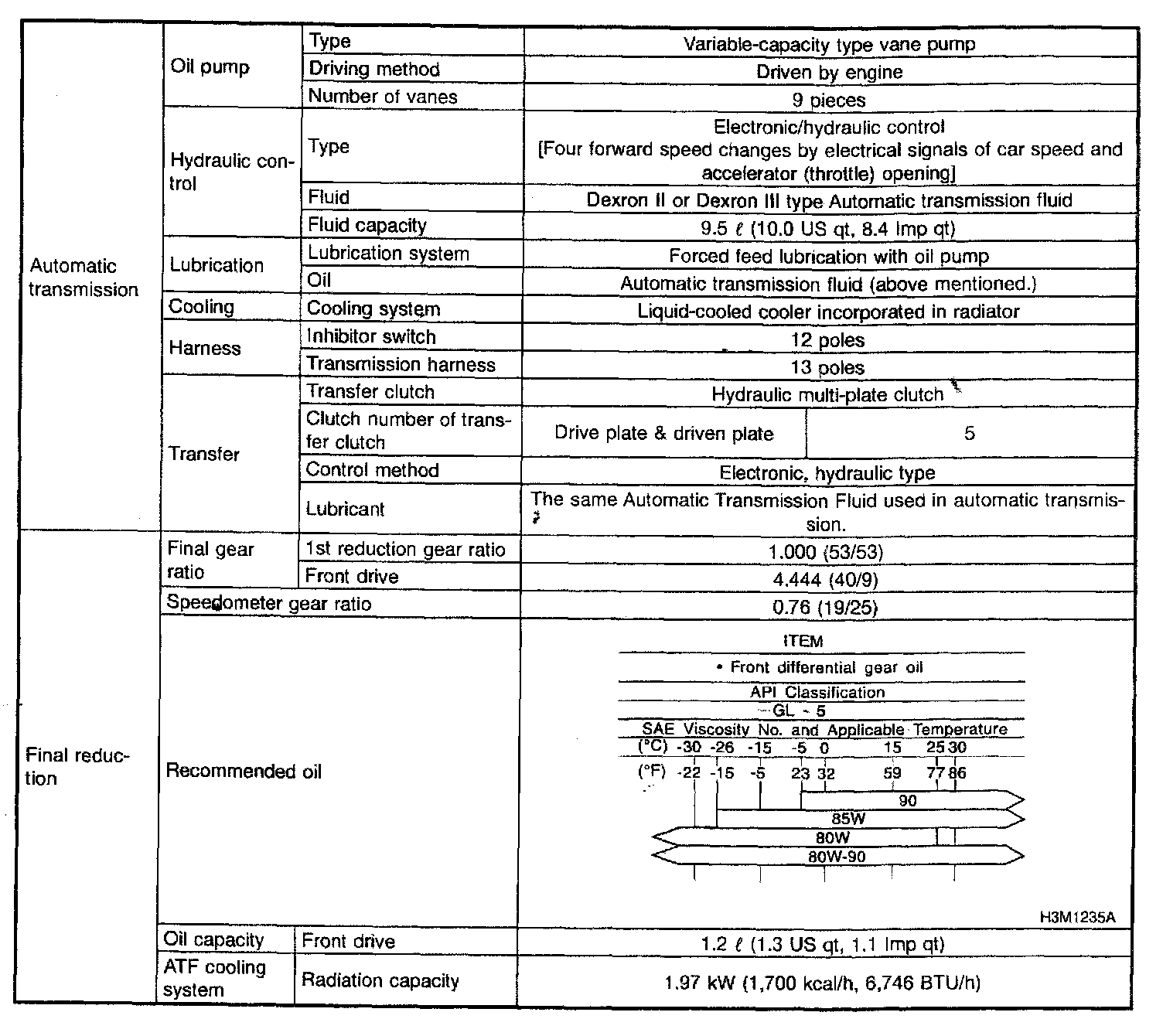

4-spd A/T, Transmission & Final Reduction Service Data:

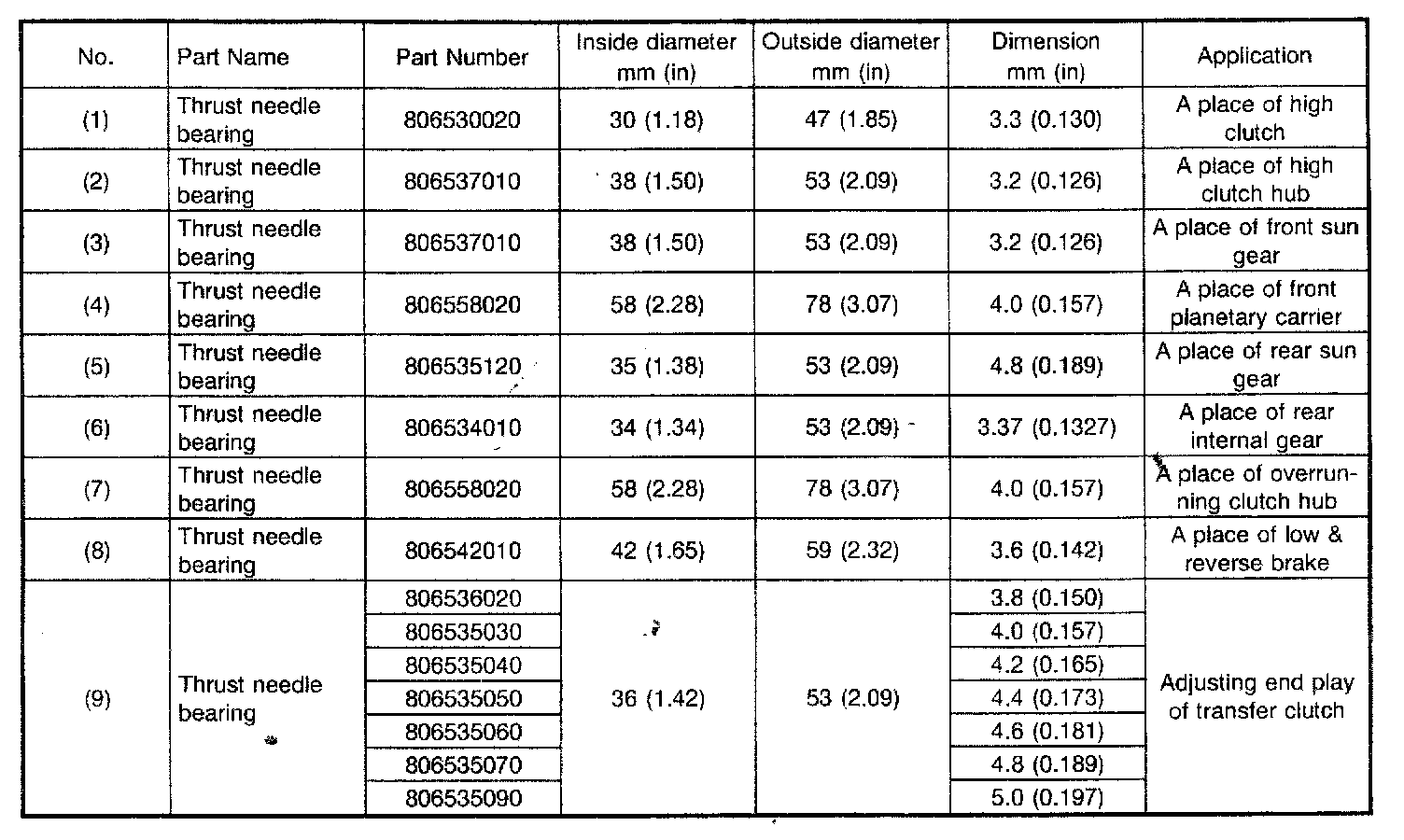

4-spd A/T, Transmission Dimension & Application:

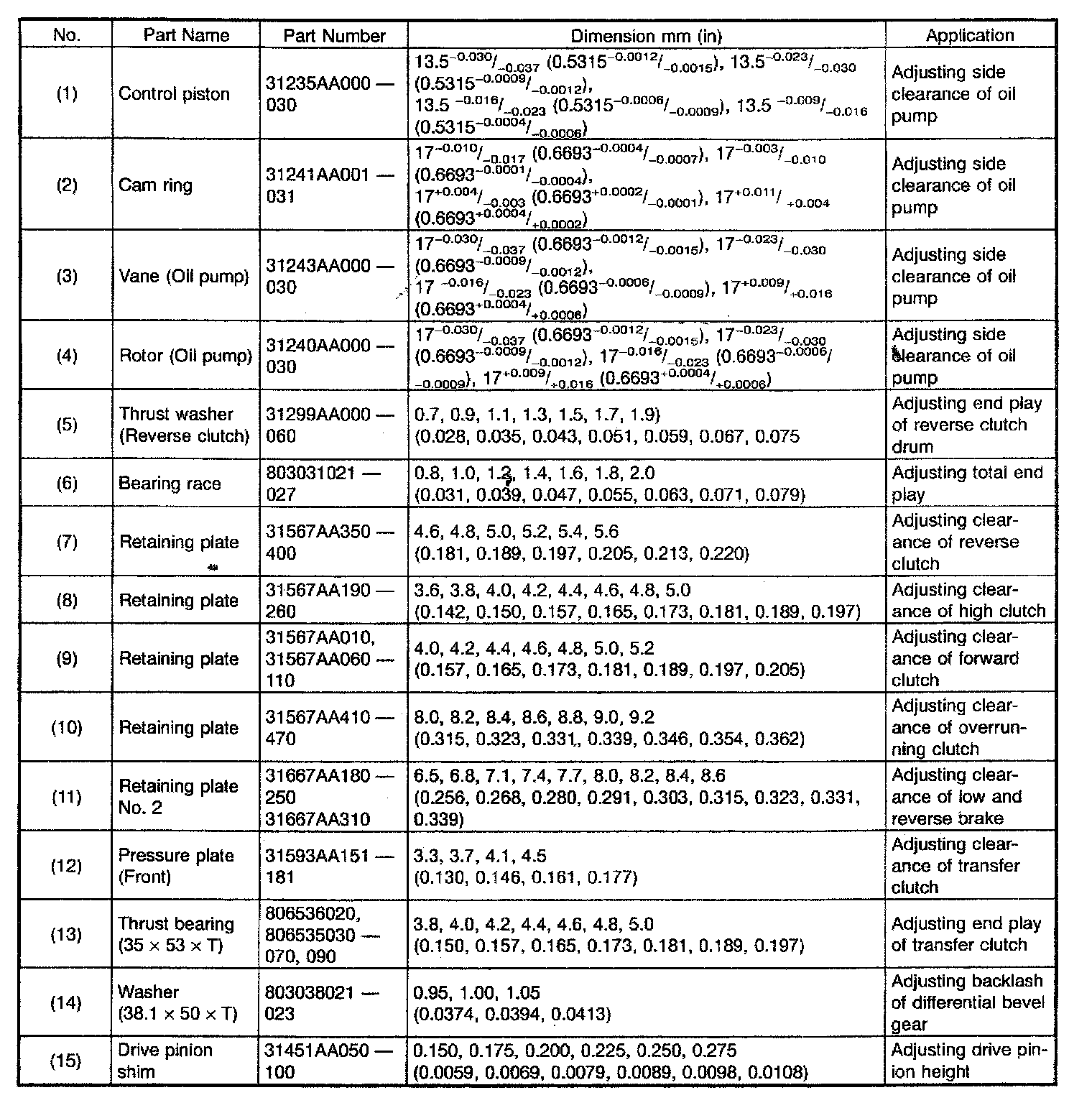

4-spd A/T, Transmission Dimension & Application:
