Home >> Subaru >> 1998 >> Forester S F4-2.5L DOHC >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Locations

Transmission Control Systems: Locations

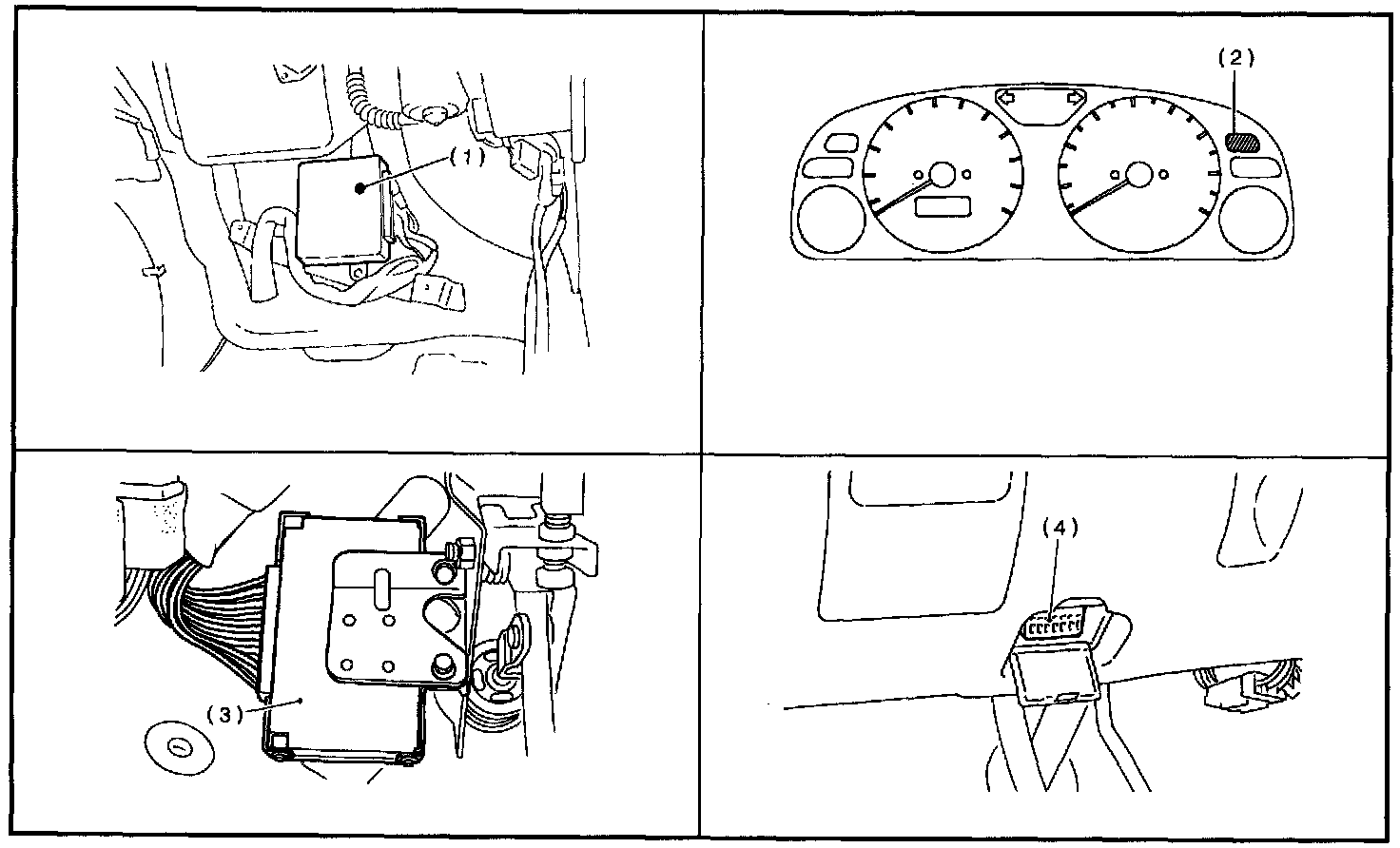

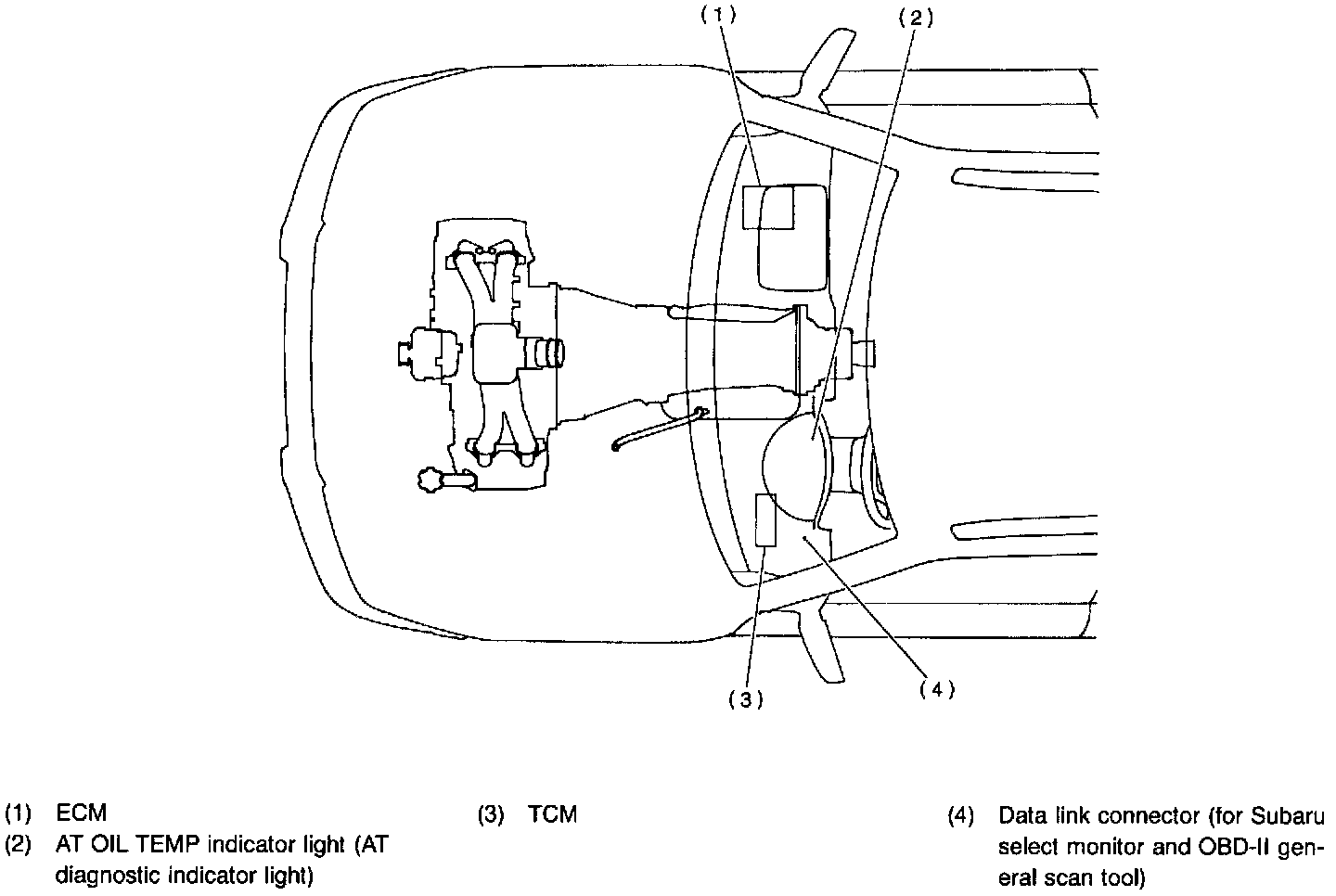

A: MODULES

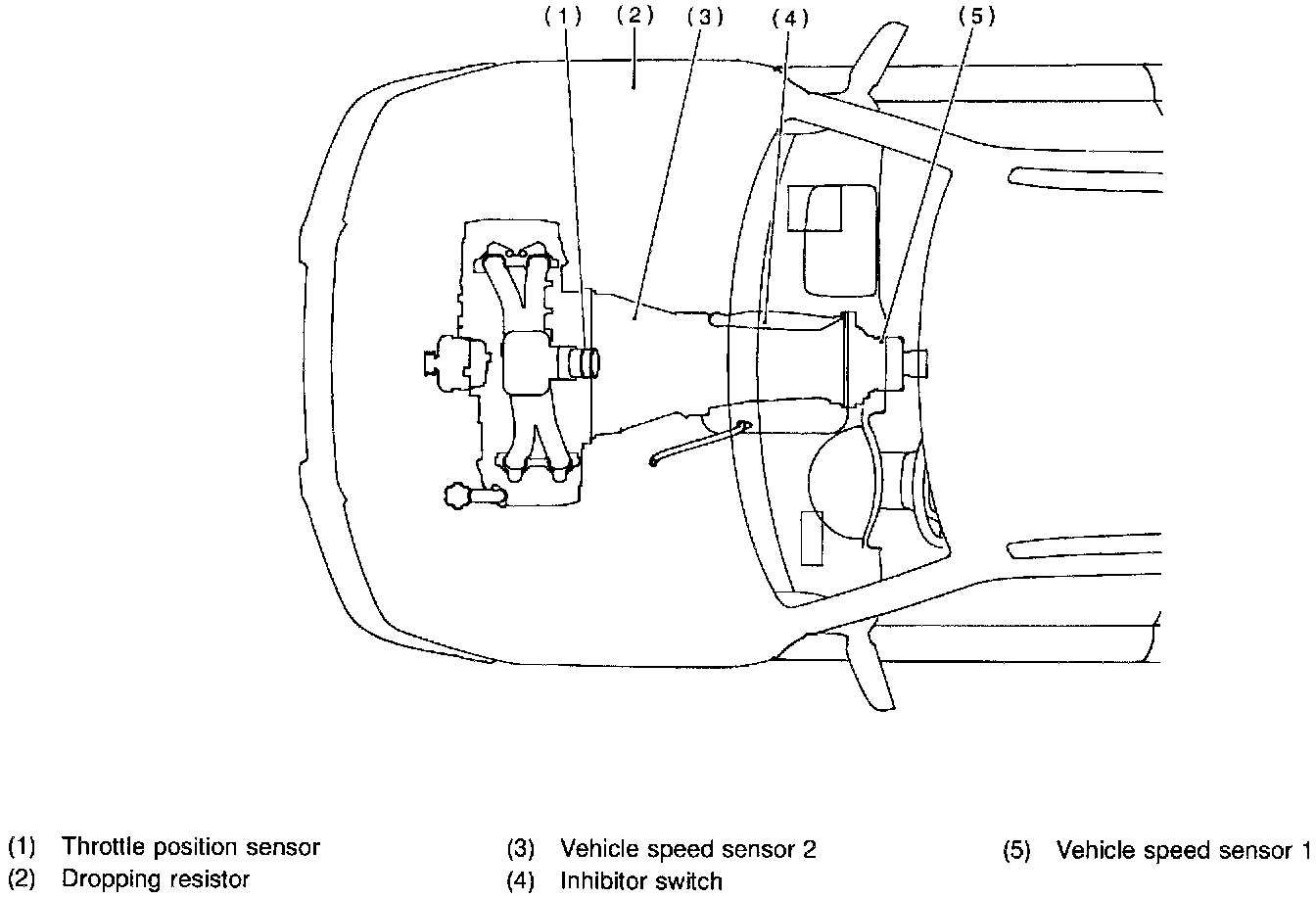

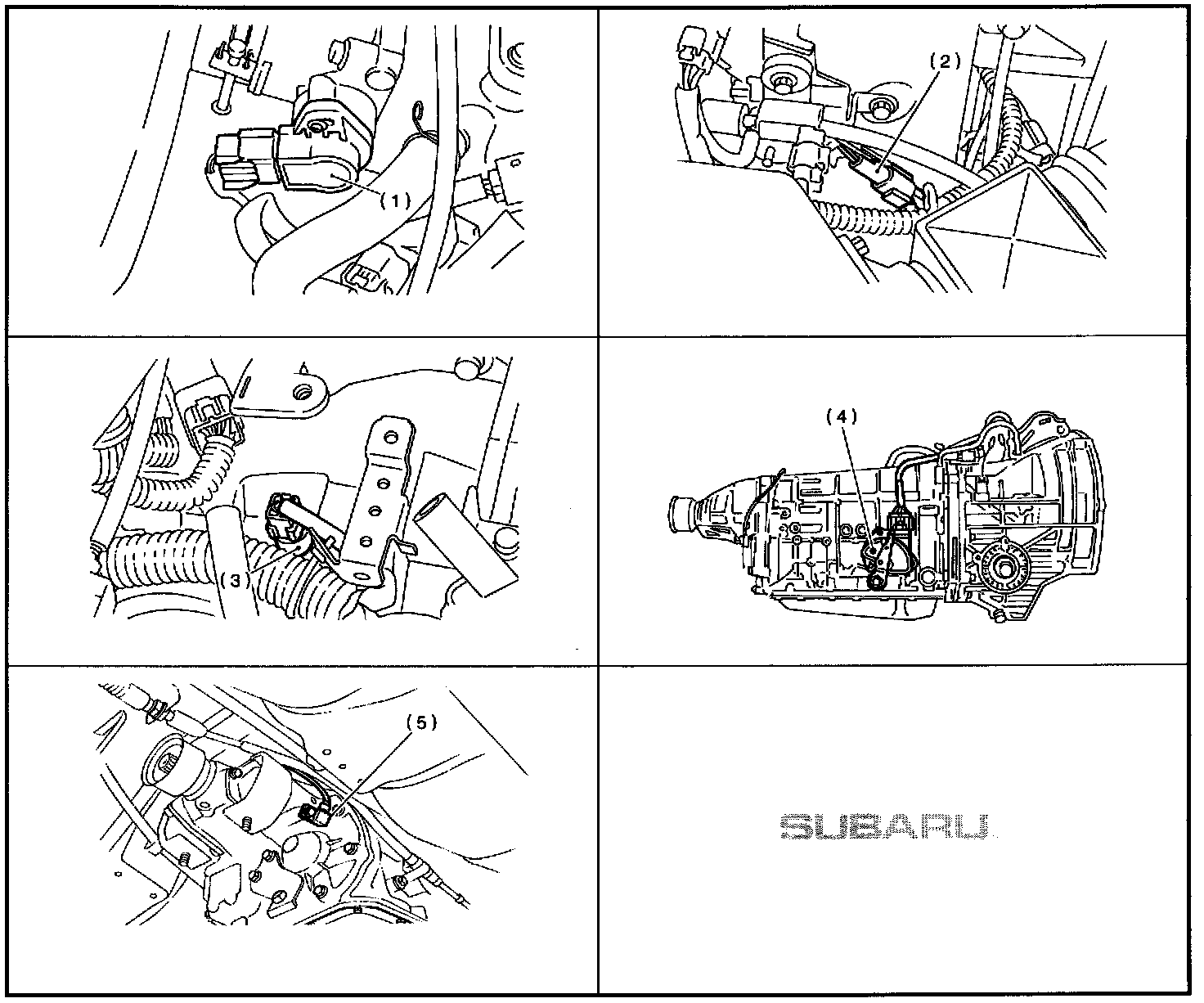

B: SENSORS

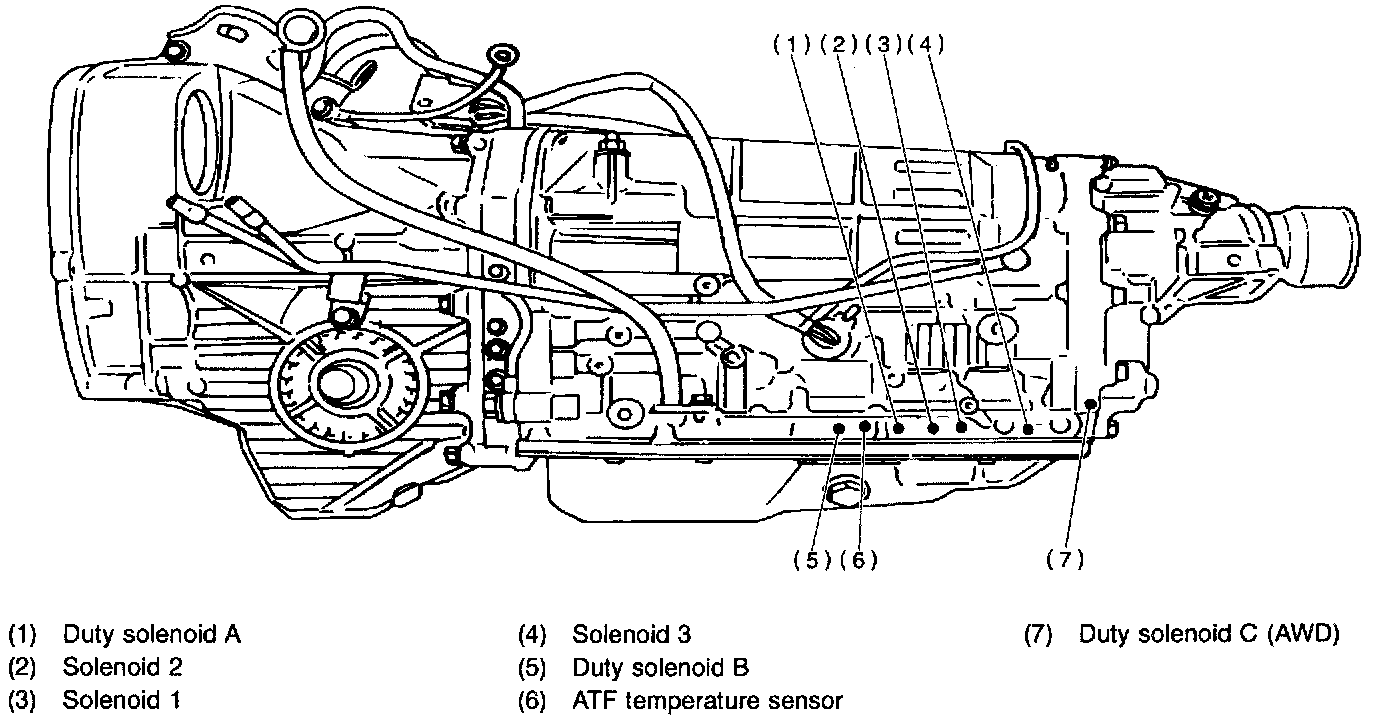

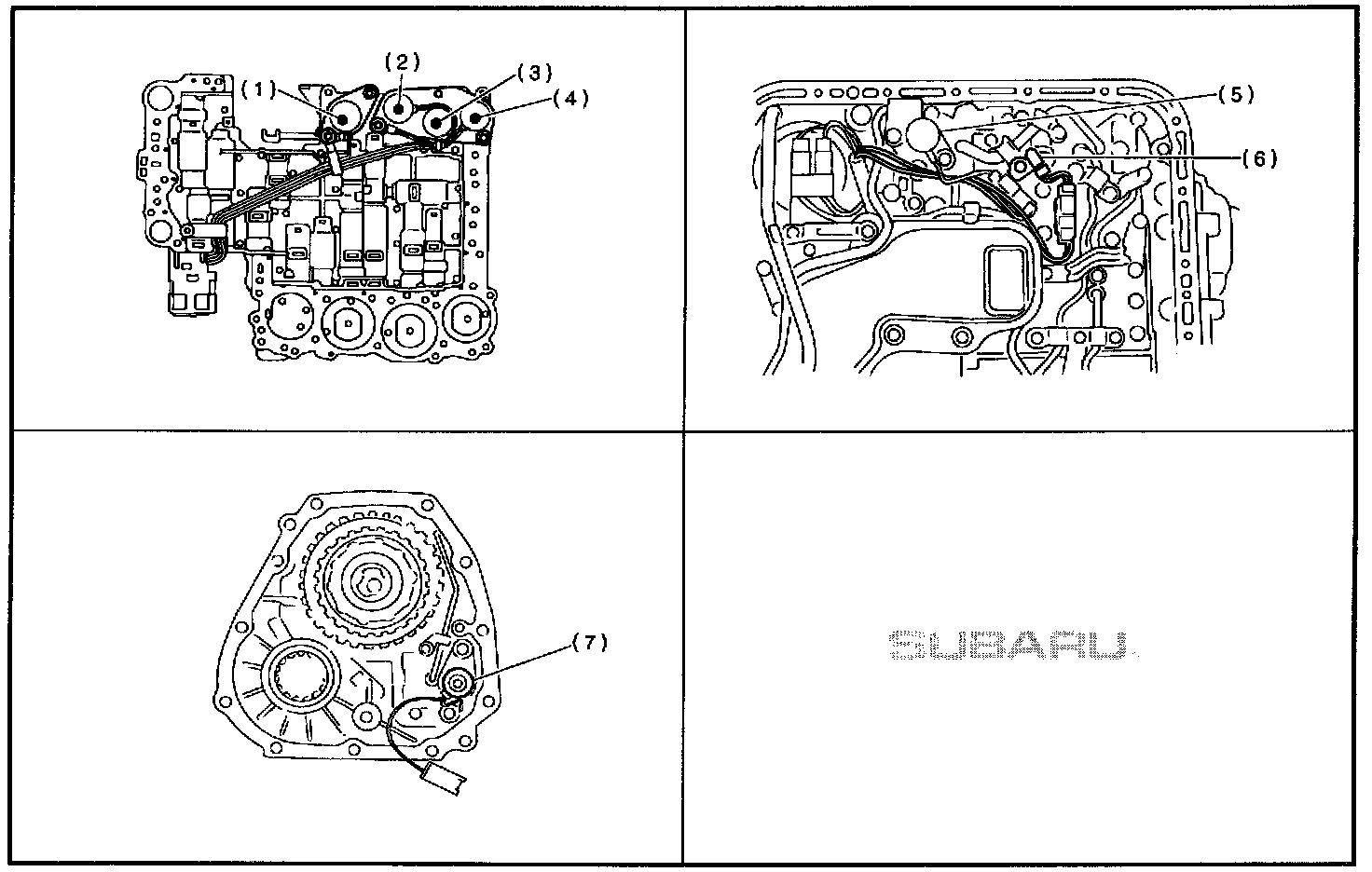

C: SOLENOIDS
