Connector Views

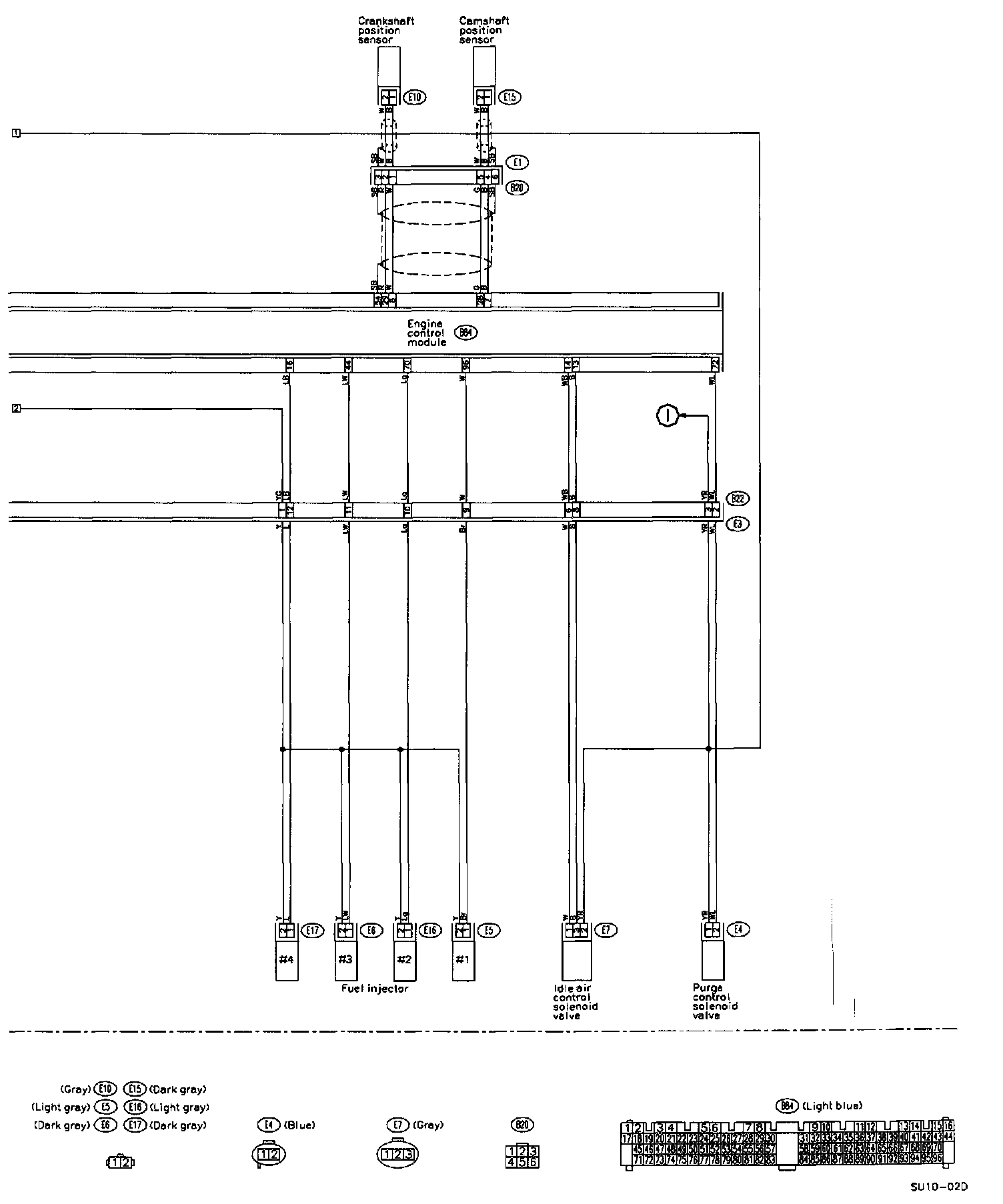

Engine Electrical System Circuit 1:

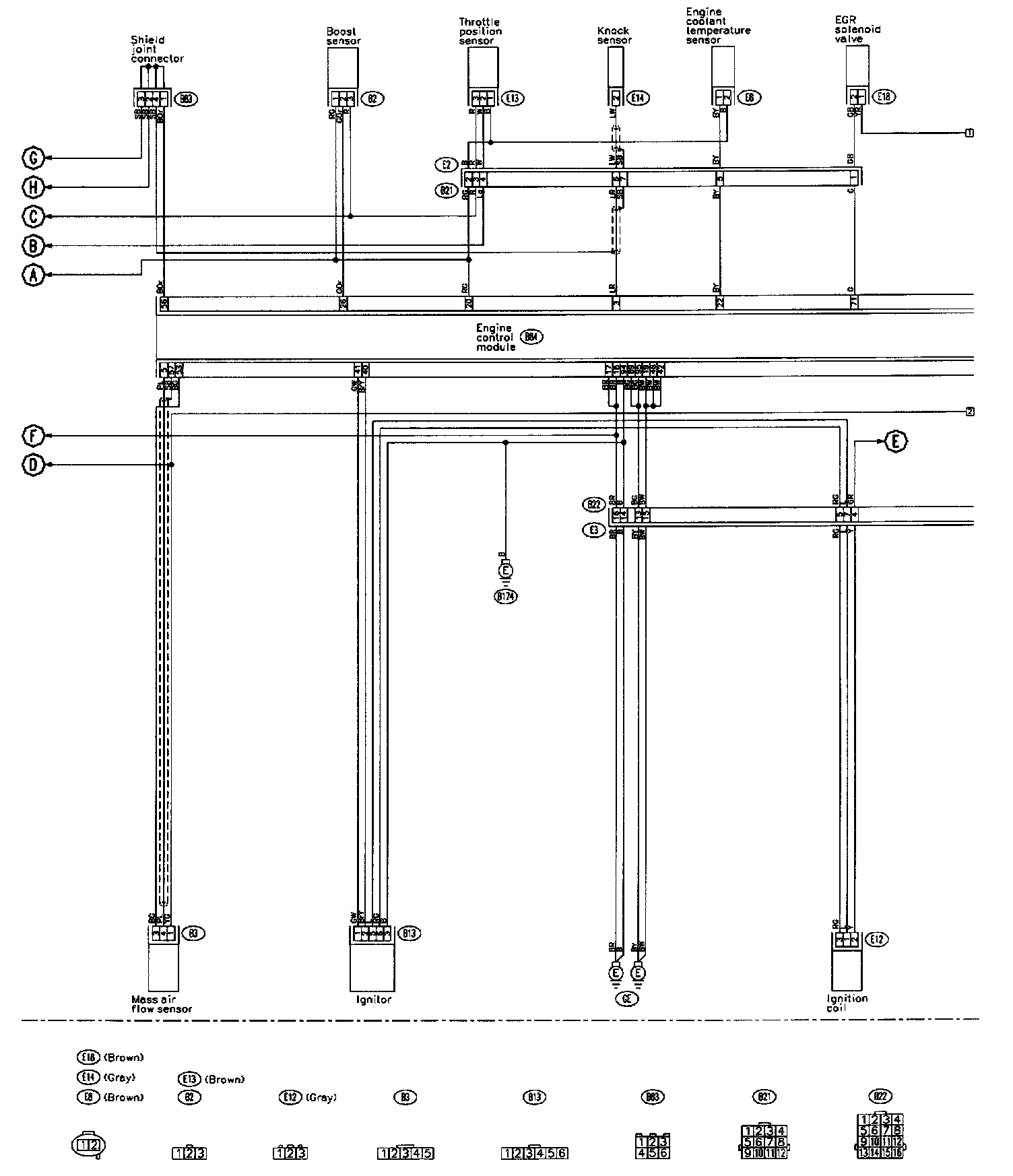

Engine Electrical System Circuit 2:

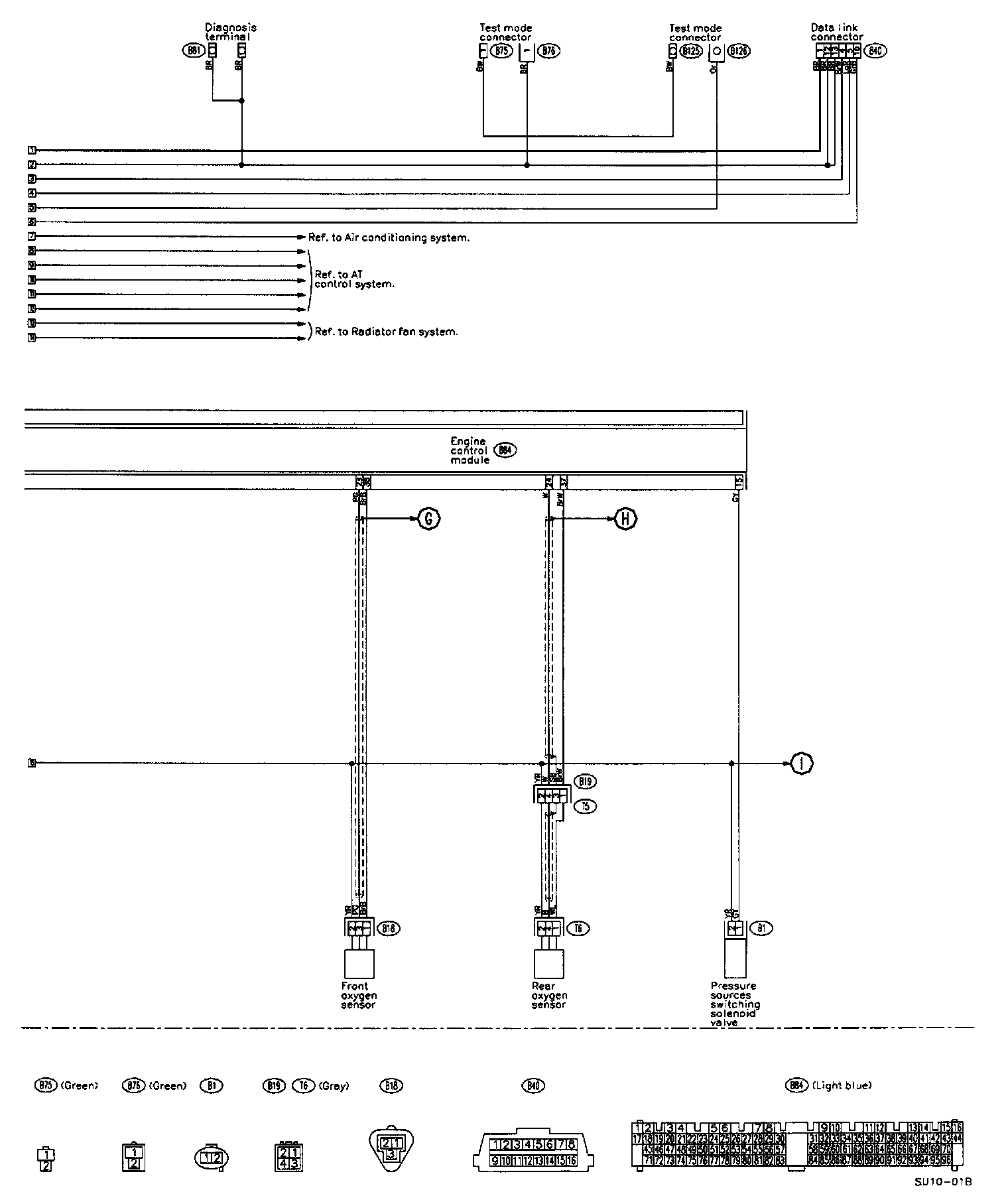

Engine Electrical System Circuit 3:

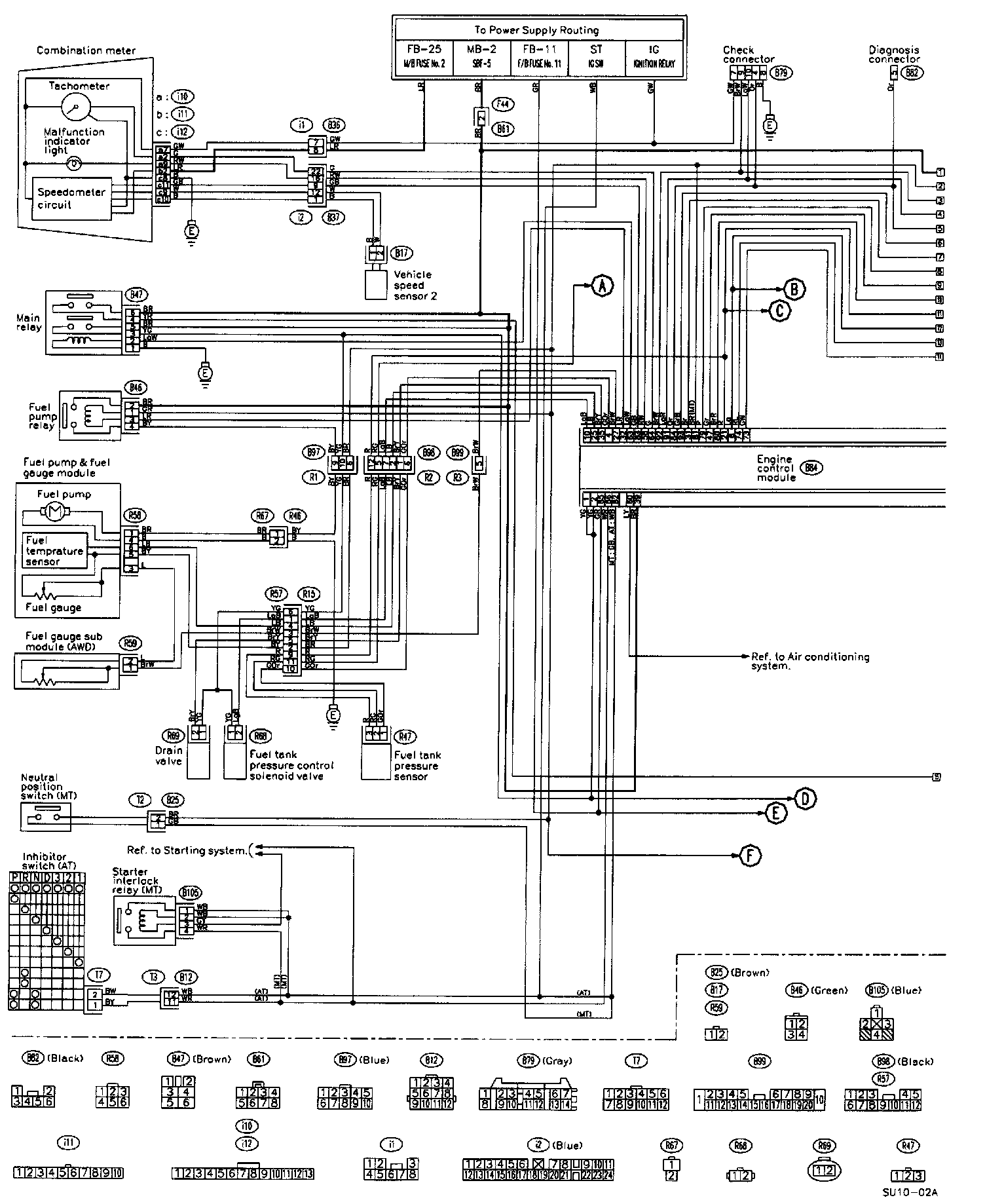

Engine Electrical System Circuit 4:
