Home >> Subaru >> 1998 >> Forester AWD F4-2.5L DOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Case, A/T

Case, A/T

Part 1 Of 2:




Part 2 Of 2:

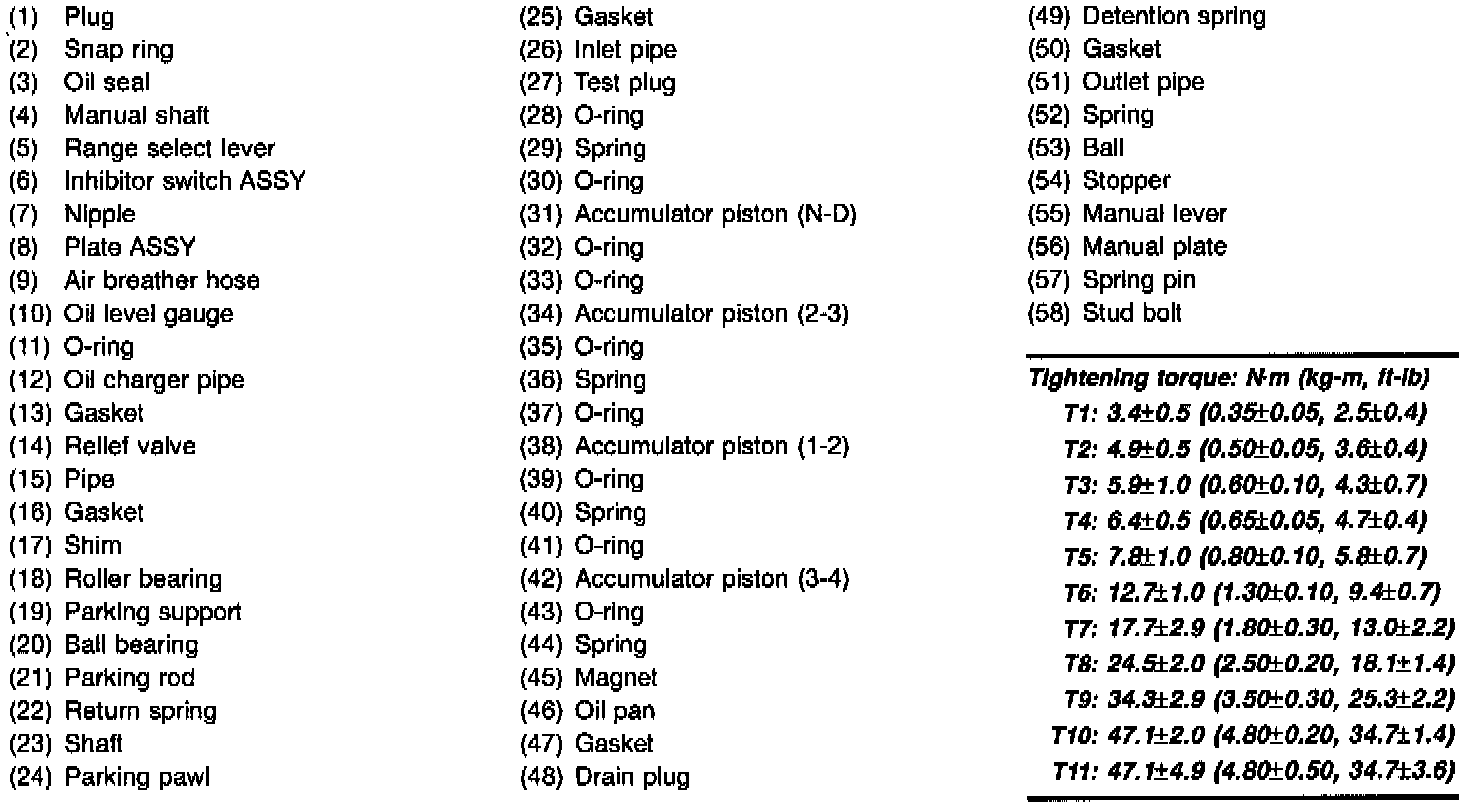

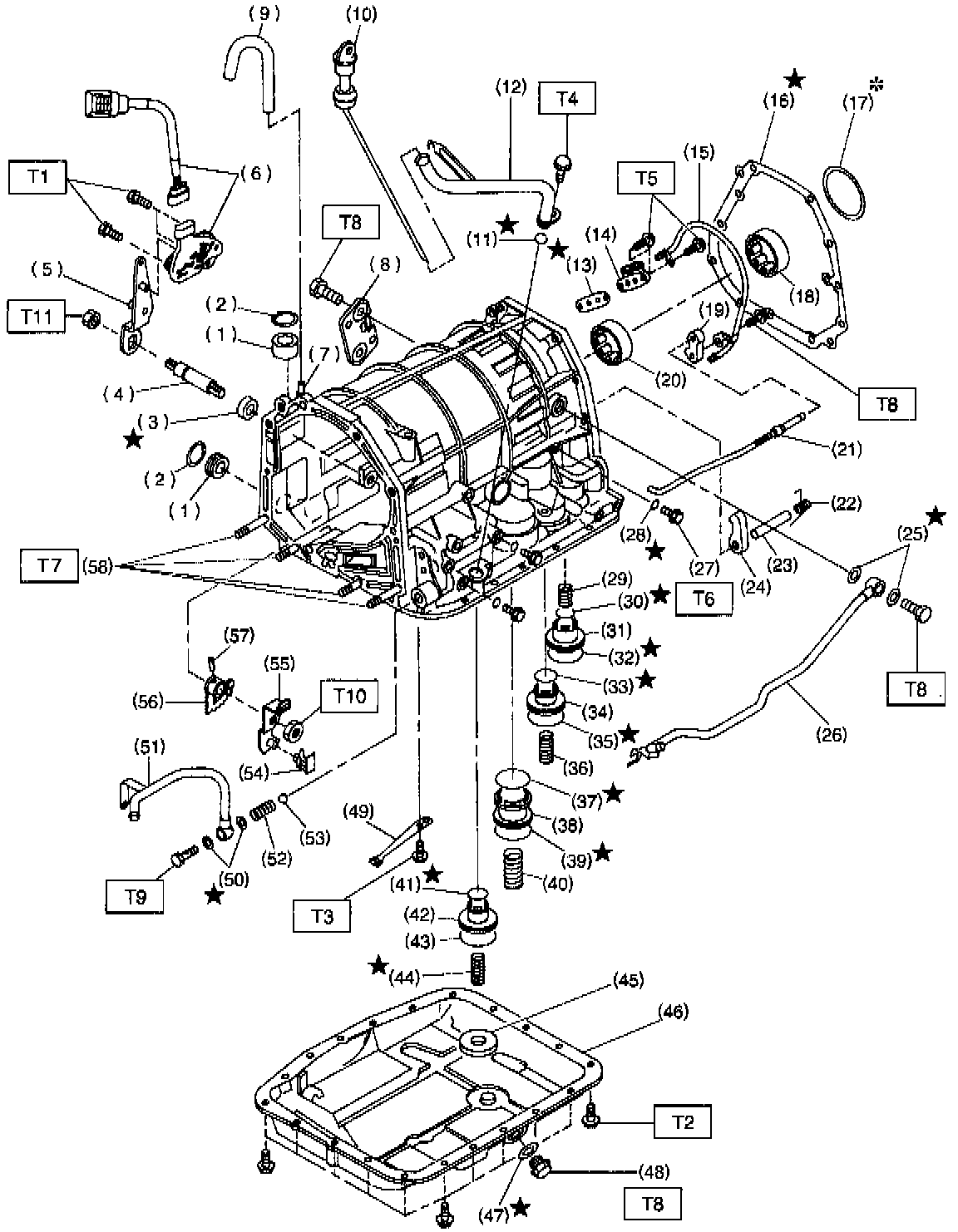

TRANSMISSION CASE, TRANSMISSION COVER AND CONTROL DEVISE
