System Diagram

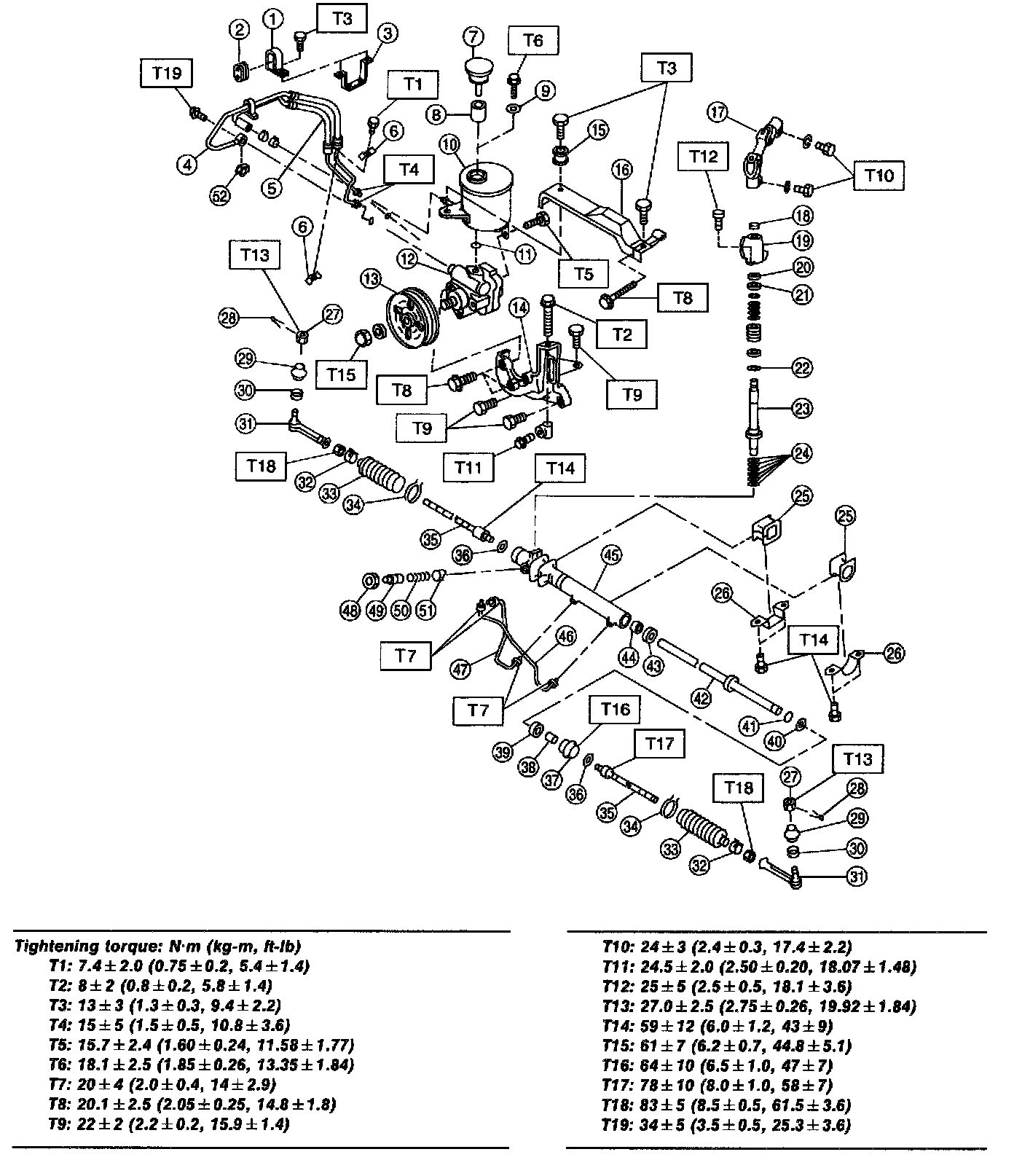

Part 1 Of 2 - LHD Model:

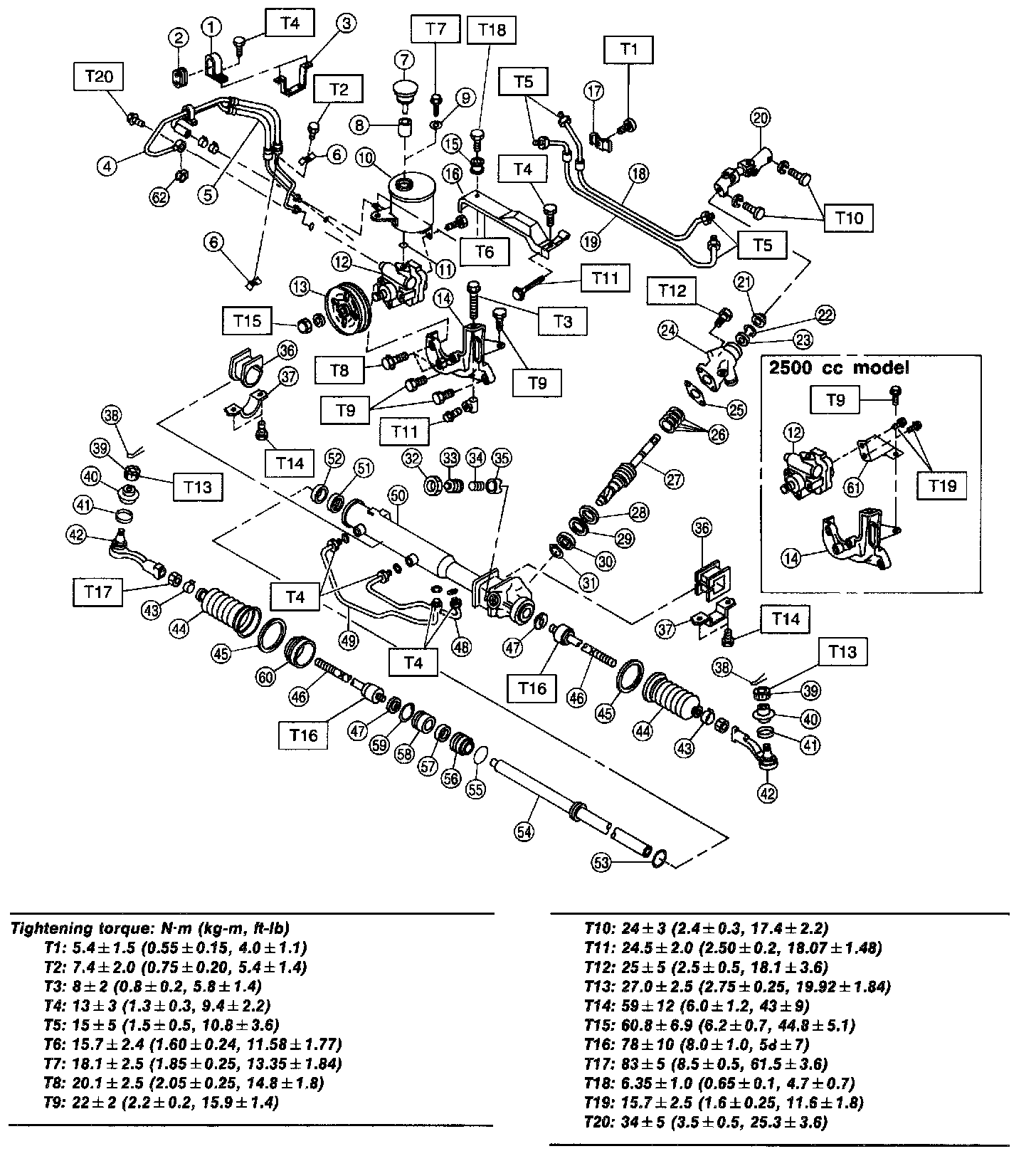

Part 2 Of 2 - LHD Model:

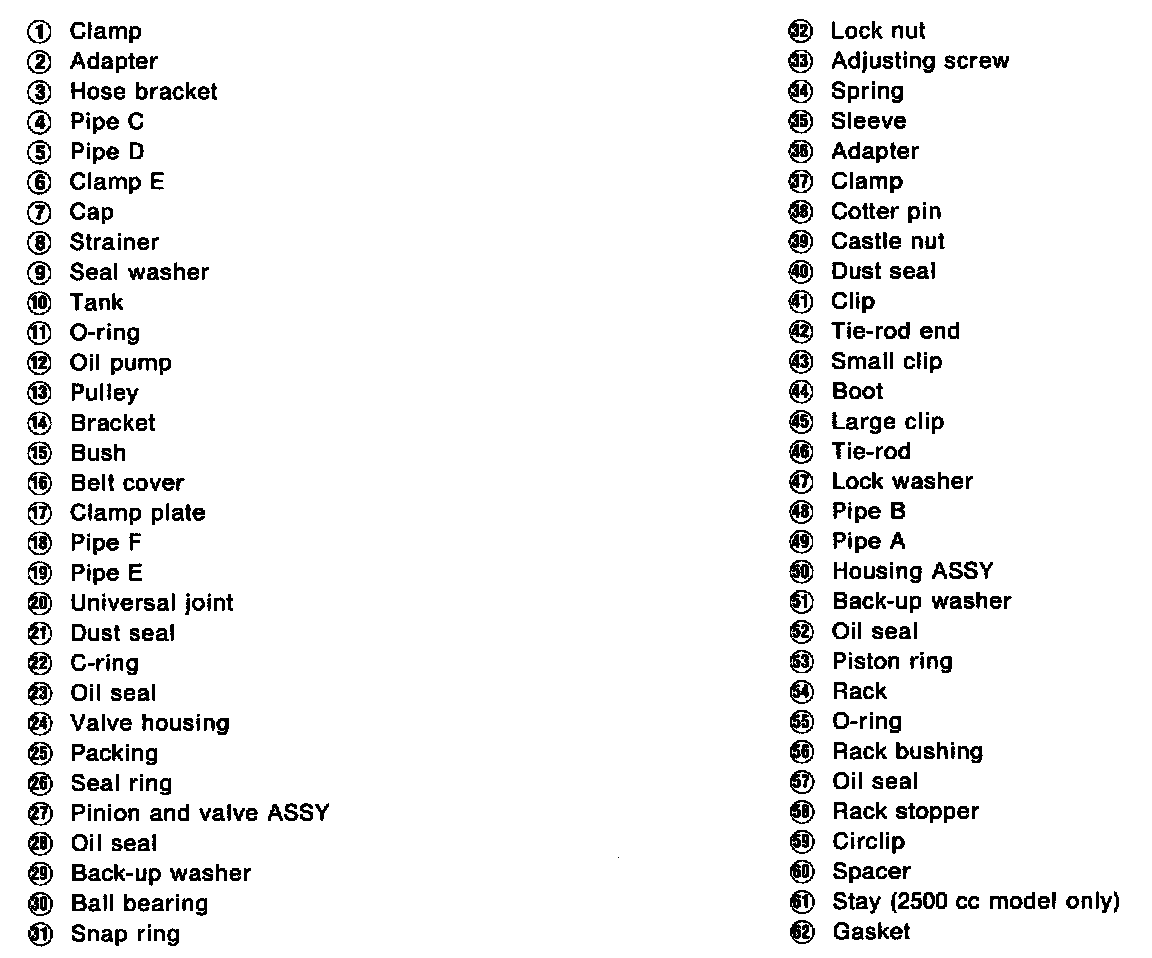

Part 1 Of 2 - RHD Model:

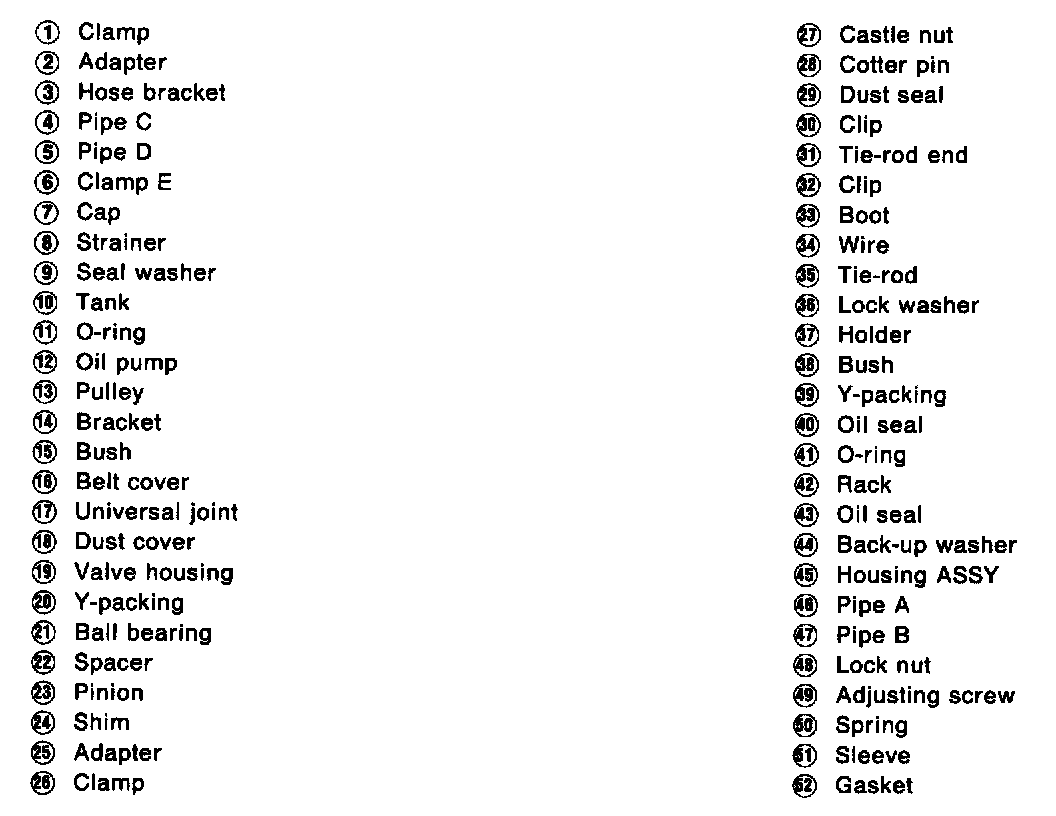

Part 2 Of 2 - RHD Model:
