Home >> Subaru >> 1997 >> Legacy L Sedan AWD F4-2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Case, A/T

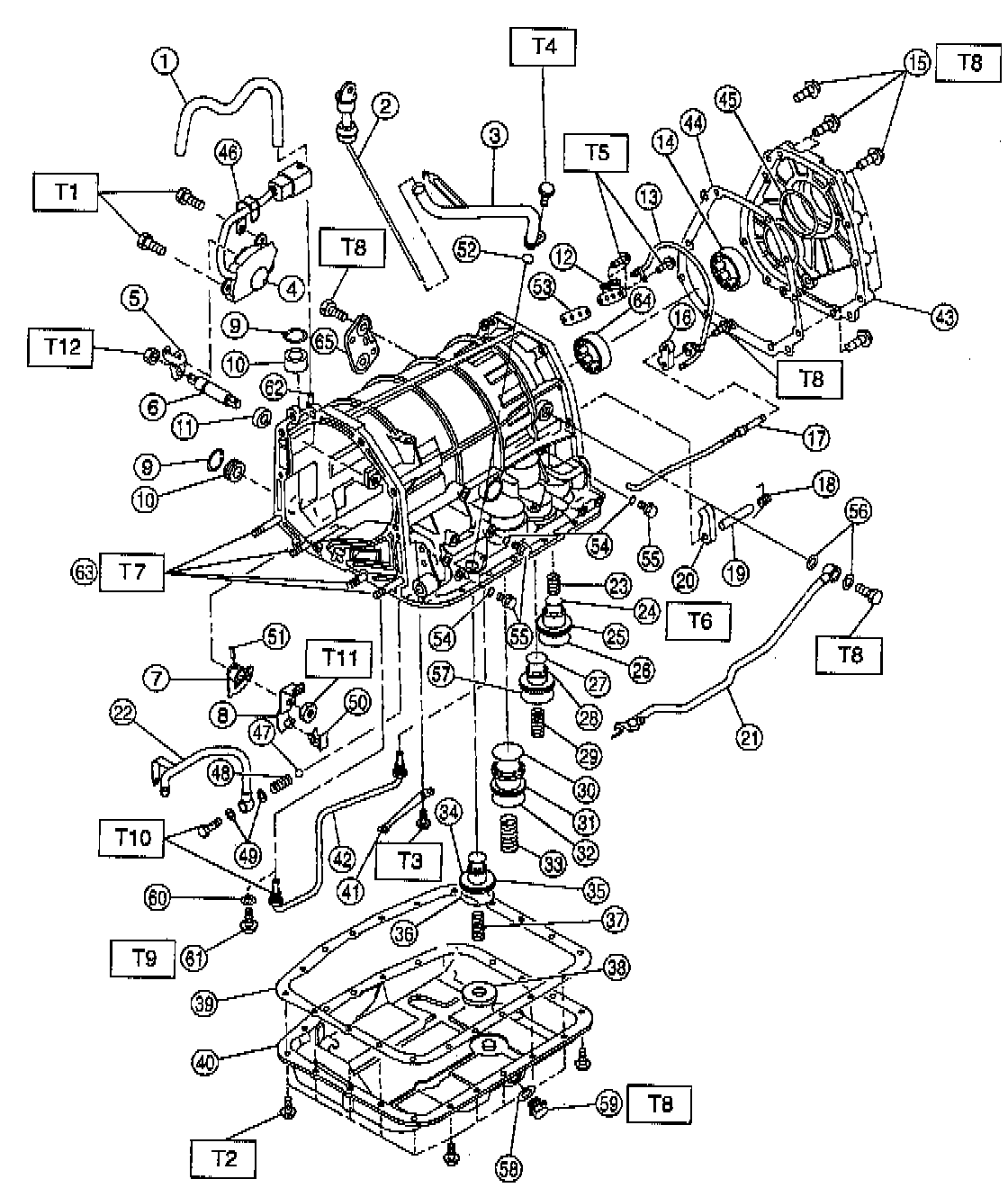

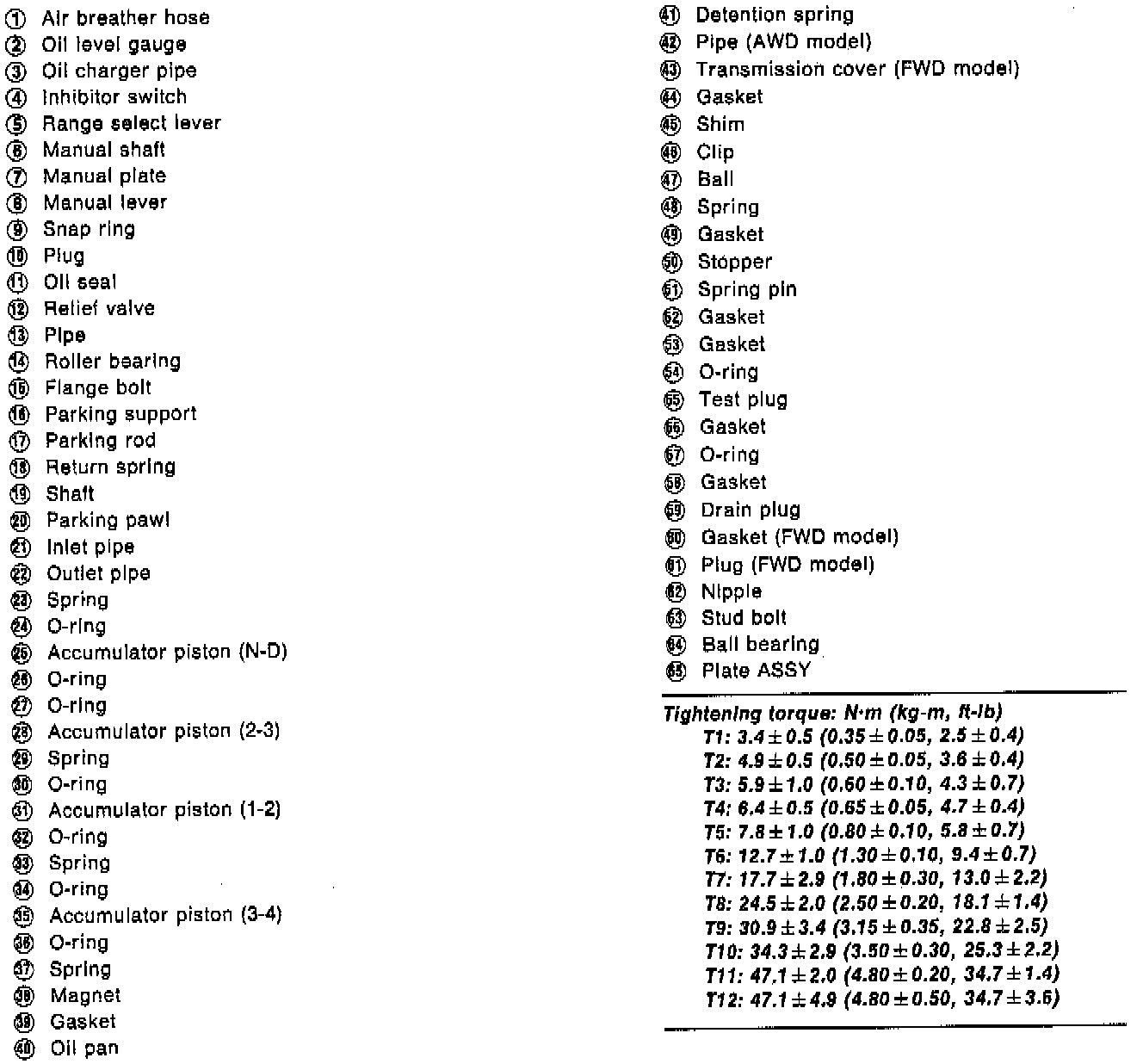

Case, A/T

Part 1 Of 2:



Part 2 Of 2:
