Home >> Subaru >> 1996 >> SVX AWD L6-3.3L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Air Flow Meter/Sensor >> Diagrams

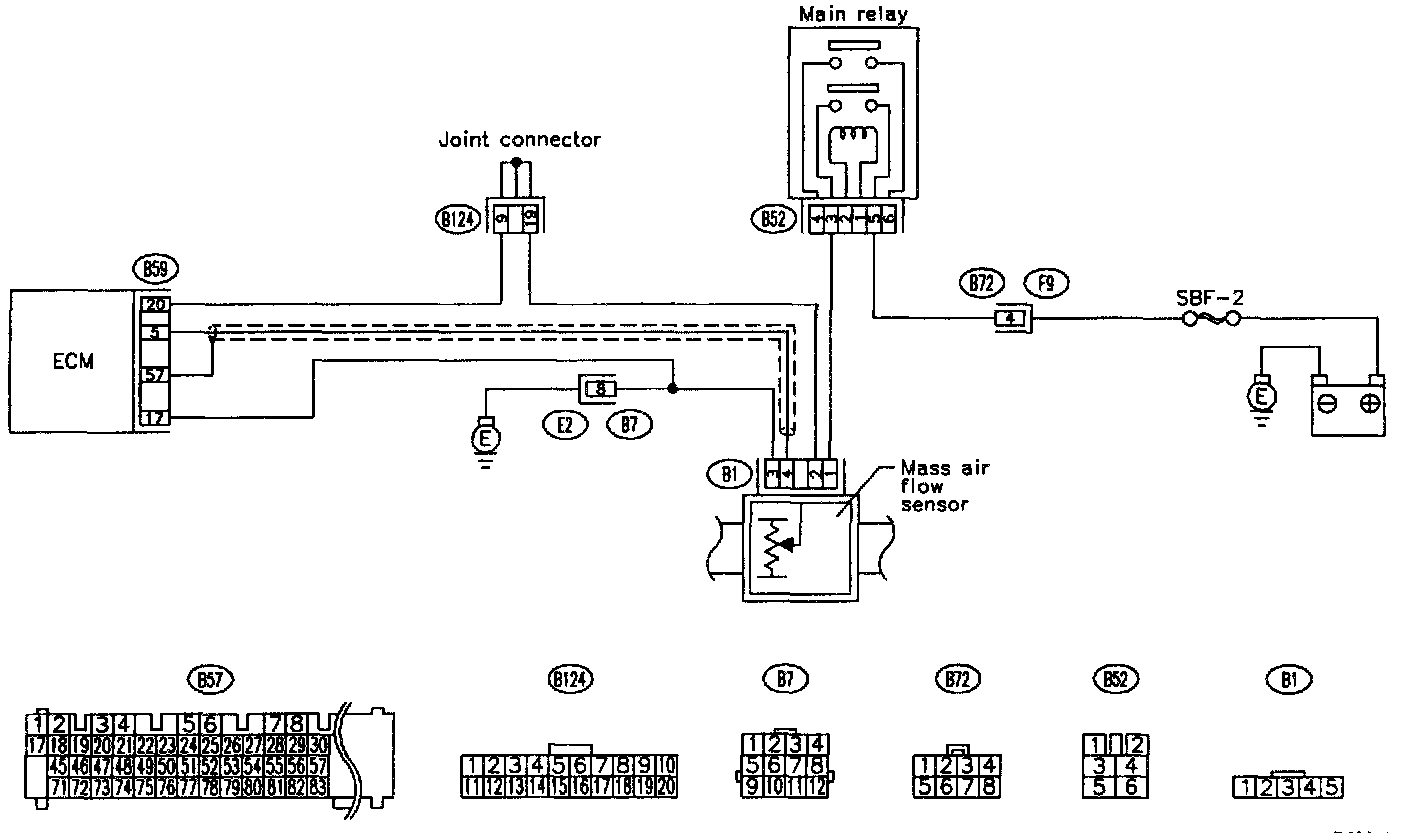

Air Flow Meter/Sensor: Diagrams
