Cruise Control Module: Testing and Inspection

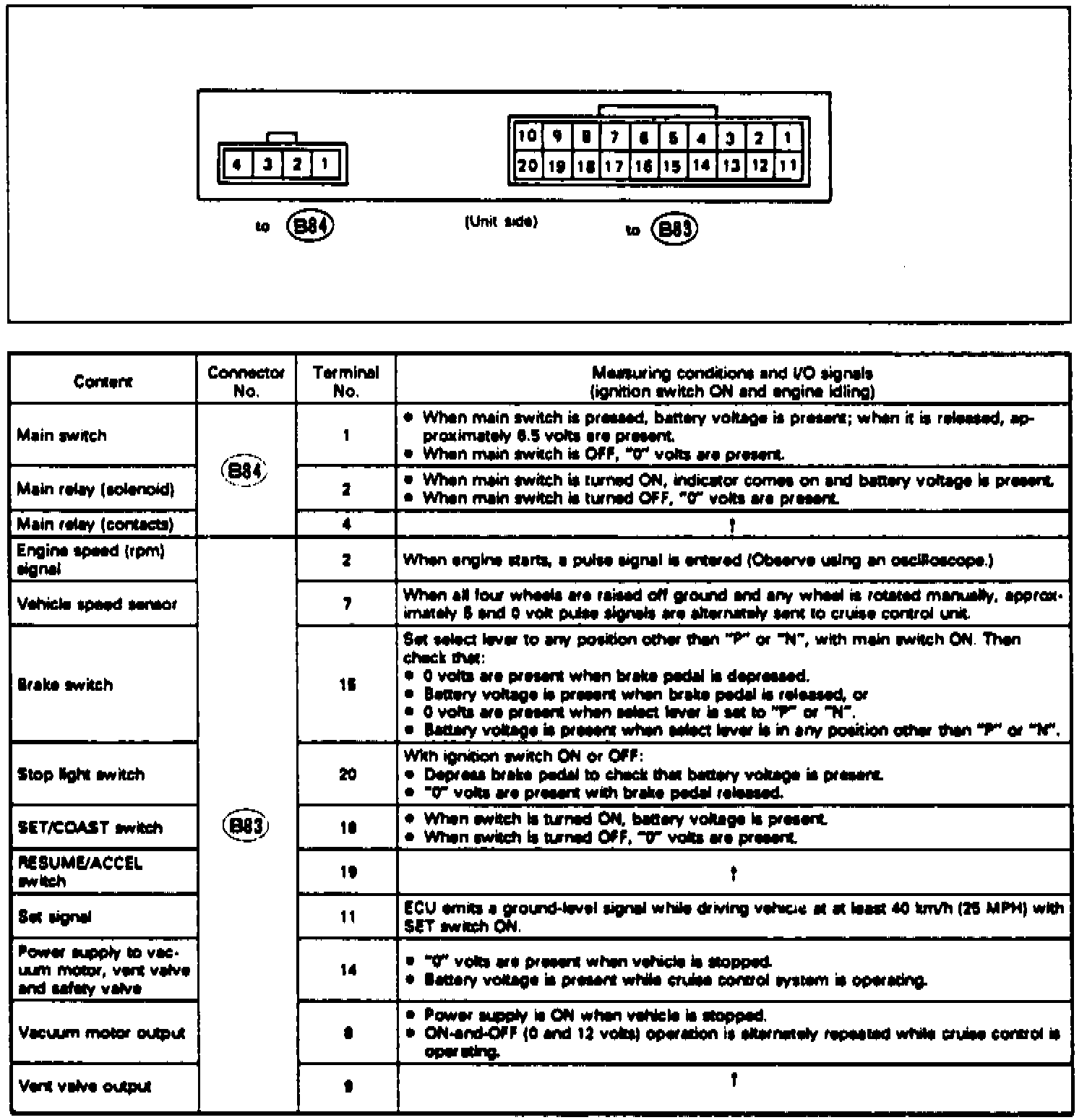

Fig. 26 Control Unit Pin Voltage Test:




Refer to Fig. 26, for pin voltage test.
