Connector Views

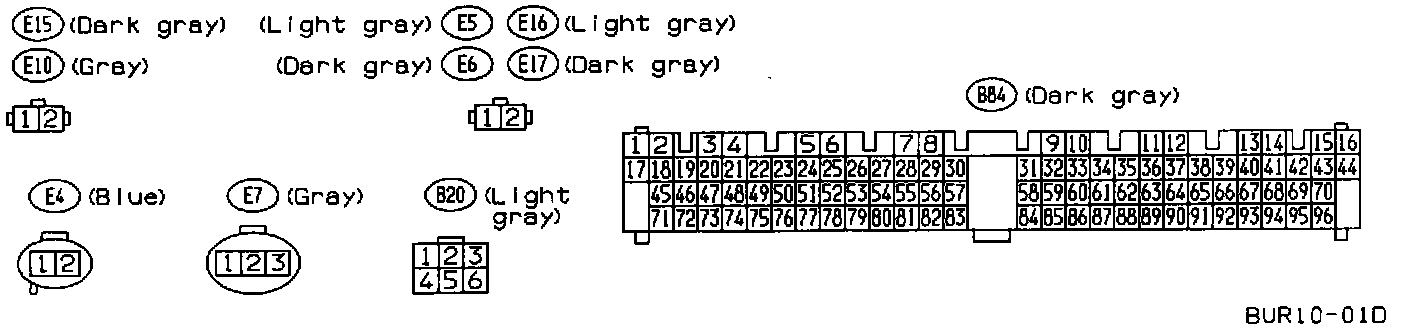

Engine Electrical System-Connectors (Part 1 Of 4):

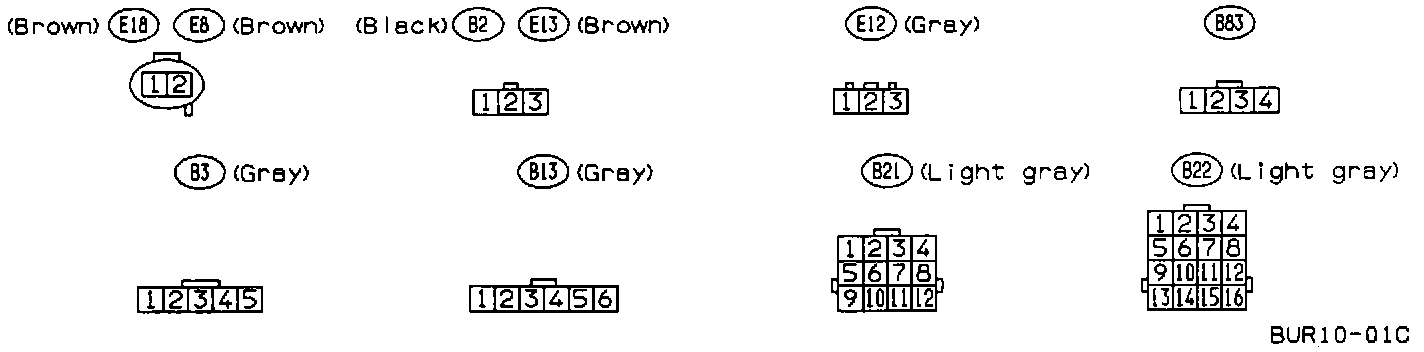

Engine Electrical System-Connectors (Part 2 Of 4):

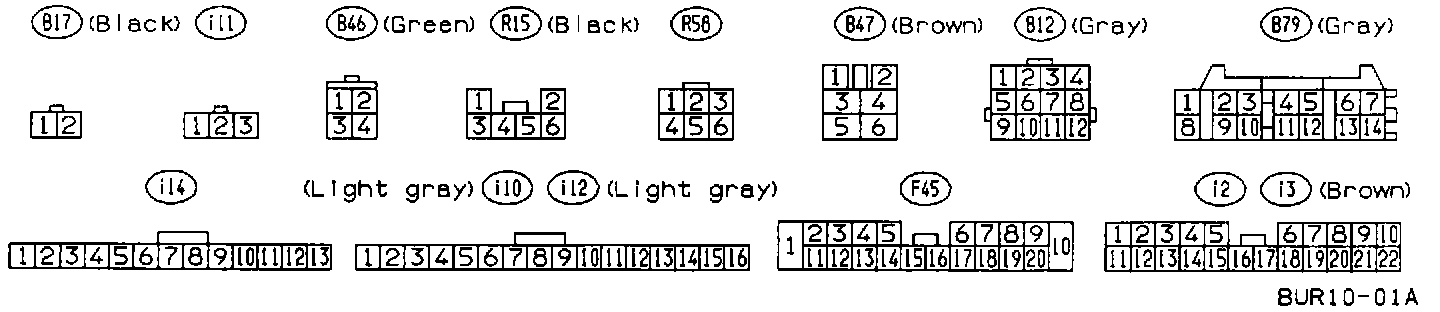

Engine Electrical System-Connectors (Part 3 Of 4):




Engine Electrical System-Connectors (Part 4 Of 4):
