Electronic Brake Control Module: Testing and Inspection

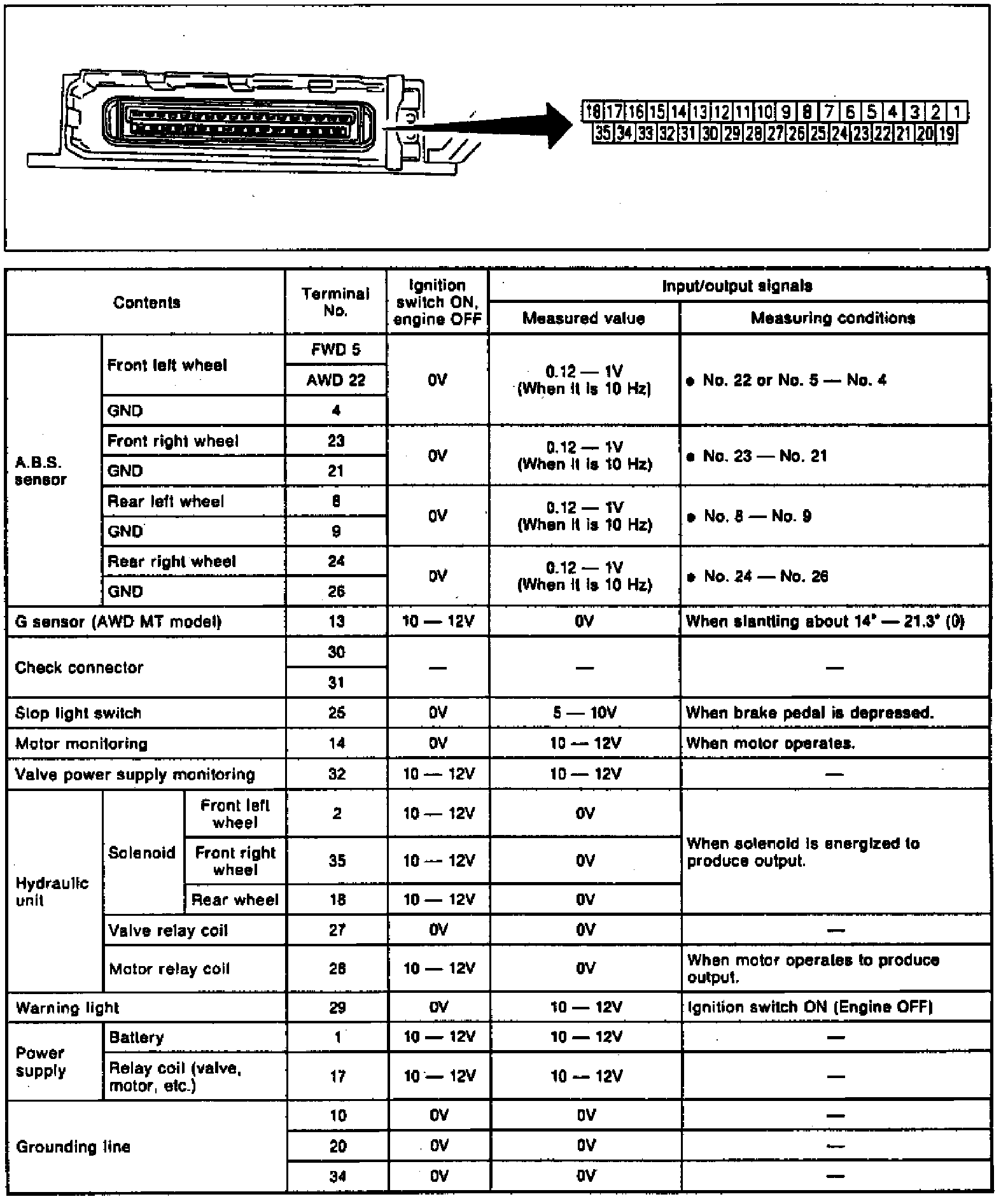

ABS Control Module Pin Voltage Specs.:
Refer to
Fig. 18,
for control module input/output voltage signals.
