Home >> Subaru >> 1996 >> Impreza Outback F4-2.2L SOHC >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Diagnostic Check Flow Chart

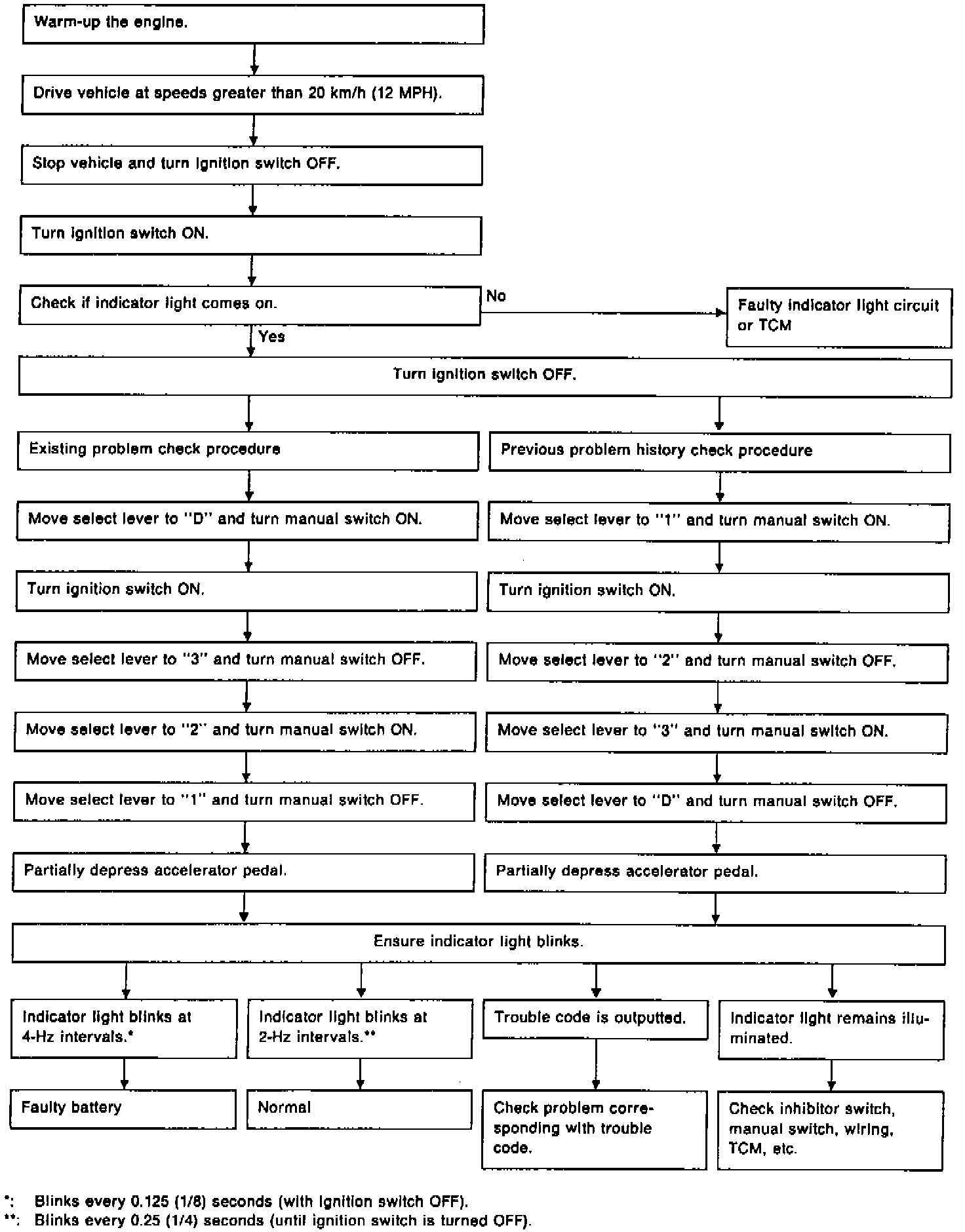

Diagnostic Check Flow Chart

Diagnostic Check Flow Chart (with Select Monitor):
