Powertrain Management: Locations

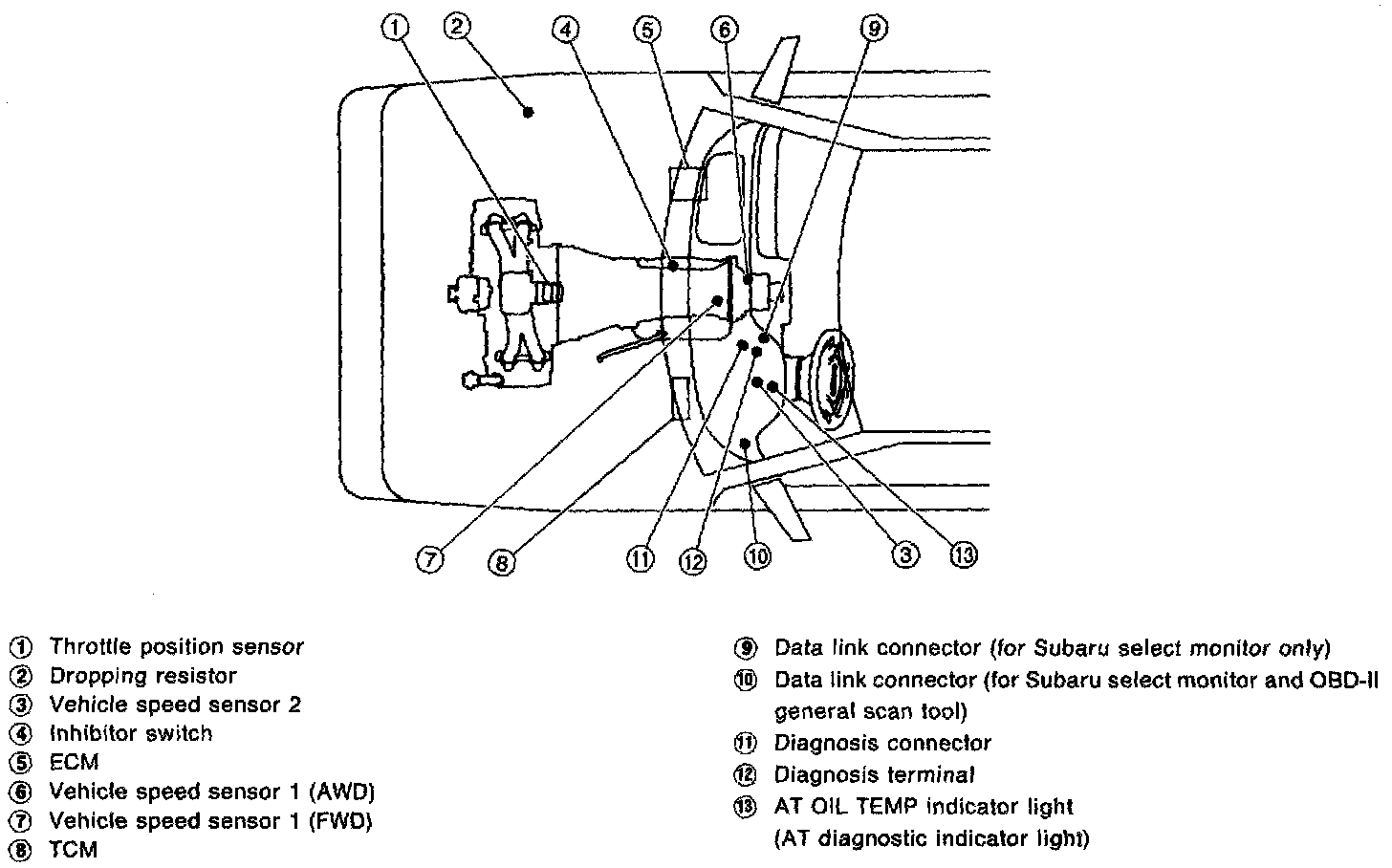

1. ELECTRICAL COMPONENT LOCATIONS

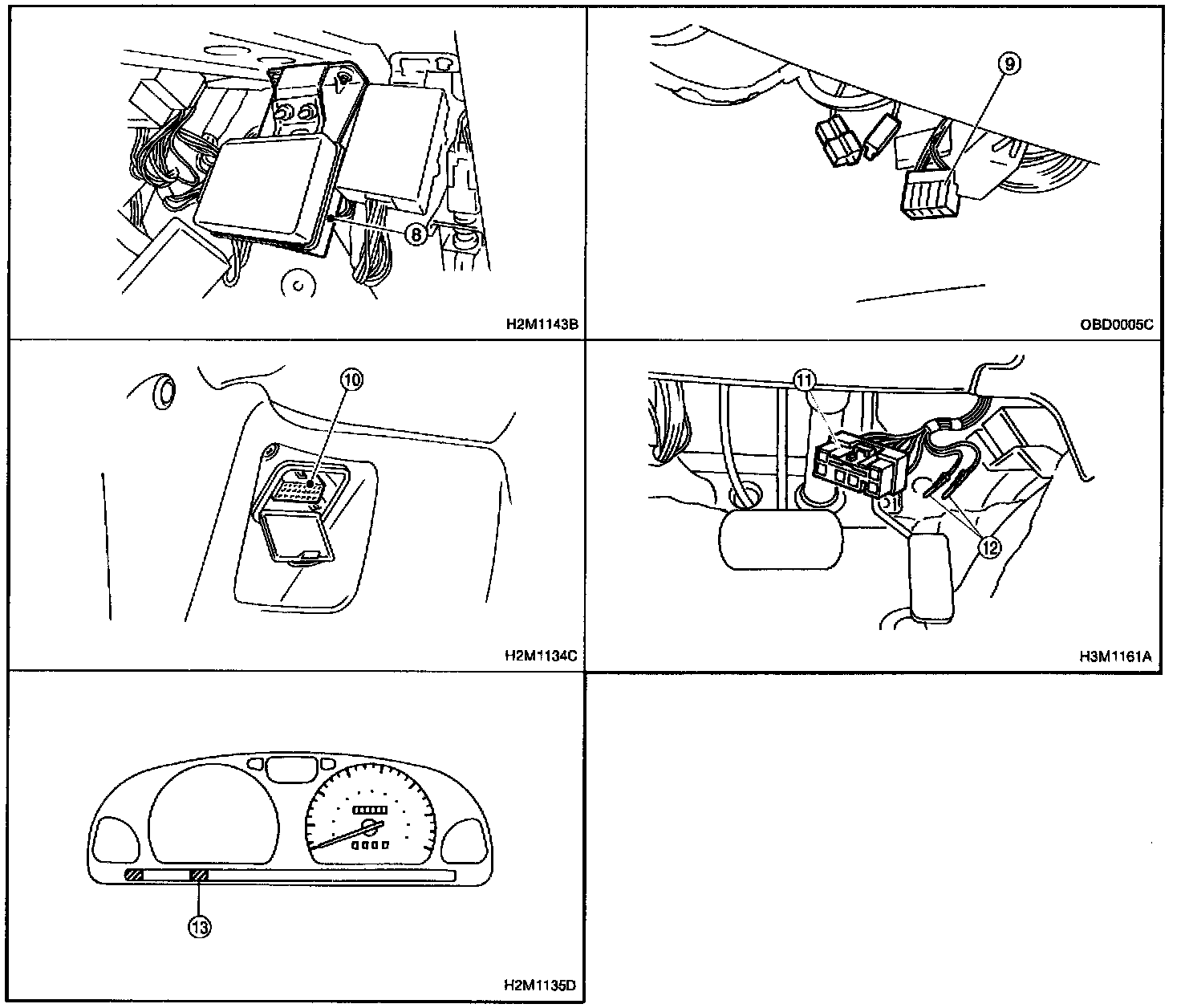

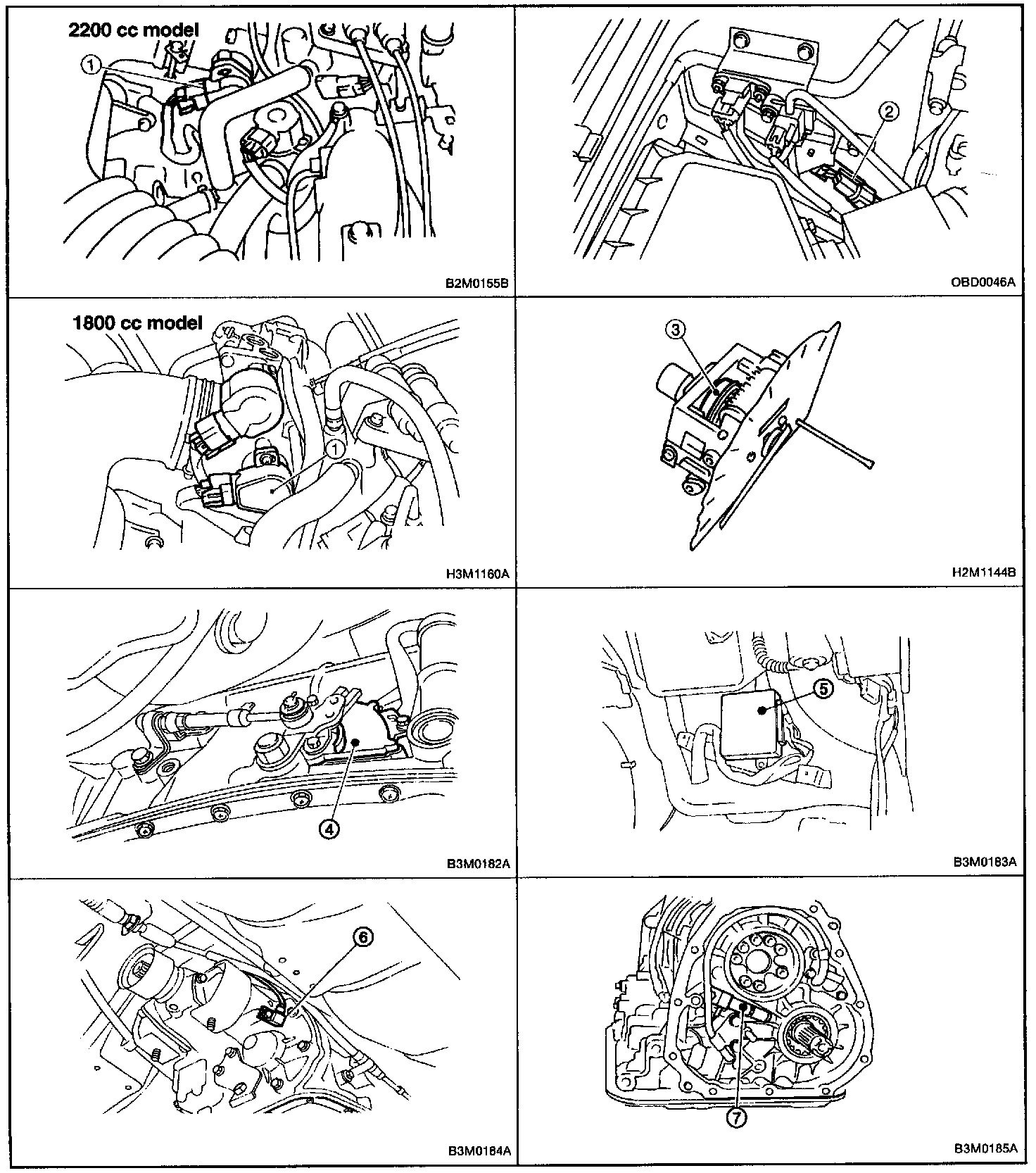

2. SENSORS AND CONTROL MODULE

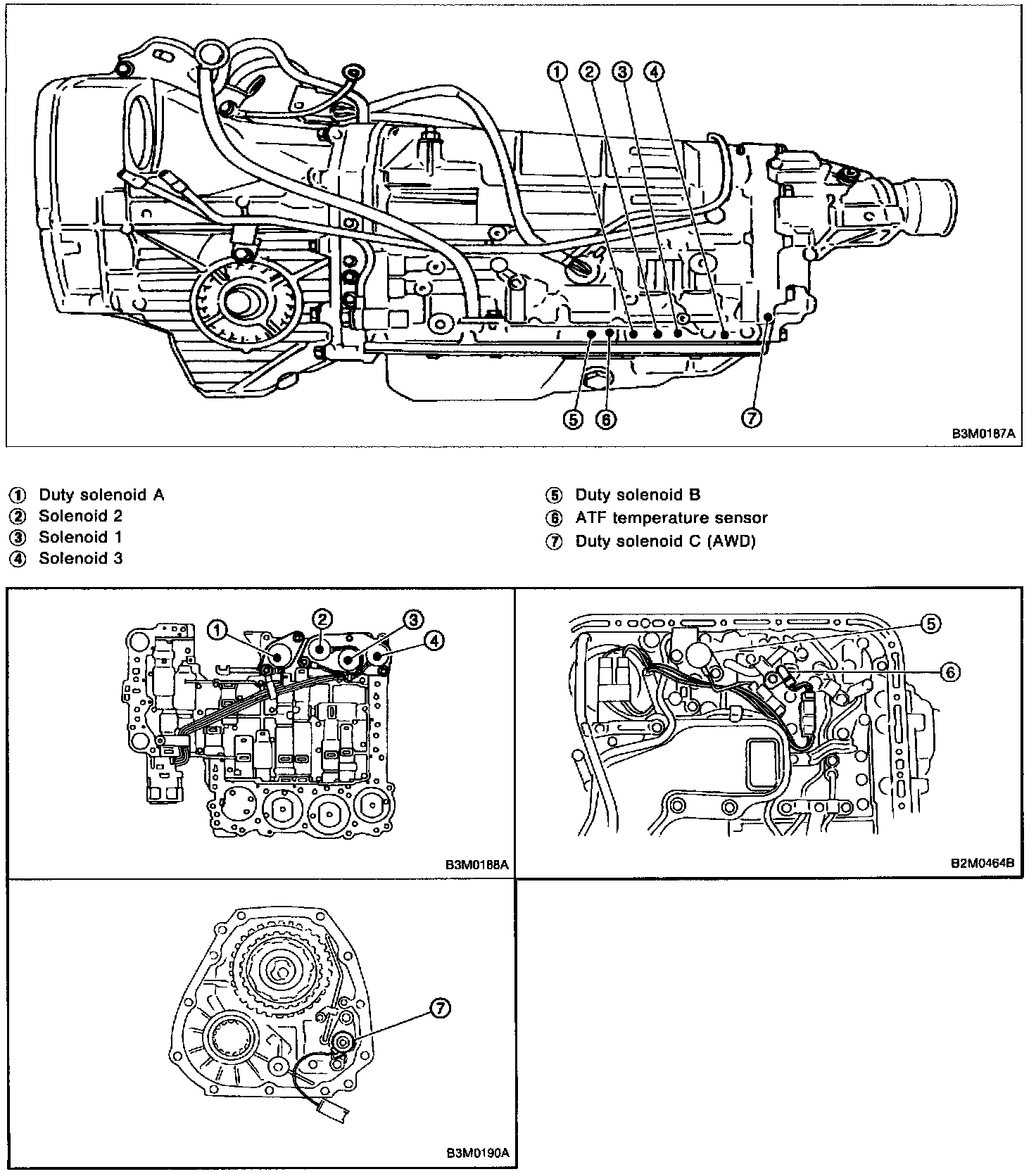

3. SOLENOIDS
