Home >> Subaru >> 1996 >> Impreza Outback F4-2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Front Door >> System Diagram

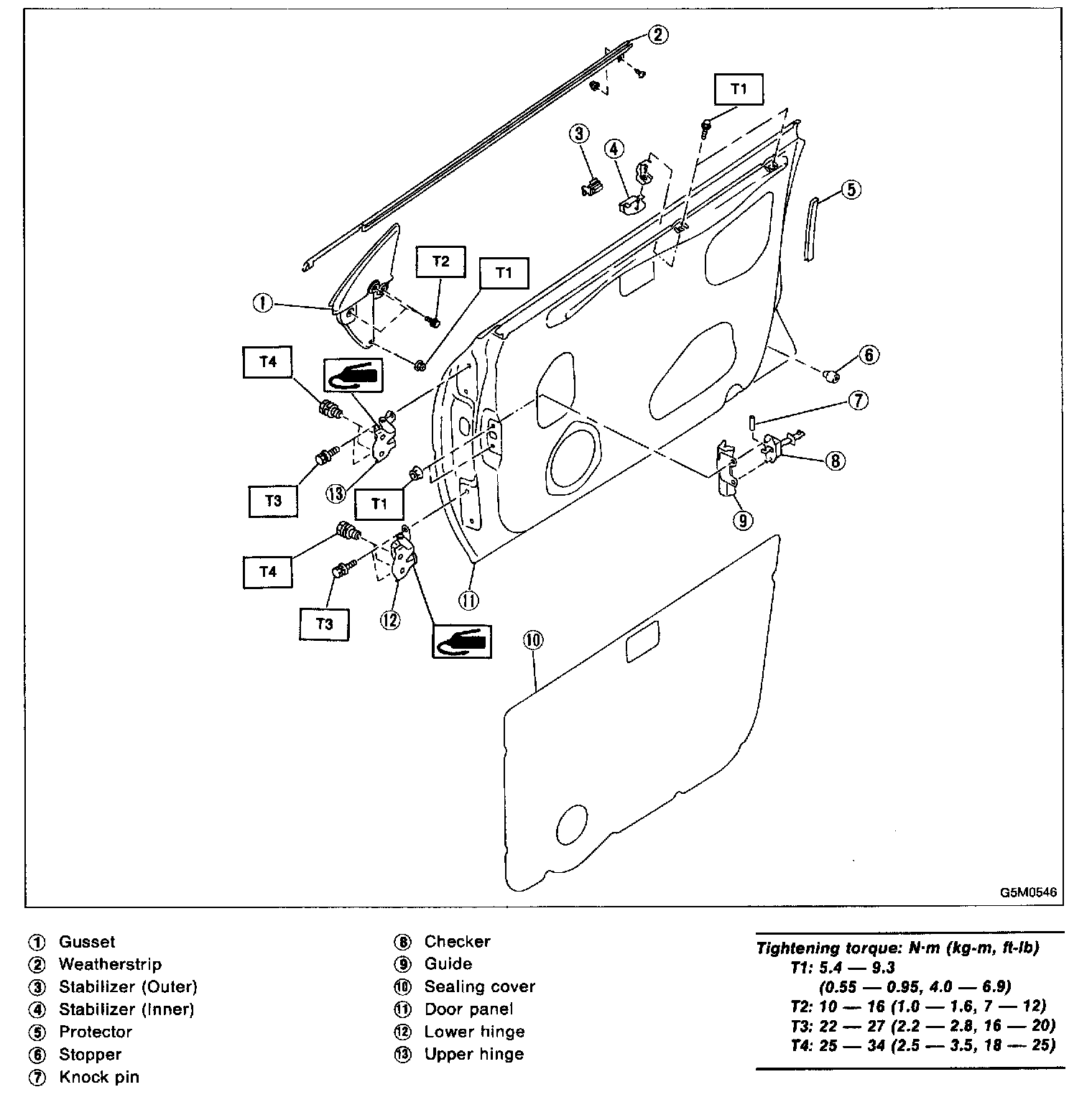

System Diagram

Front Door:
