Rear Axle

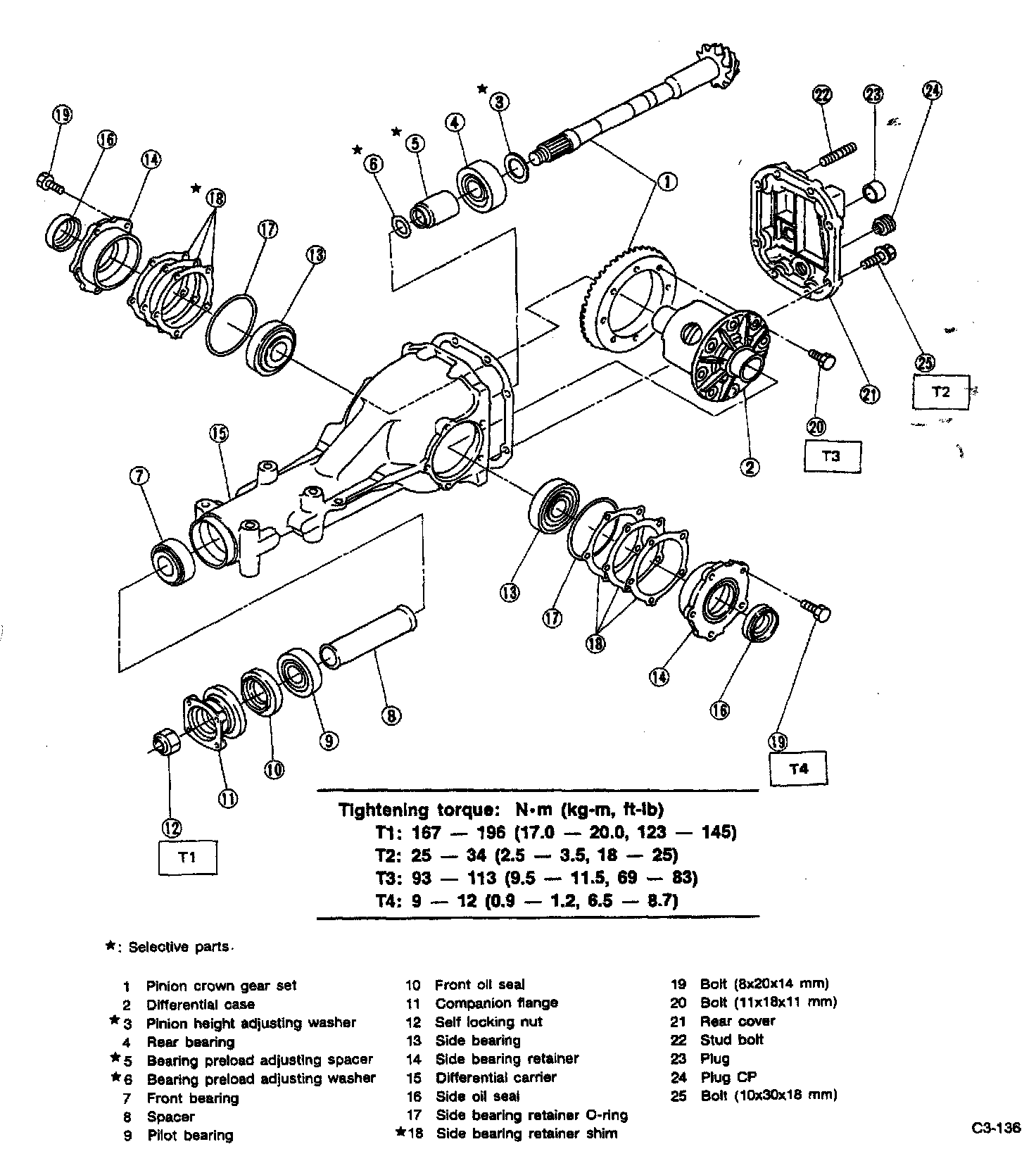

4-spd A/T, Rear Differential Assembly (AWD):

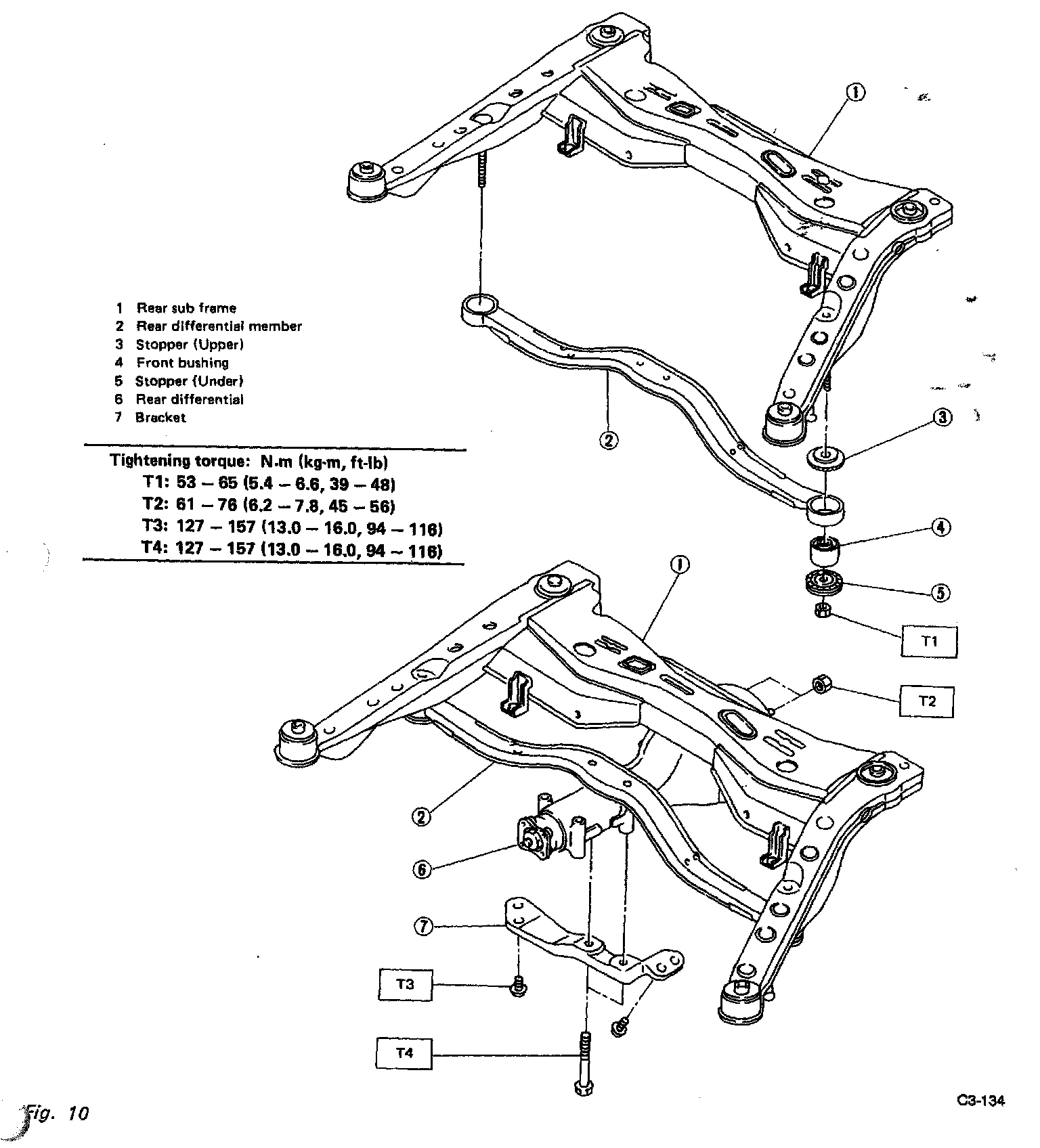

4-spd A/T, Rear Differential Mounting System:
