Home >> Subaru >> 1995 >> Legacy Sedan 2WD F4-2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Fuel Tank

Fuel Tank

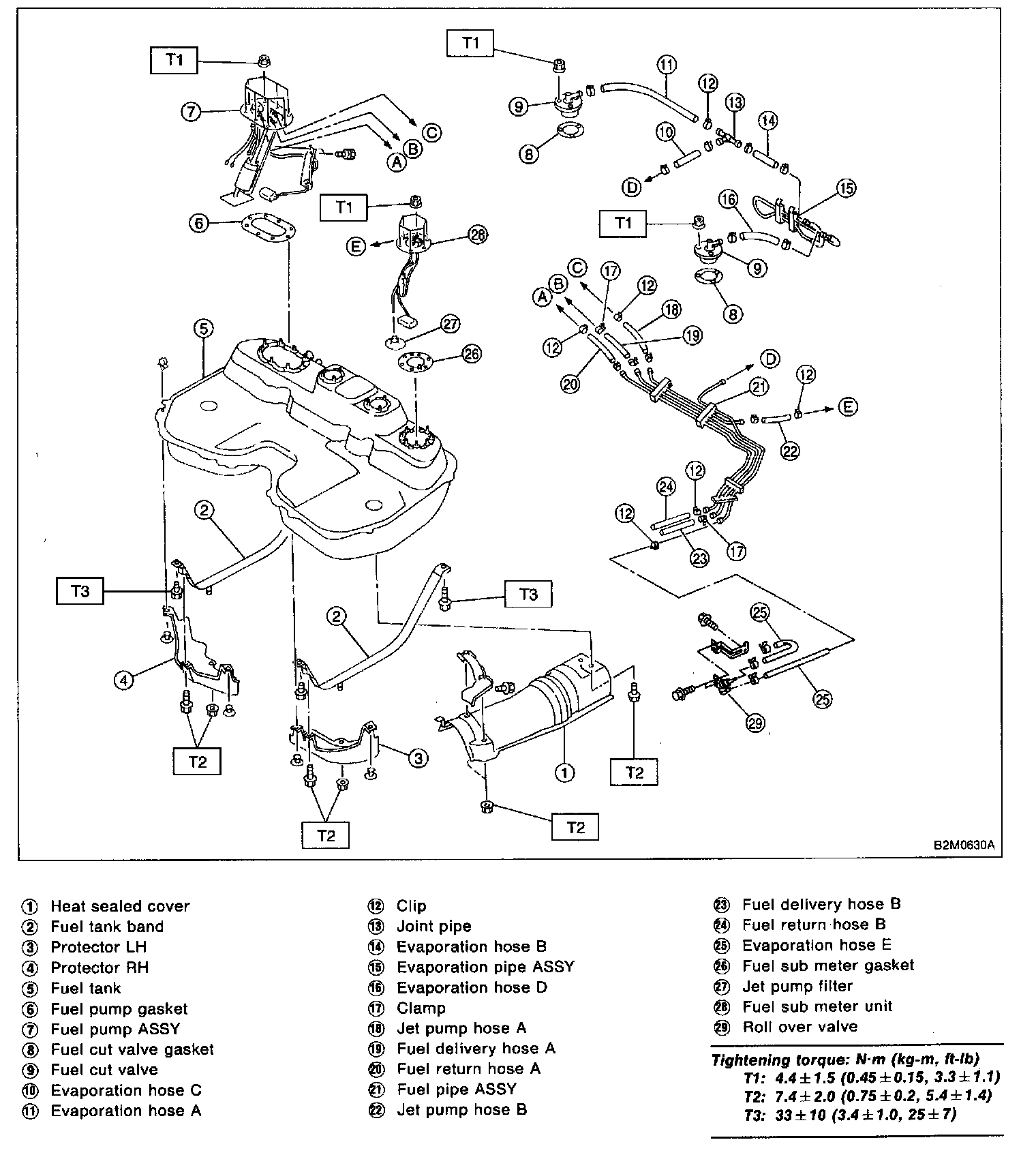

AWD Model:

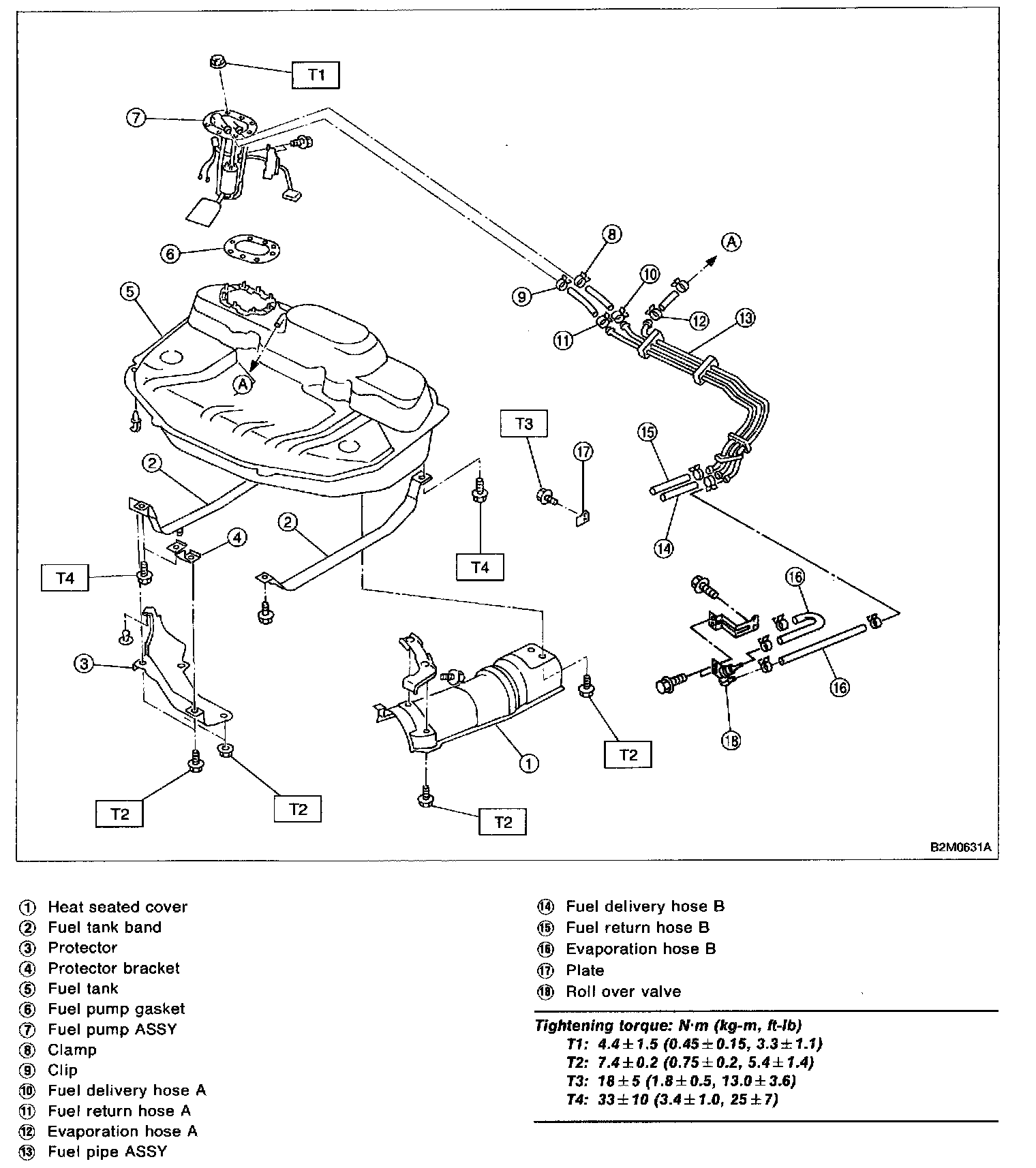

FWD Model:
