Home >> Subaru >> 1994 >> SVX AWD L6-3.3L DOHC >> Repair and Diagnosis >> Cruise Control >> Cruise Control Servo Cable >> Adjustments

Cruise Control Servo Cable: Adjustments

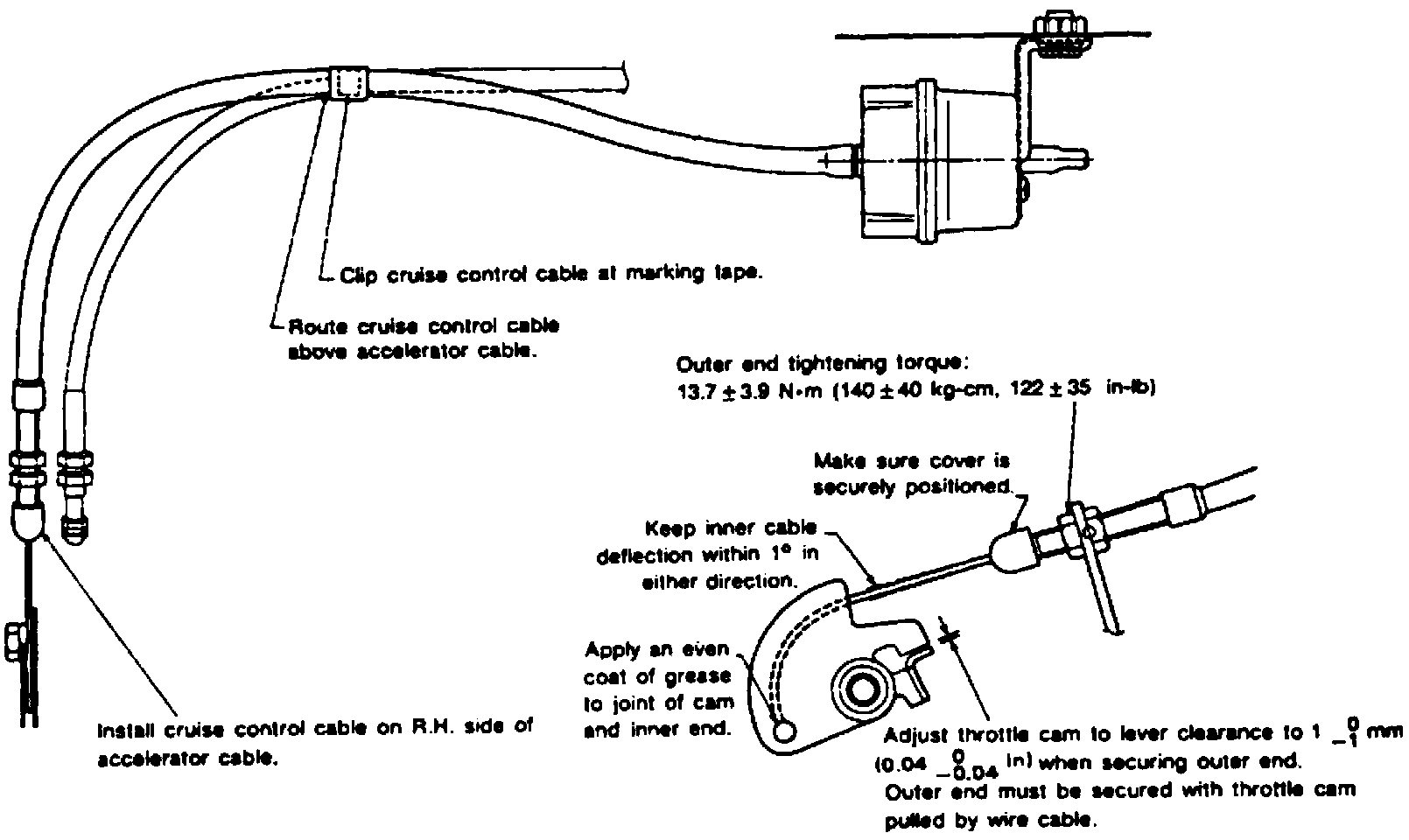

Fig. 10 Control Cable Adjustment:

Refer to Fig. 10, for control cable adjustment.
