Home >> Subaru >> 1993 >> SVX L6-3.3L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Timer/Control Unit, Accessory Control

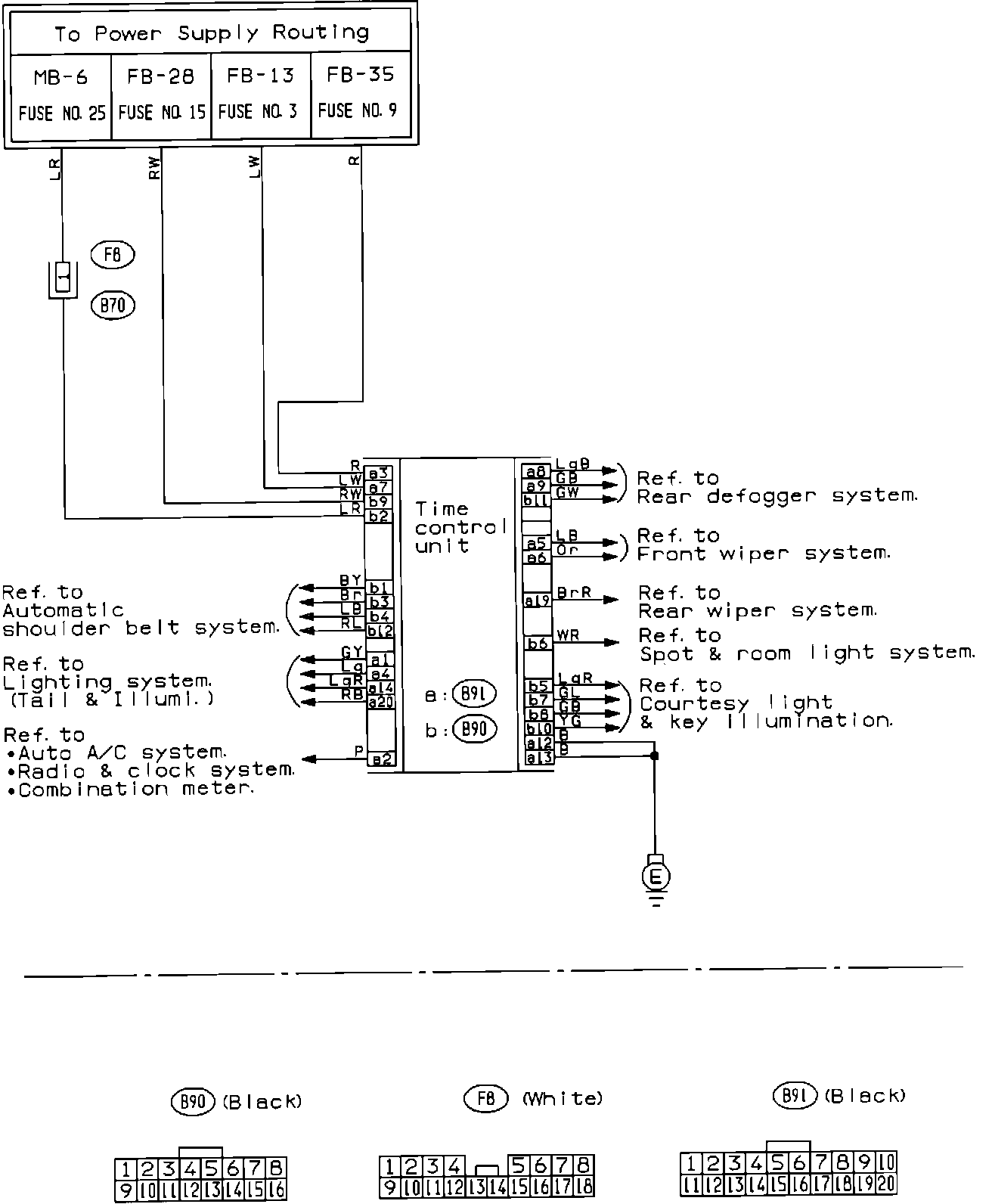

Timer/Control Unit, Accessory Control

Time Control System:
