Home >> Subaru >> 1992 >> Legacy Sedan 2WD F4-2.2L SOHC >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Compressor Clutch Relay

Compressor Clutch Relay

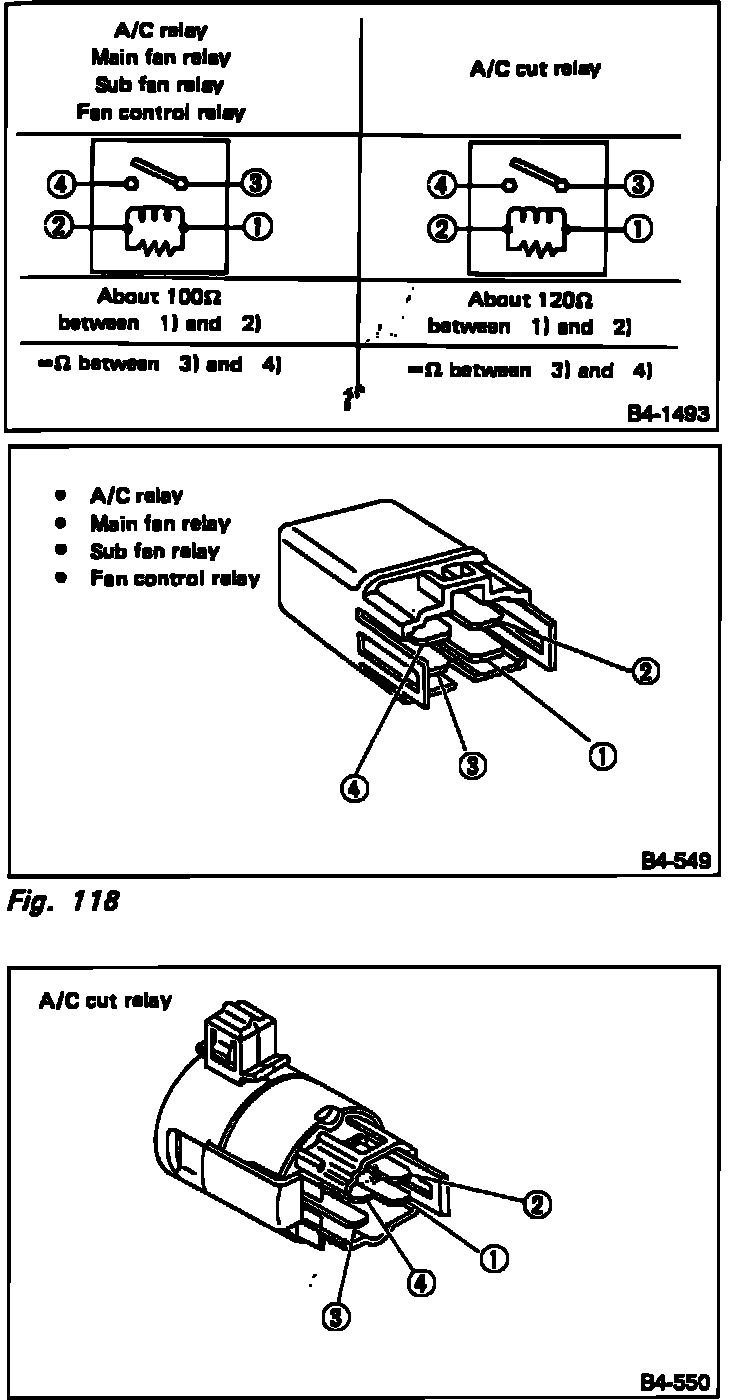

A/C Relay Testing:
