Home >> Subaru >> 1990 >> XT-6 2WD L6-2.7L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Timing Cover

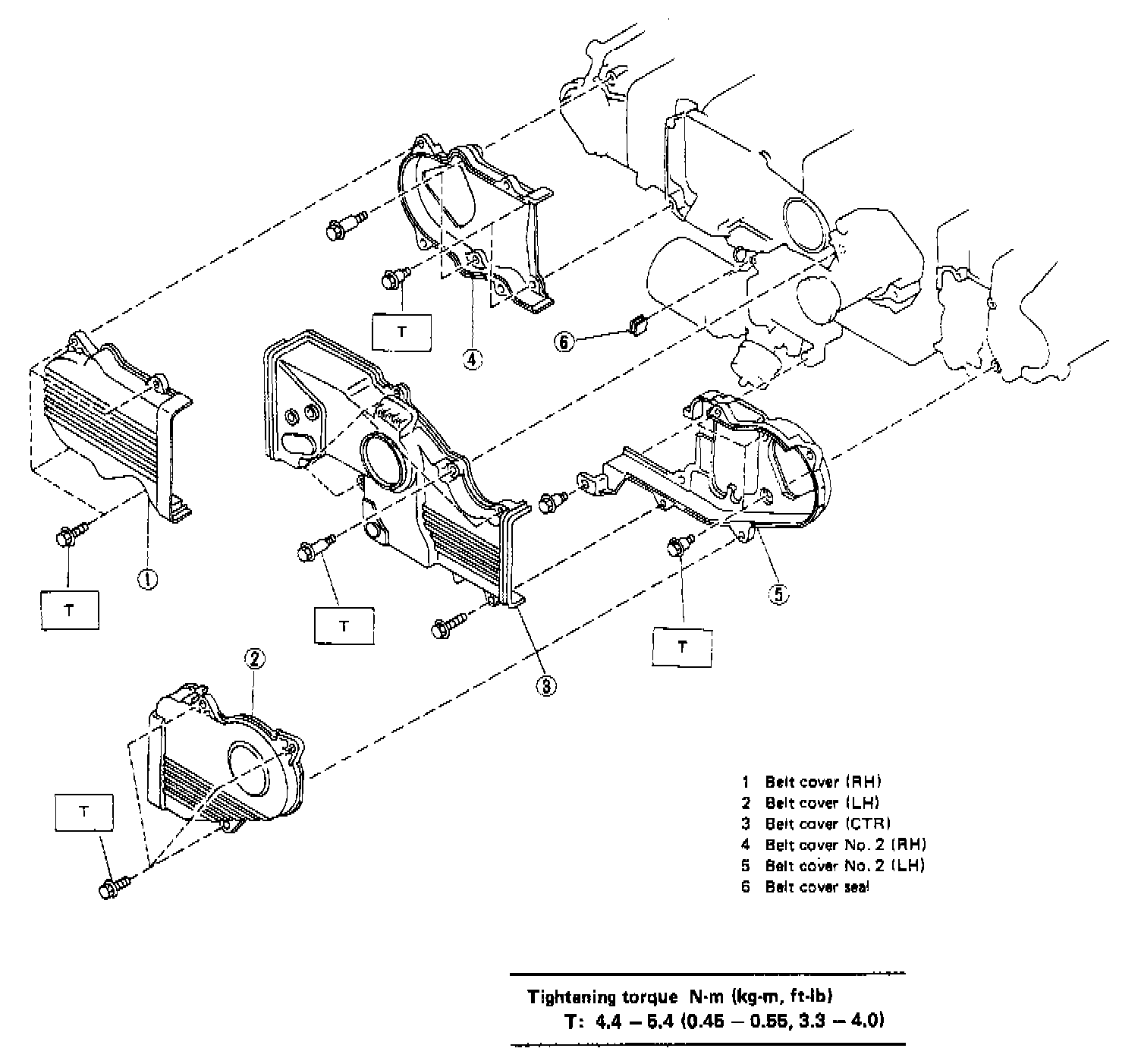

Timing Cover
