Home >> Subaru >> 1990 >> XT-6 2WD L6-2.7L SOHC >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Troubleshooting

Troubleshooting

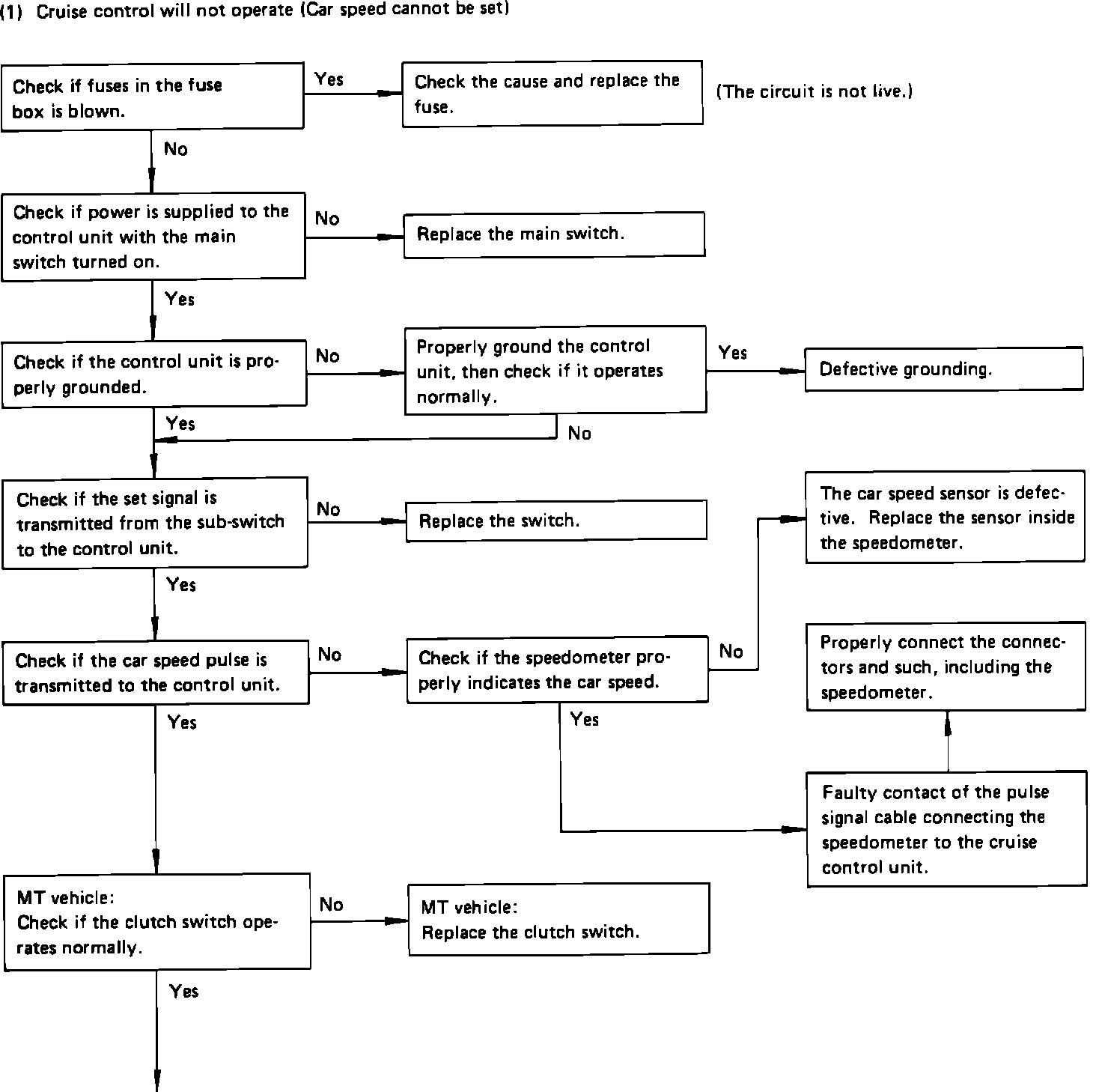

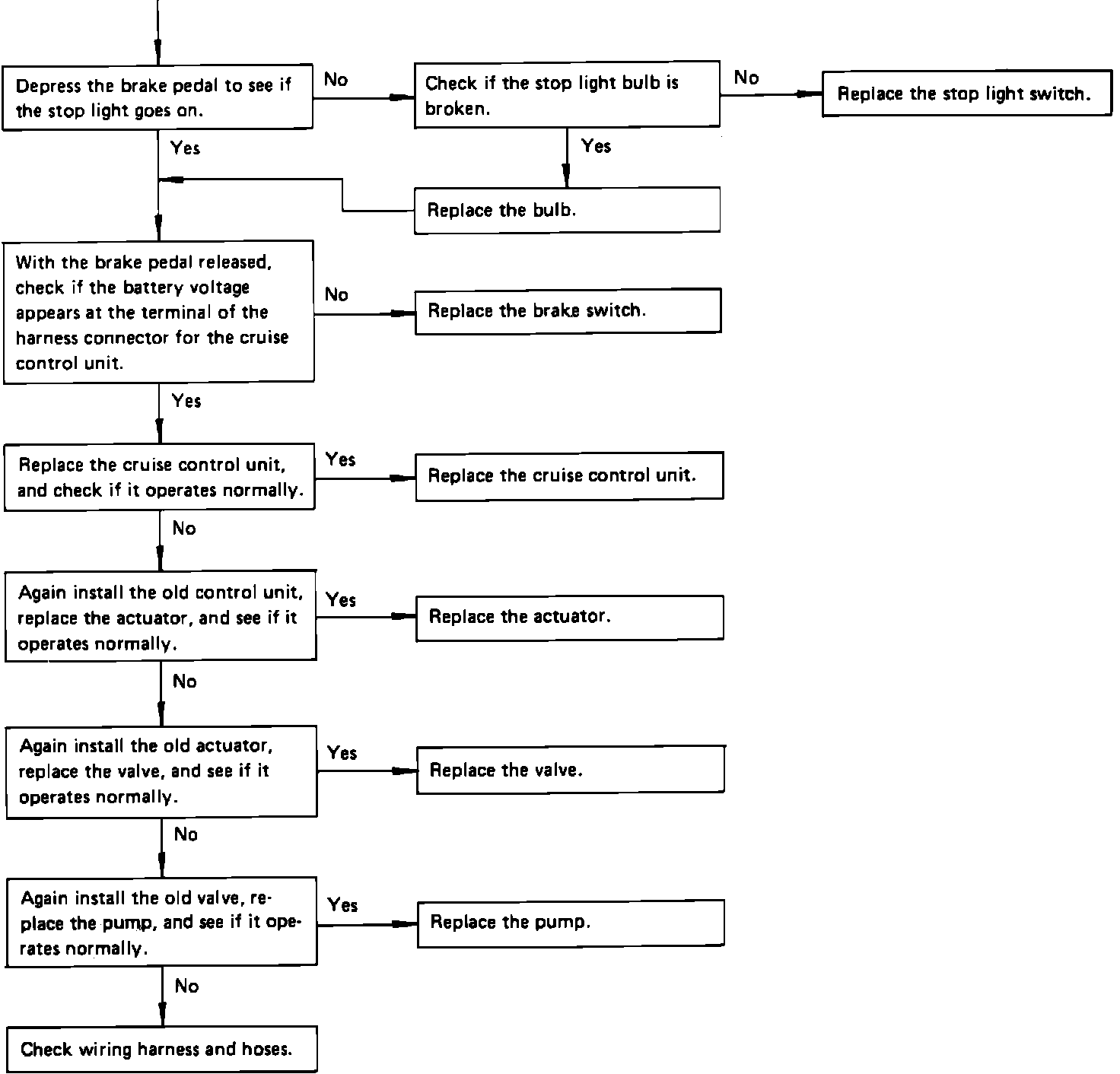

Fig. 1 Speed Control Troubleshooting Chart (Part 1 Of 4):

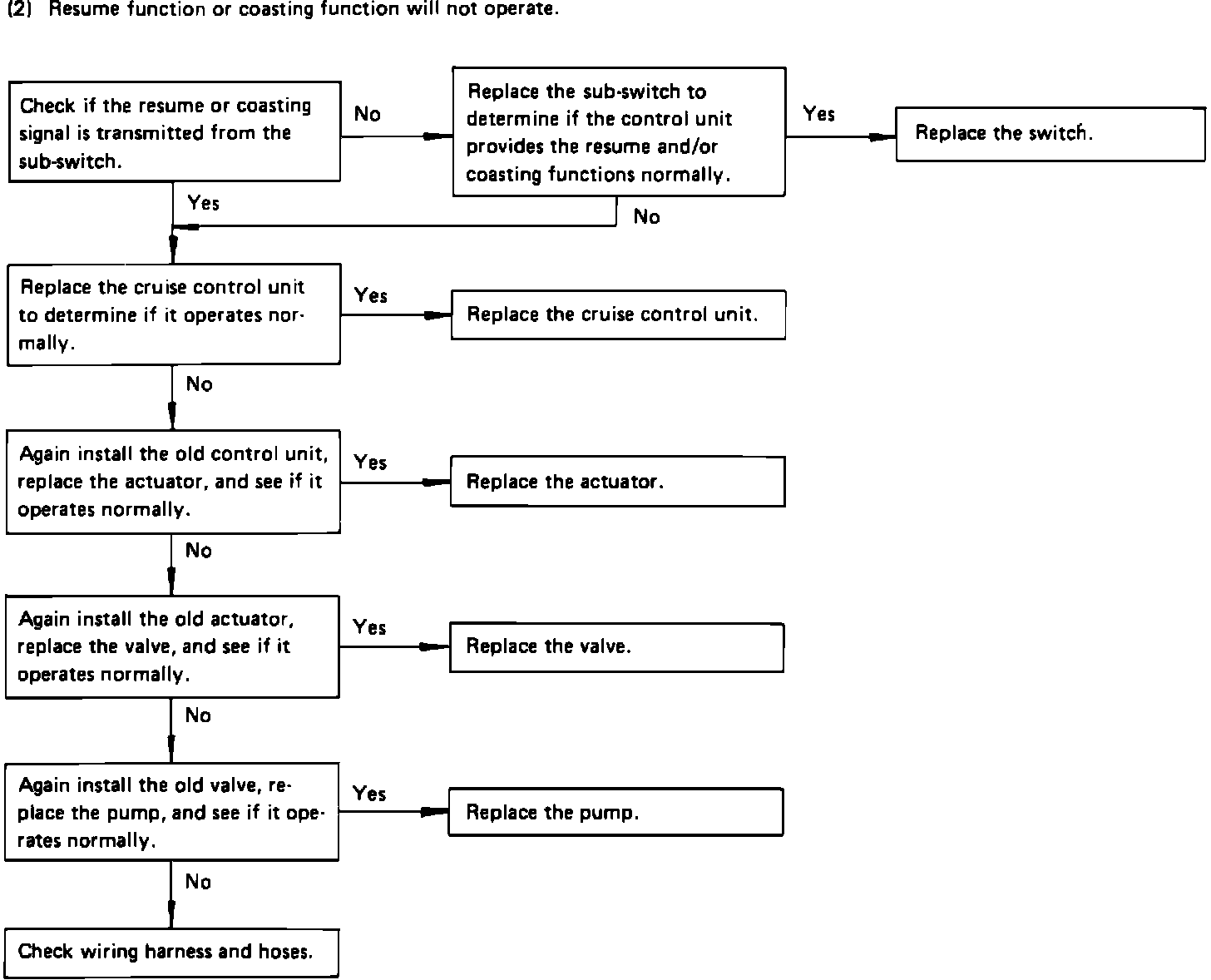

Fig. 1 Speed Control Troubleshooting Chart (Part 2 Of 4):

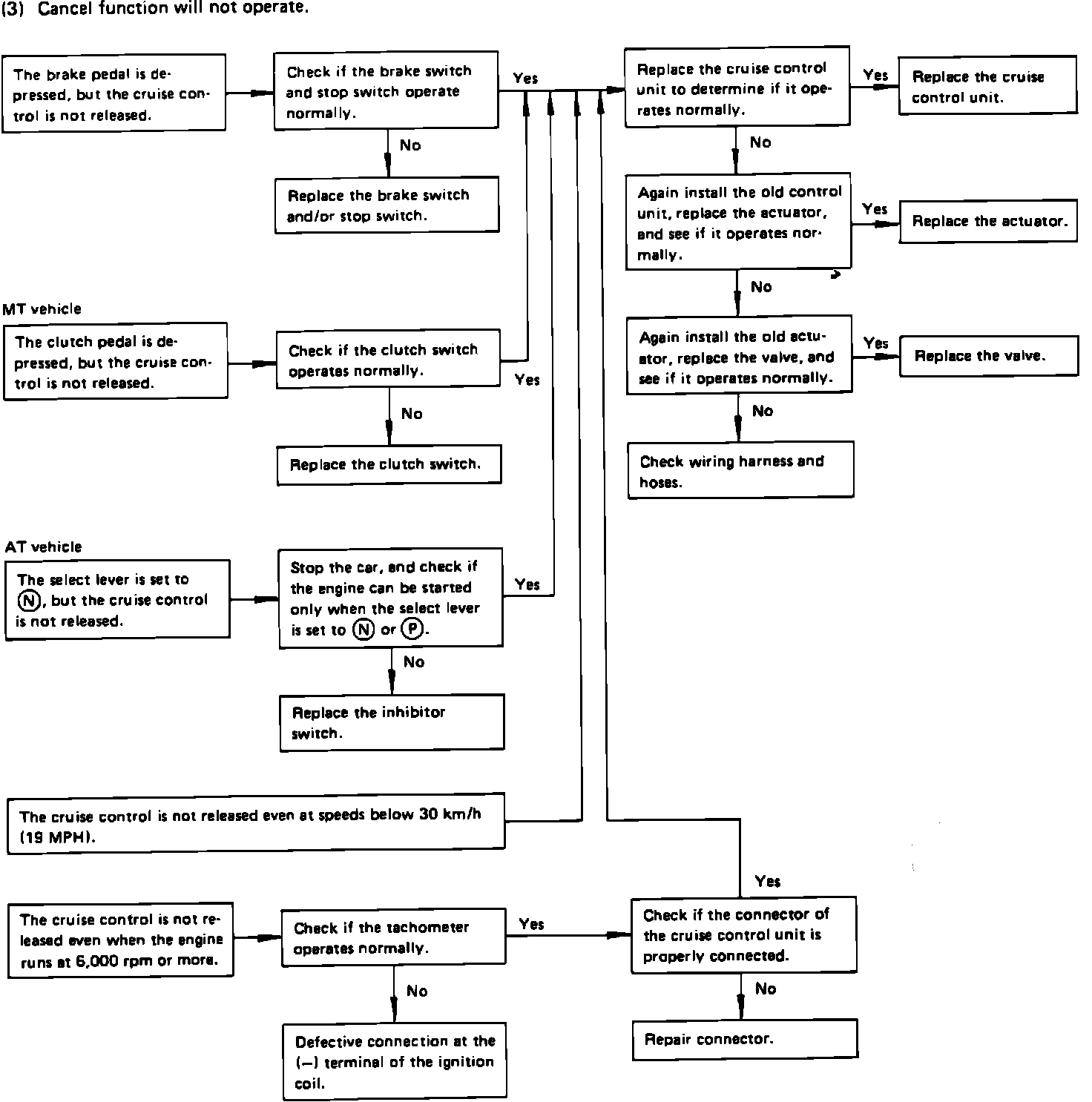

Fig. 1 Speed Control Troubleshooting Chart (Part 3 Of 4):



Fig. 1 Speed Control Troubleshooting Chart (Part 4 Of 4):
