Computers and Control Systems: Locations

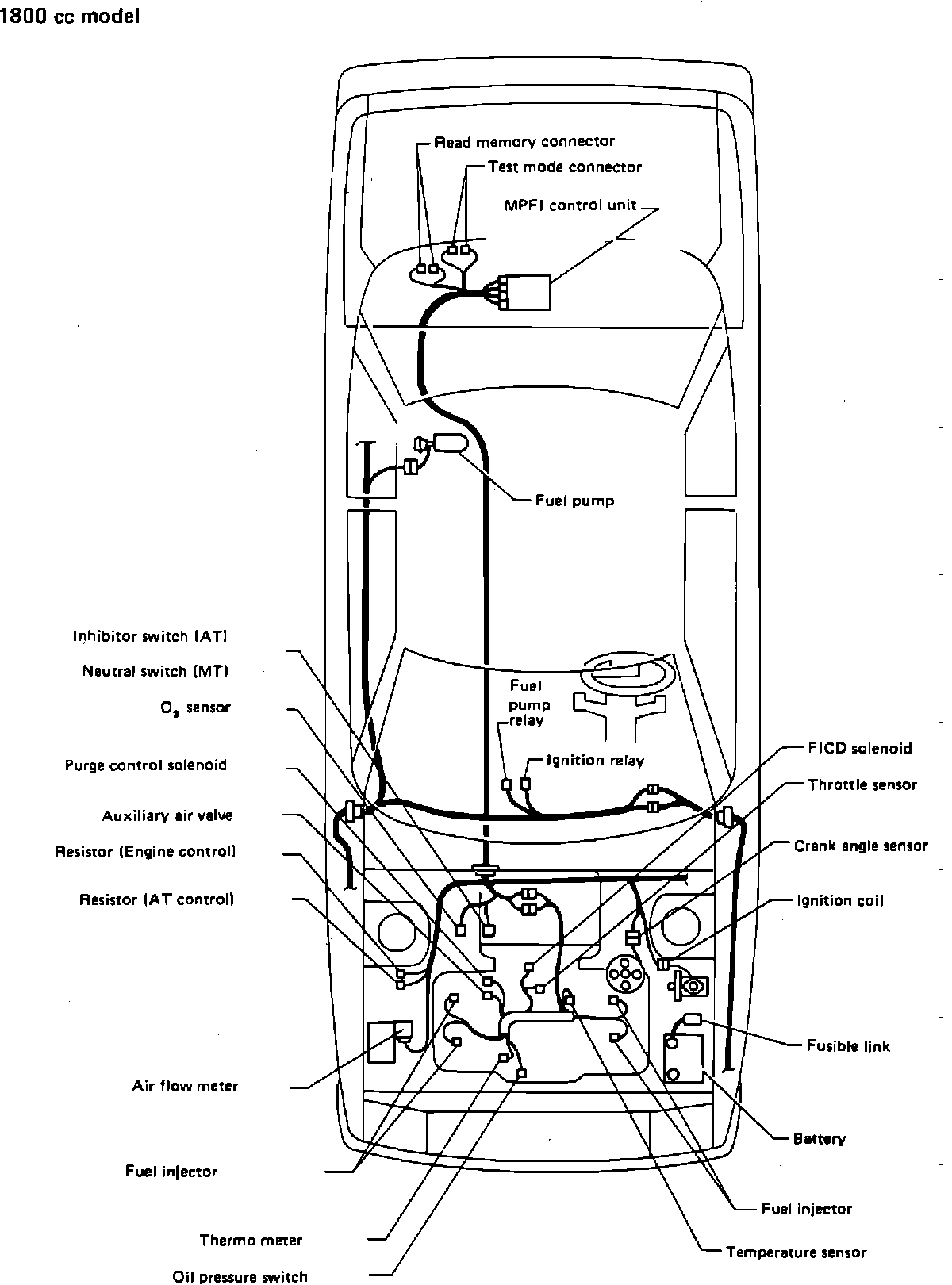

Fuel Injection Electrical Components.:




RH Side Of Engine Compartment

Applicable to: 1800 Engines
