Air Flow Meter/Sensor: Service and Repair

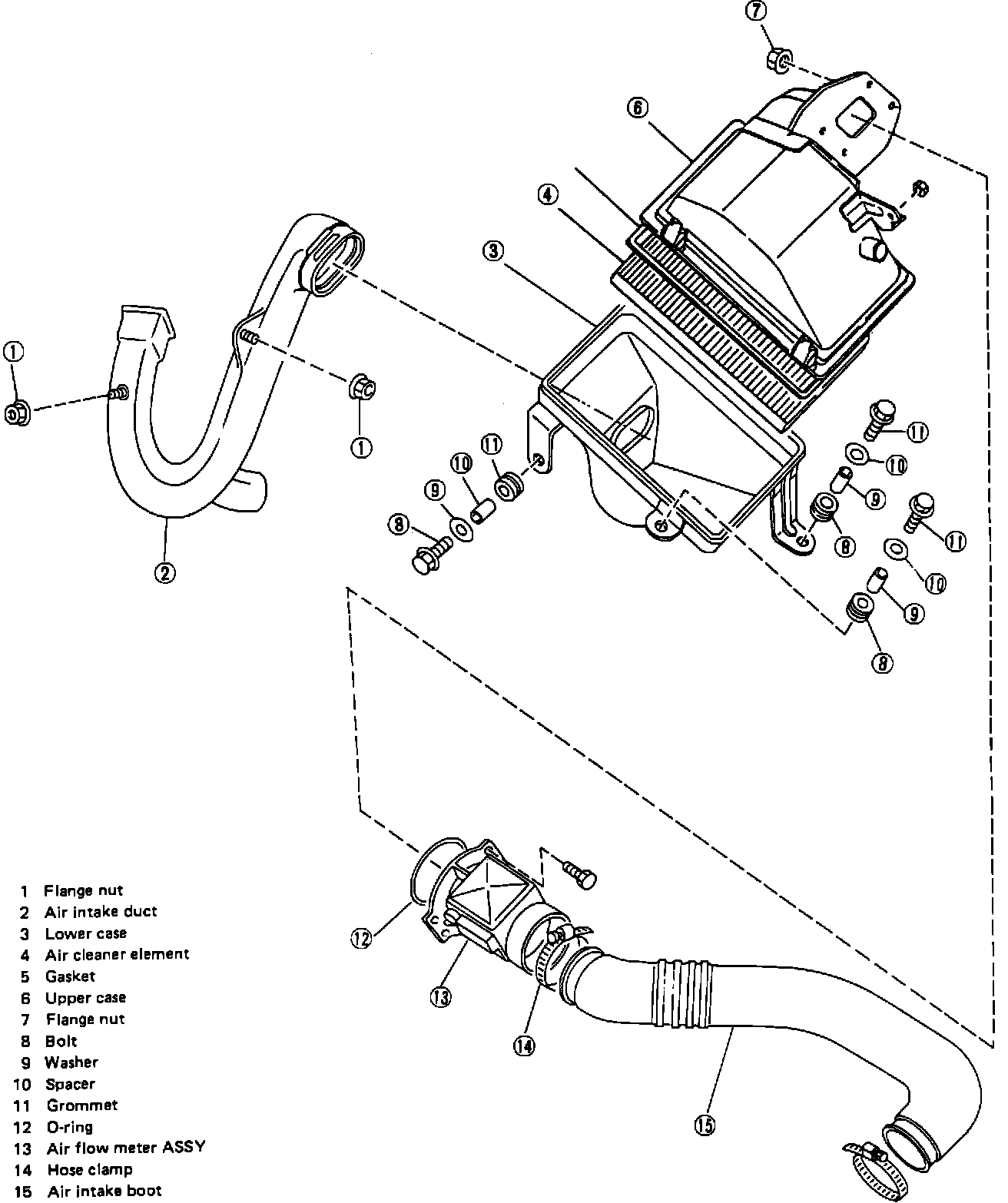

Air Intake System:

1. Remove air intake duct.
2. Disconnect electrical connector from sensor.
3. Remove air cleaner upper cover.
4. Remove sensor from upper air cleaner cover.
5. Install in reverse order.
SENSOR FASTENER TORQUE VALUE:
3.3 - 5.4 ft.lbs. (4.4 - 7.4 Nm)
