Legacy Sedan 4WD F4-2.2L SOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Transfer Case
>>
Transfer Case Technical Data
>>
2WD/FWD System
2WD/FWD System

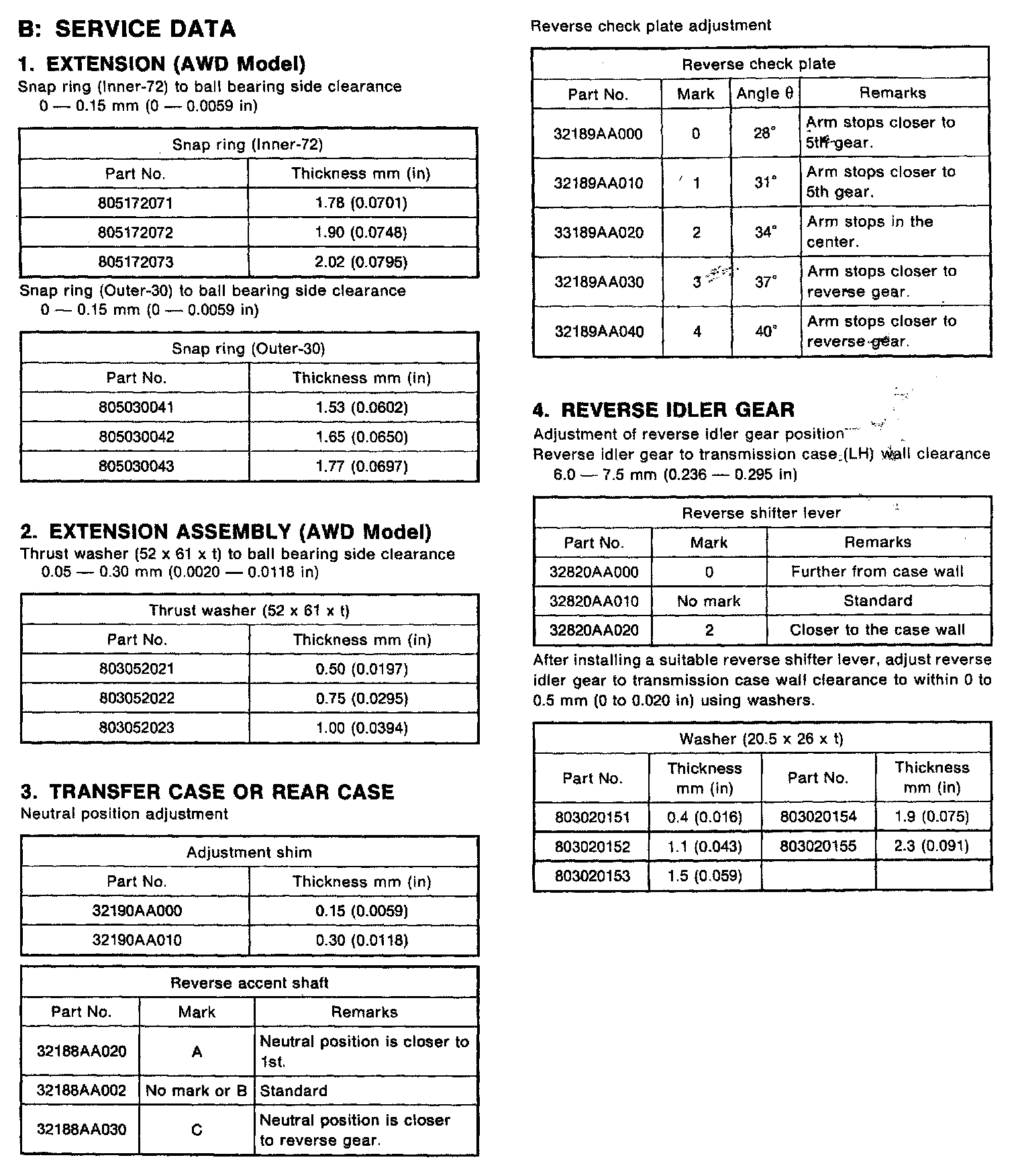

5-spd M/T, Transmission Extension, Transfer/Rear Case & Reverse Idler:
