Home >> Subaru >> 1990 >> Legacy Sedan 2WD F4-2.2L SOHC >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Testing and Inspection

Control Assembly: Testing and Inspection

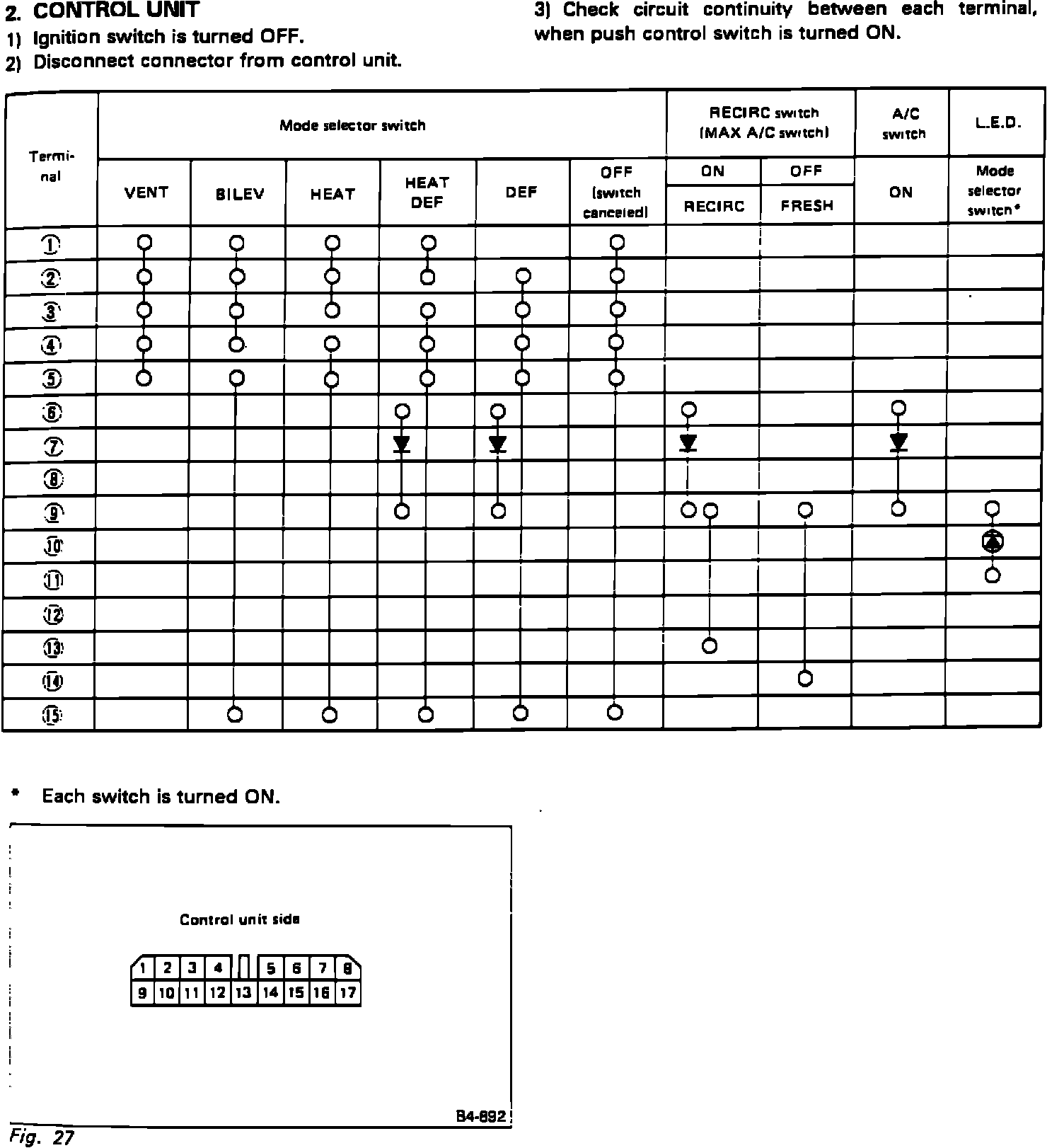

Control Unit Testing (Manual A/C):
