Idle Up Control Valve: Locations

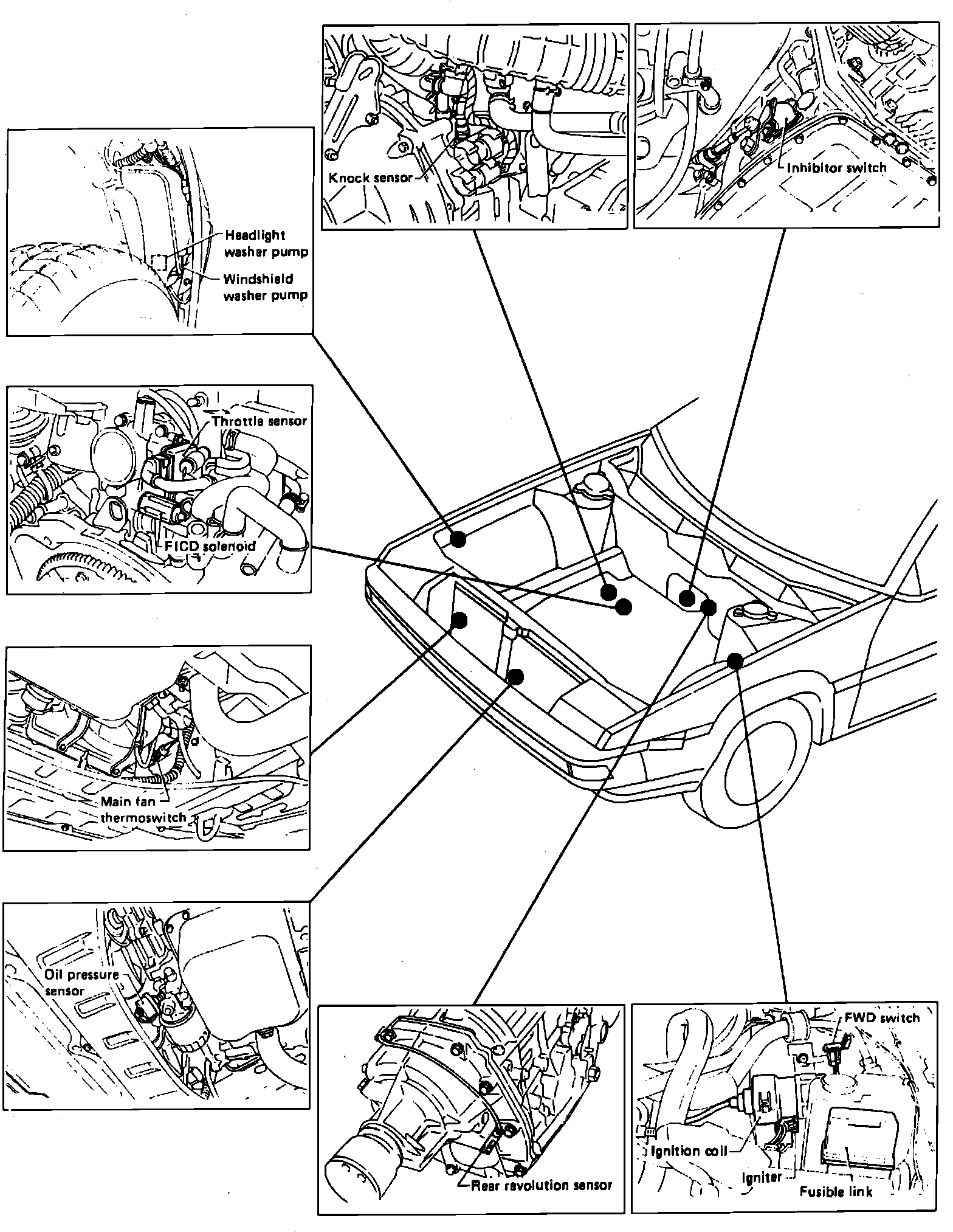

Engine Compartment Electrical Components.:




Attached To Throttle Body On Intake Manifold

Applicable to: 1987-88 XT
