Trouble Shooting For Engine Starting Failure
>>
Trouble Code 11, Crank Angel Sensor (XT Model)
Trouble Code 11, Crank Angel Sensor (XT Model)

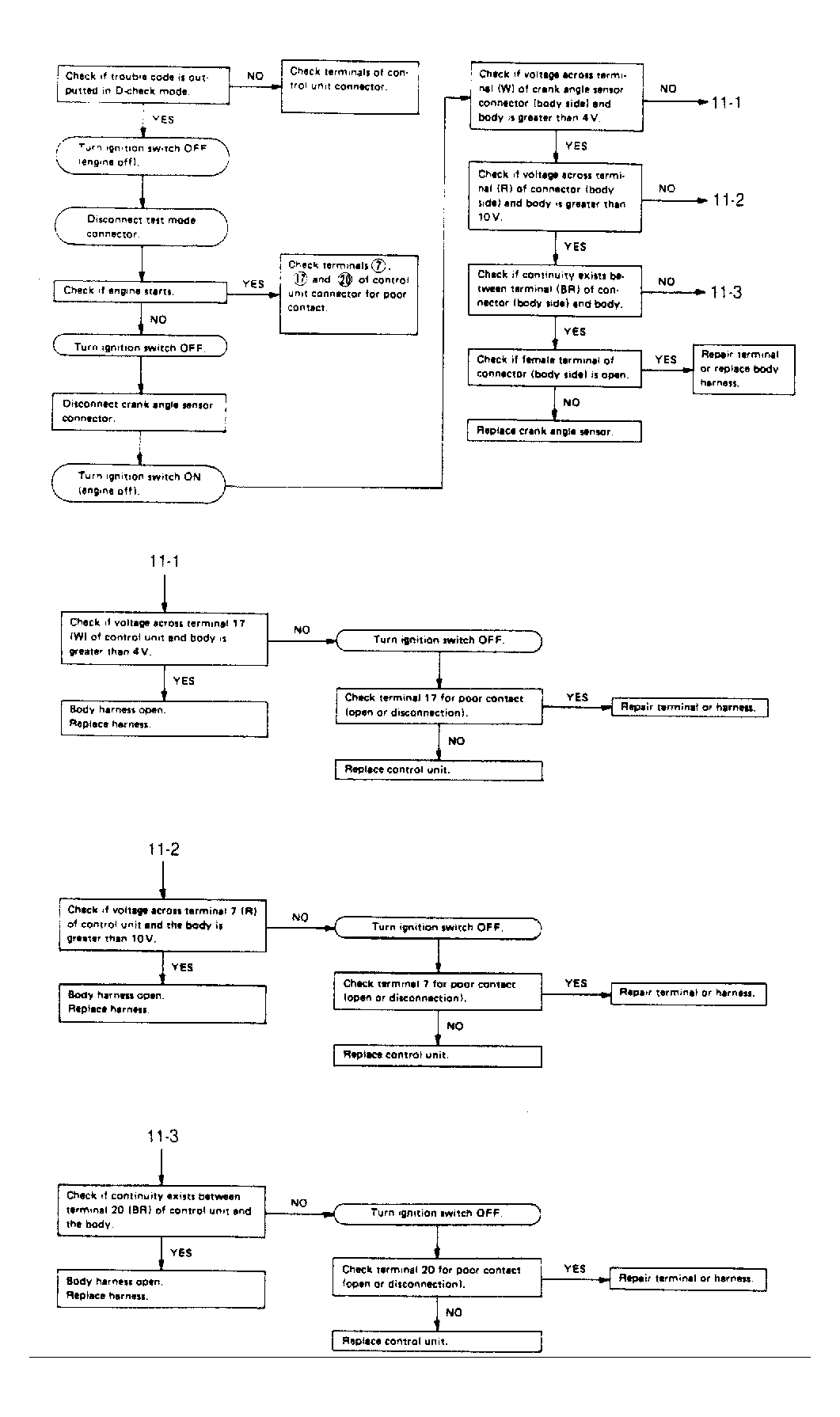

Fig 1: Trouble Code 11, Crank Angel Sensor (XT Model)

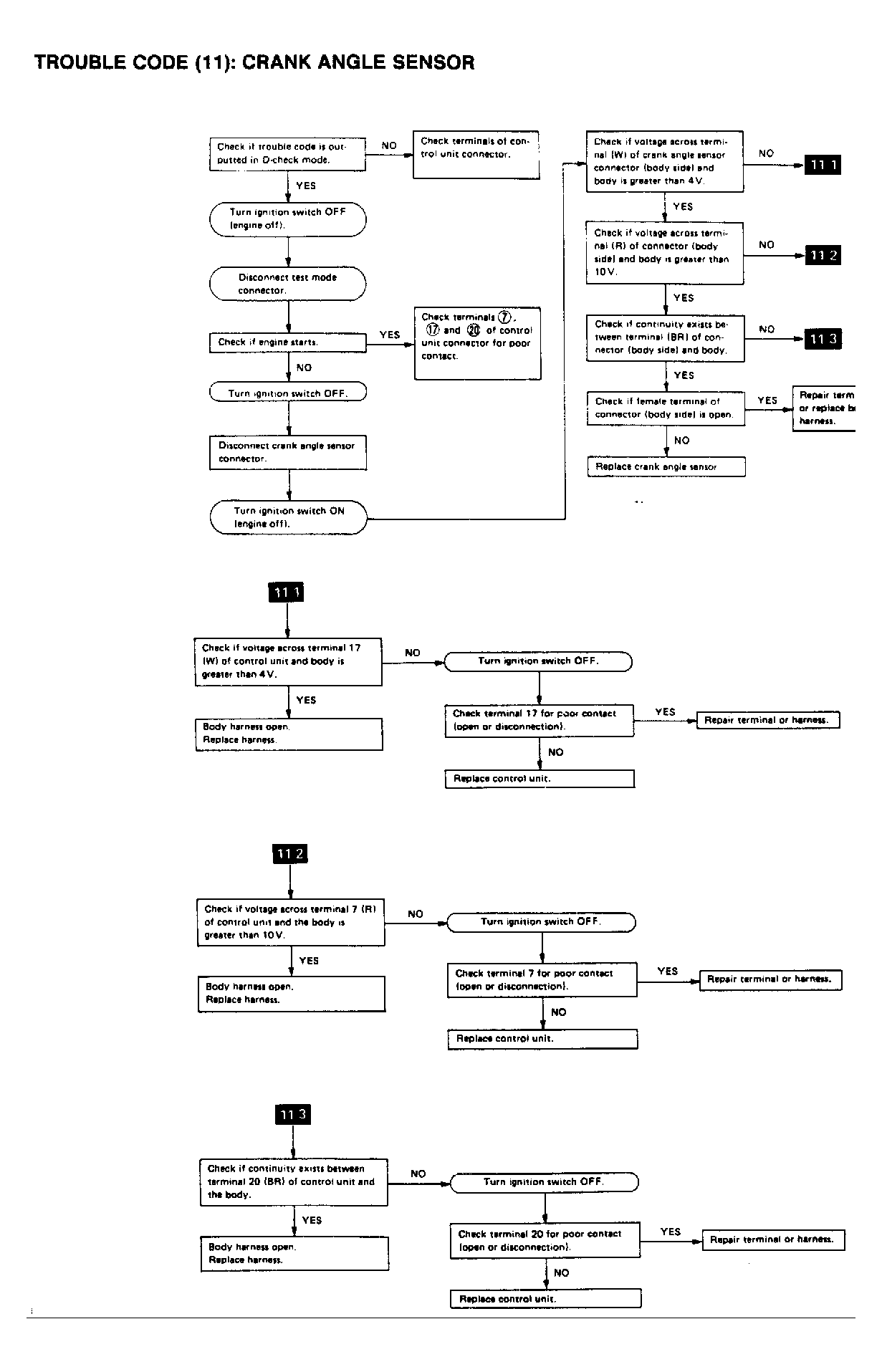

Fig 2: Trouble Code 11, Crank Angle Sensor (Exc. XT Model)
