Mixture Control Solenoid: Testing and Inspection

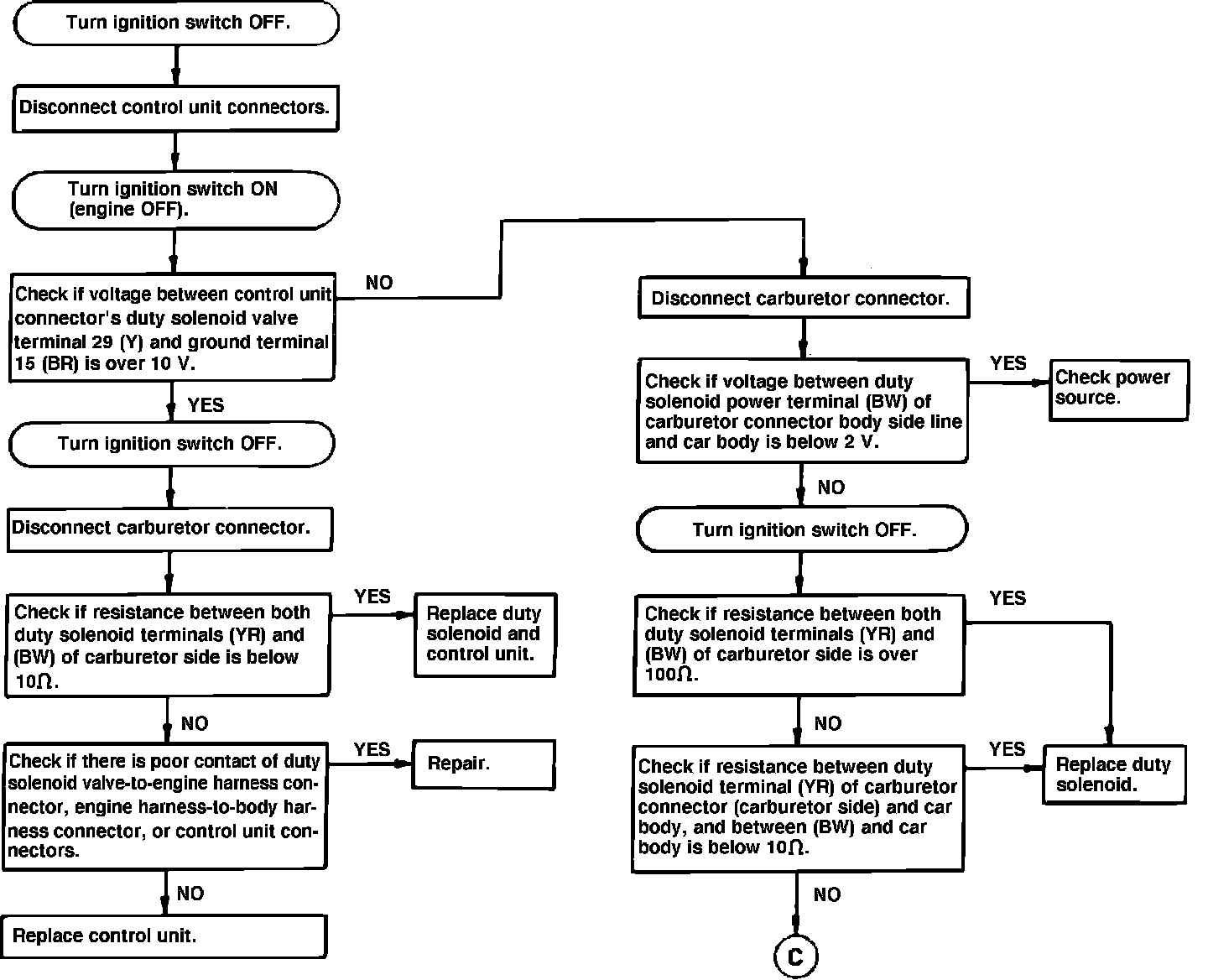

Fig. 43a Electronically controlled carburetor diagnostic chart. Duty solenoid valve (trouble code 14).:



Fig. 43b Electronically controlled carburetor diagnostic chart. Duty solenoid valve (trouble code 14).:
