Home >> Subaru >> 1988 >> Justy Hatchback 2WD L3-1189cc 1.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Clutch Switch >> Testing and Inspection

Clutch Switch: Testing and Inspection

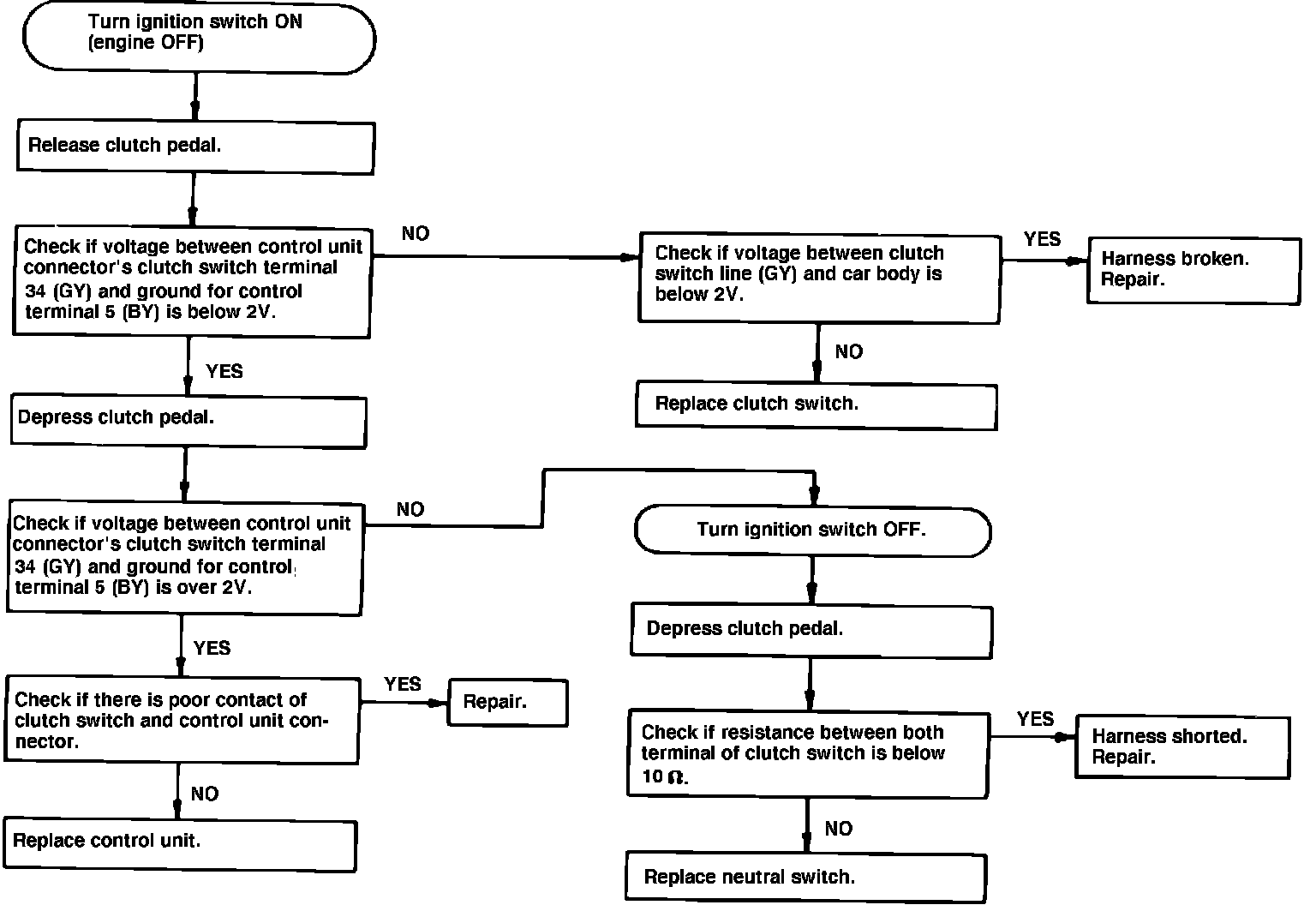

Fig. 53 Electronically controlled carburetor diagnostic chart. Clutch switch (trouble code 52).:
