Home >> Subaru >> 1988 >> Justy Hatchback 2WD L3-1189cc 1.2L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Axle Shaft Assembly >> Front

Front

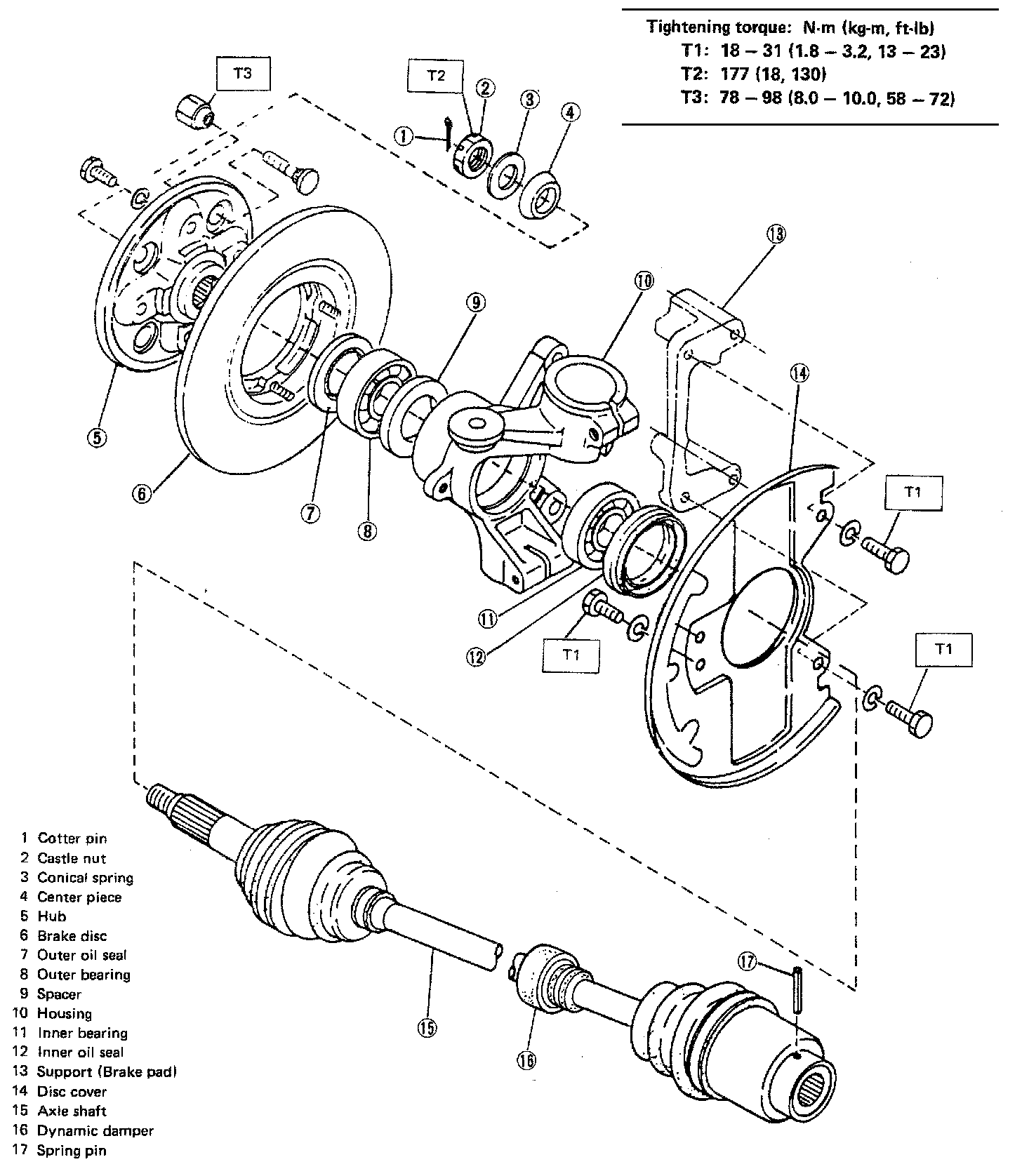

Front Axle:
