Clutch Switch: Testing and Inspection

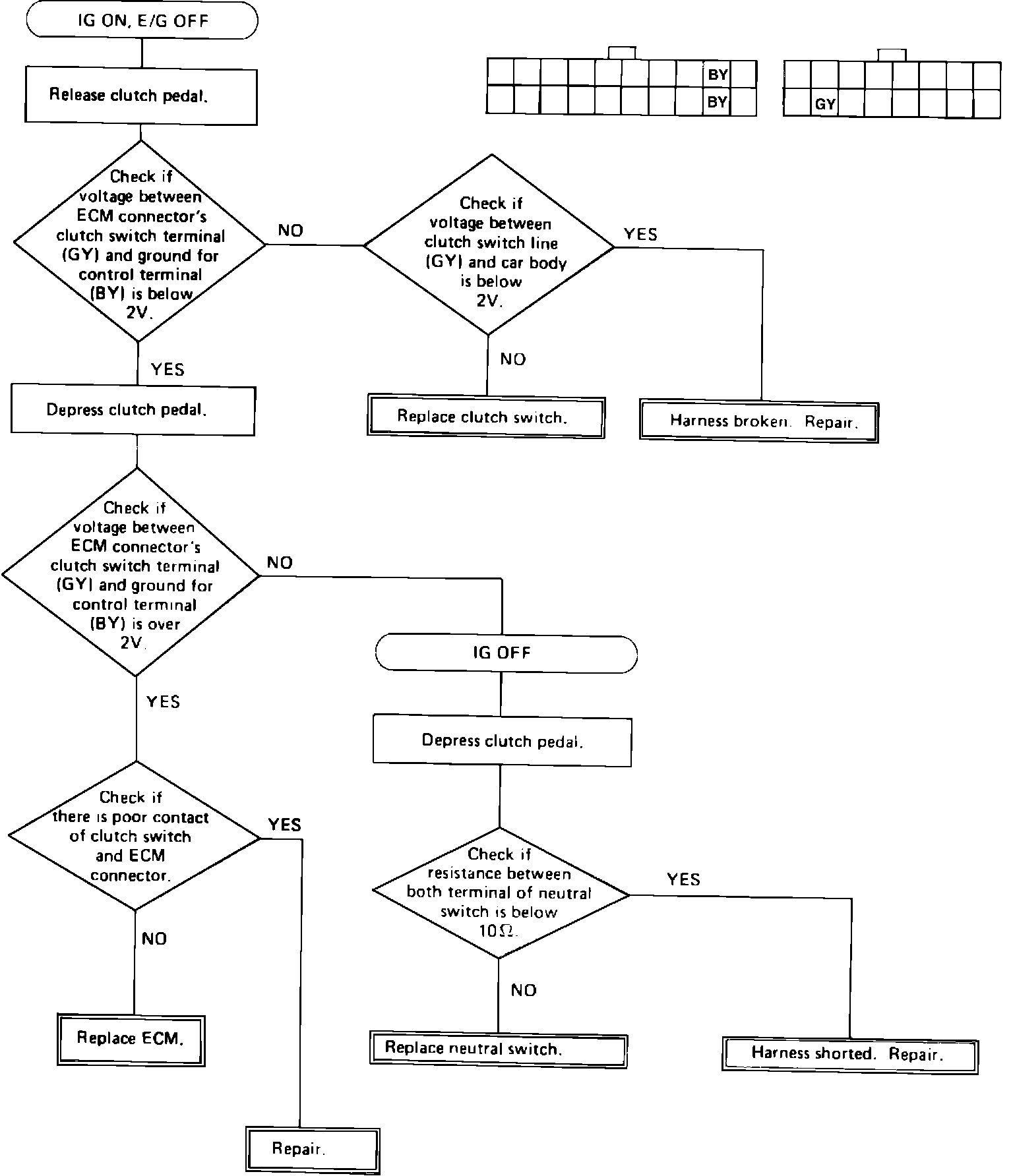

Fig. 37 Electronically controlled carburetor diagnostic chart. Trouble code 52.:
