Home >> Subaru >> 1987 >> Hatchback 2WD F4-1595cc 1.6L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Exhaust Gas Recirculation >> EGR Control Solenoid >> Testing and Inspection

EGR Control Solenoid: Testing and Inspection

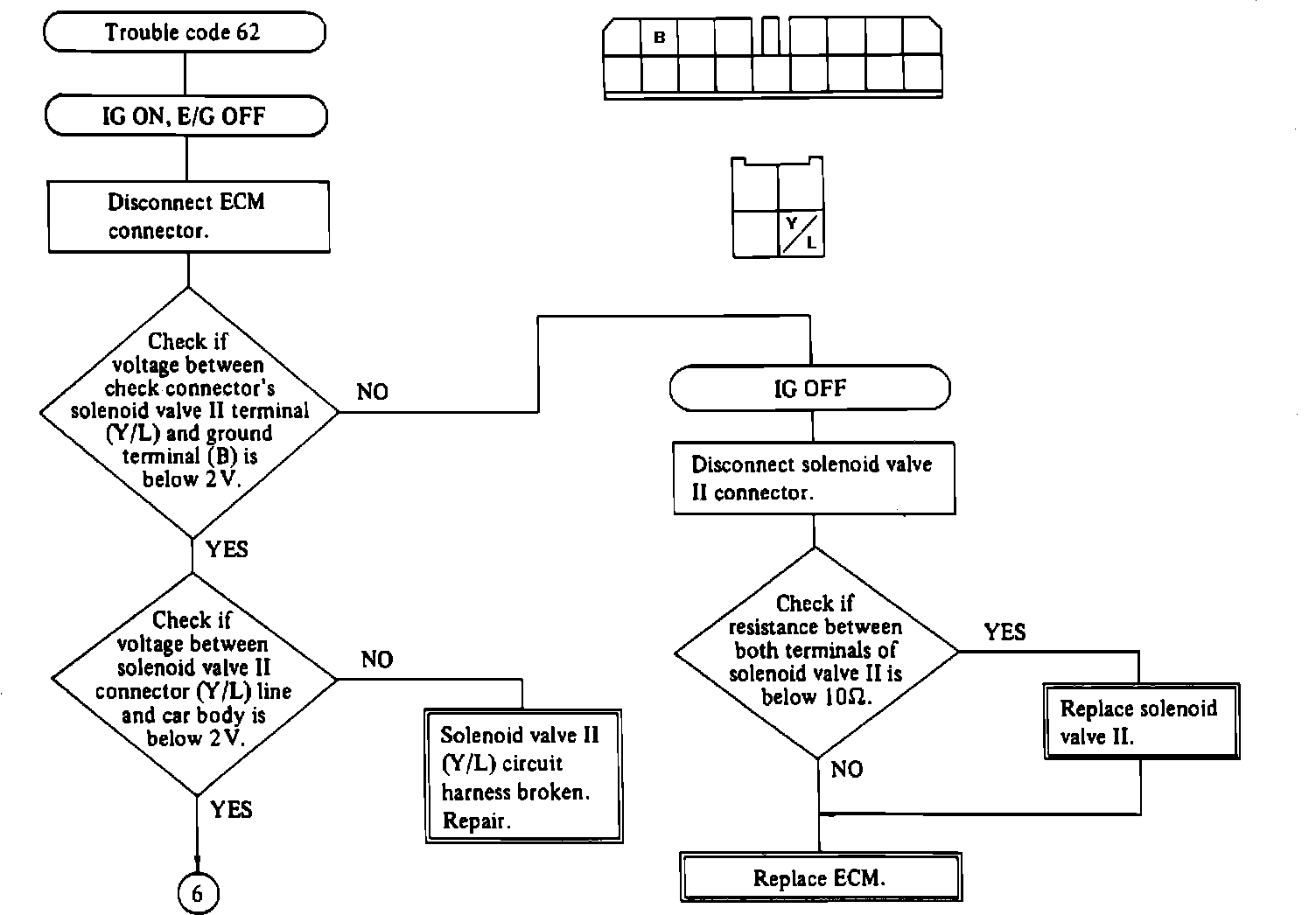

Code 62 - Solenoid Valve ll Stays On:

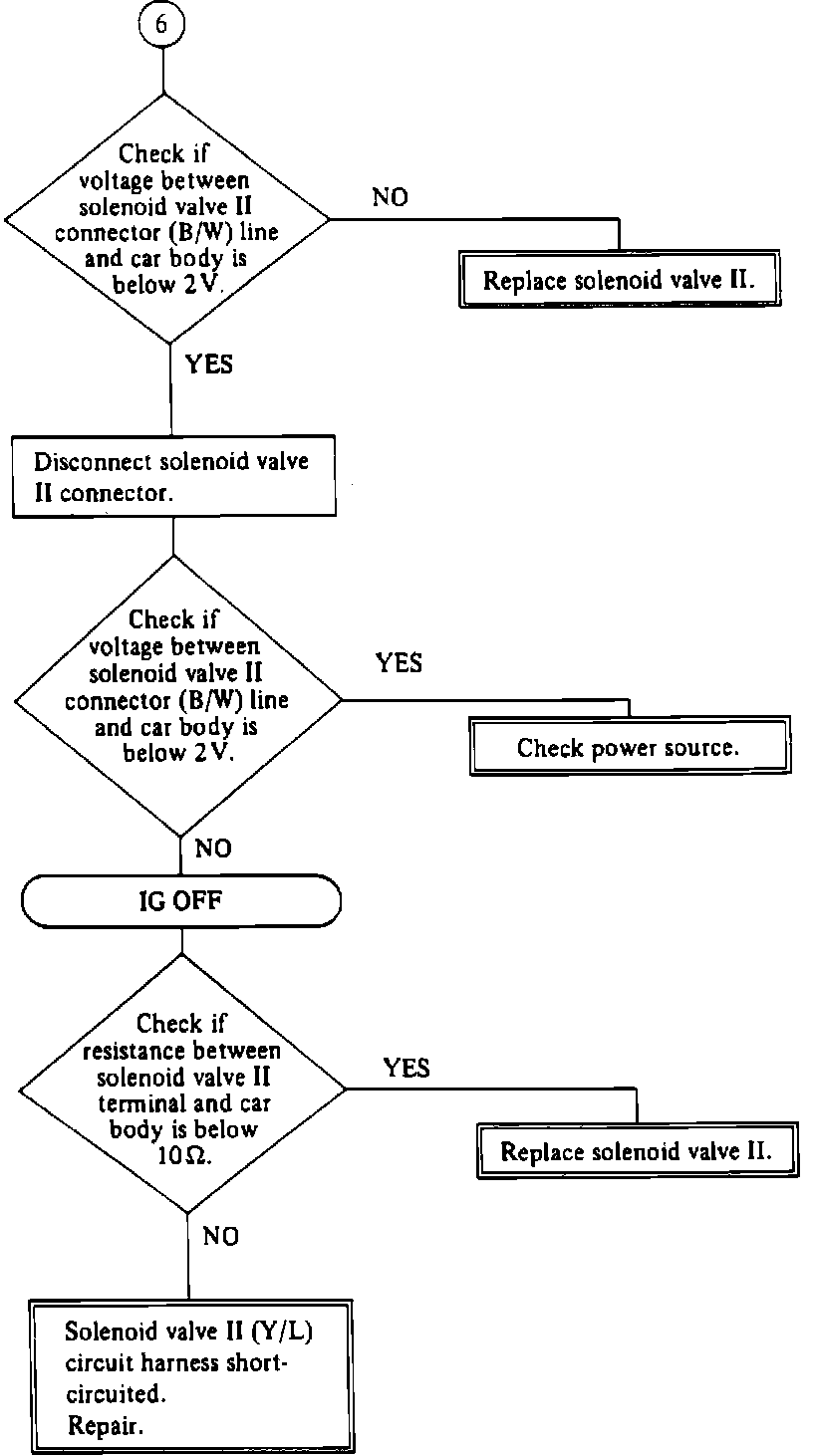

Code 62 - Solenoid Valve ll Stays On:



Code 63 - Solenoid Valve ll Stays Off:
