Subaru
>>
1985
>>
Brat F4-1781cc 1.8L Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Throttle Full Open Switch
>>
Testing and Inspection
Throttle Full Open Switch: Testing and Inspection

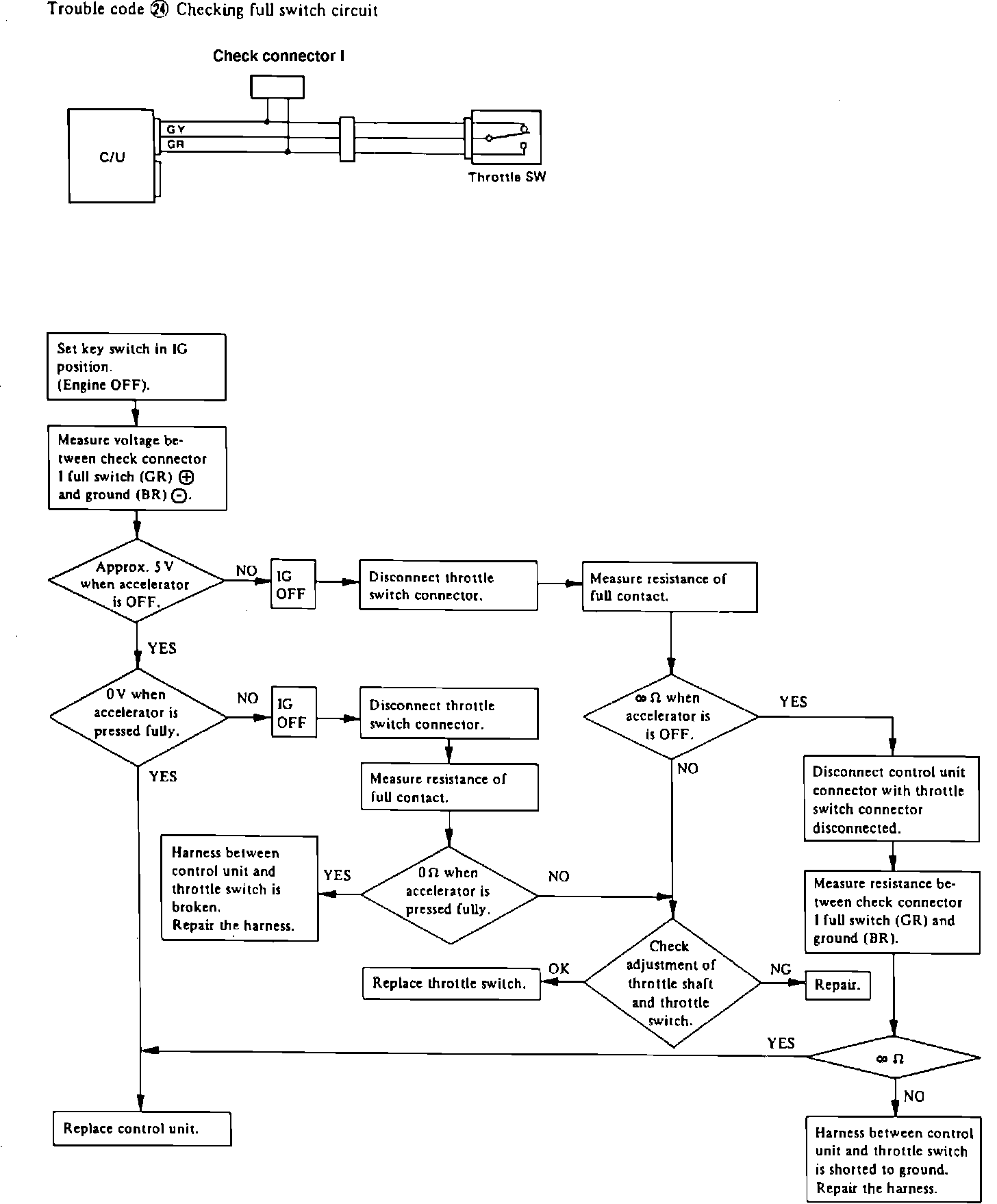

Fig.12 EGI system troubleshooting chart. Trouble code 24. Checking full switch circuit.:
