Control Unit Ground Circuit Check

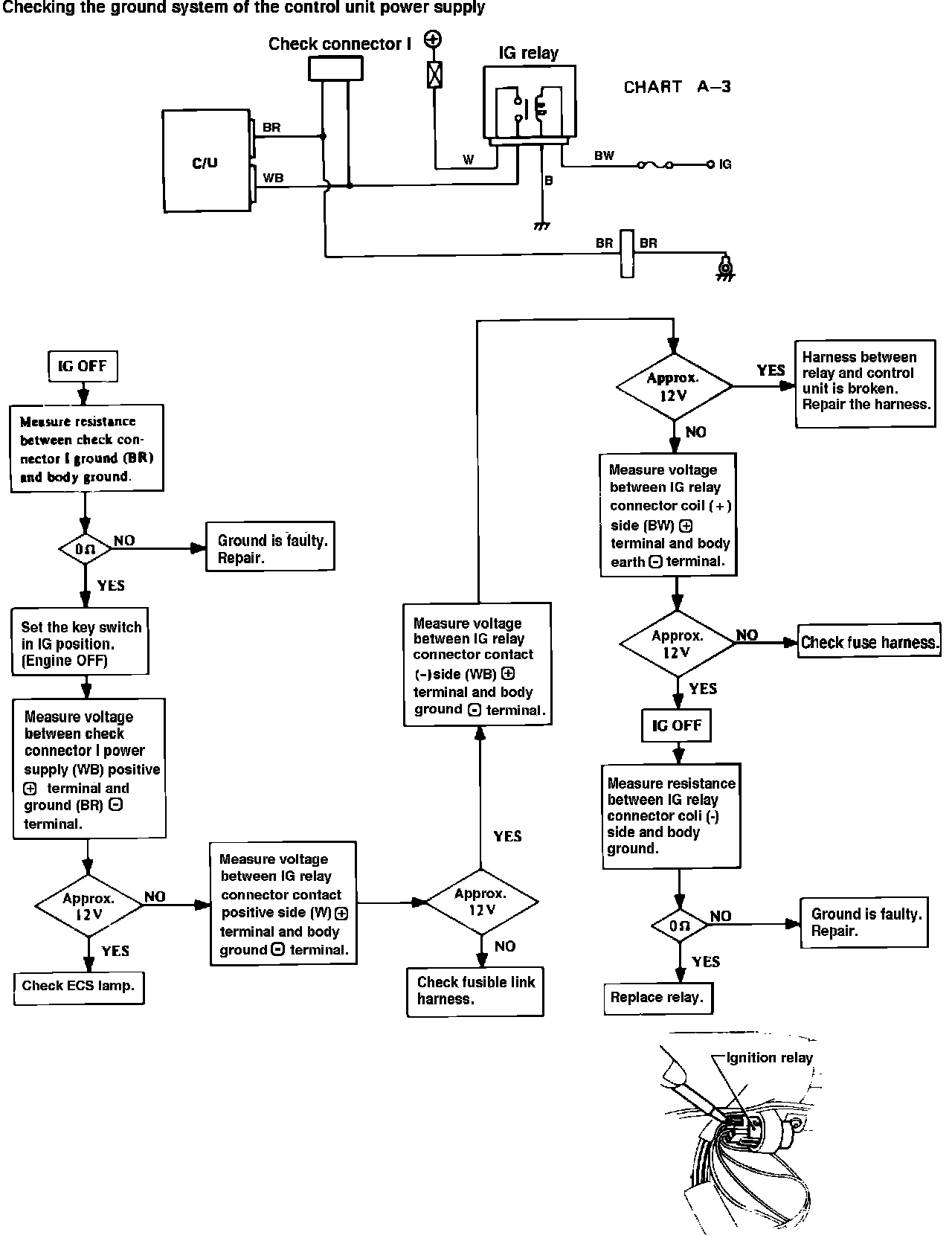

Fig.2 EGI system troubleshooting chart. Control unit ground check.:
