Subaru
>>
1985
>>
Brat F4-1781cc 1.8L Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Coolant Temperature Sensor/Switch (For Computer)
>>
Testing and Inspection
>>
Circuit Inspection
Circuit Inspection

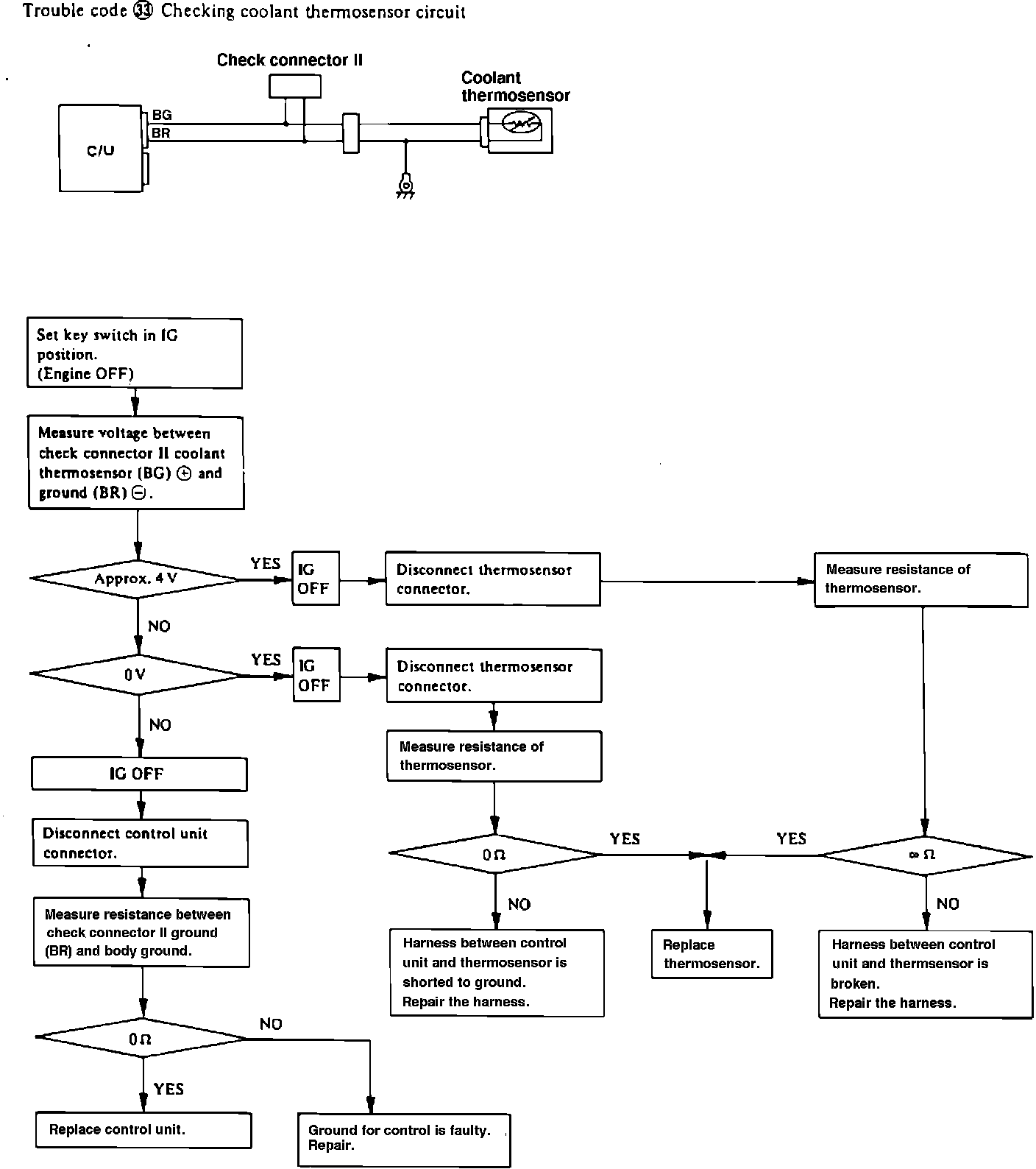

Fig.15 EGI system troubleshooting chart. Trouble code 33. Checking coolant thermosensor circuit.:
