Subaru
>>
1985
>>
Brat F4-1781cc 1.8L Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Air Flow Meter/Sensor
>>
Testing and Inspection
>>
Component Inspection
Component Inspection

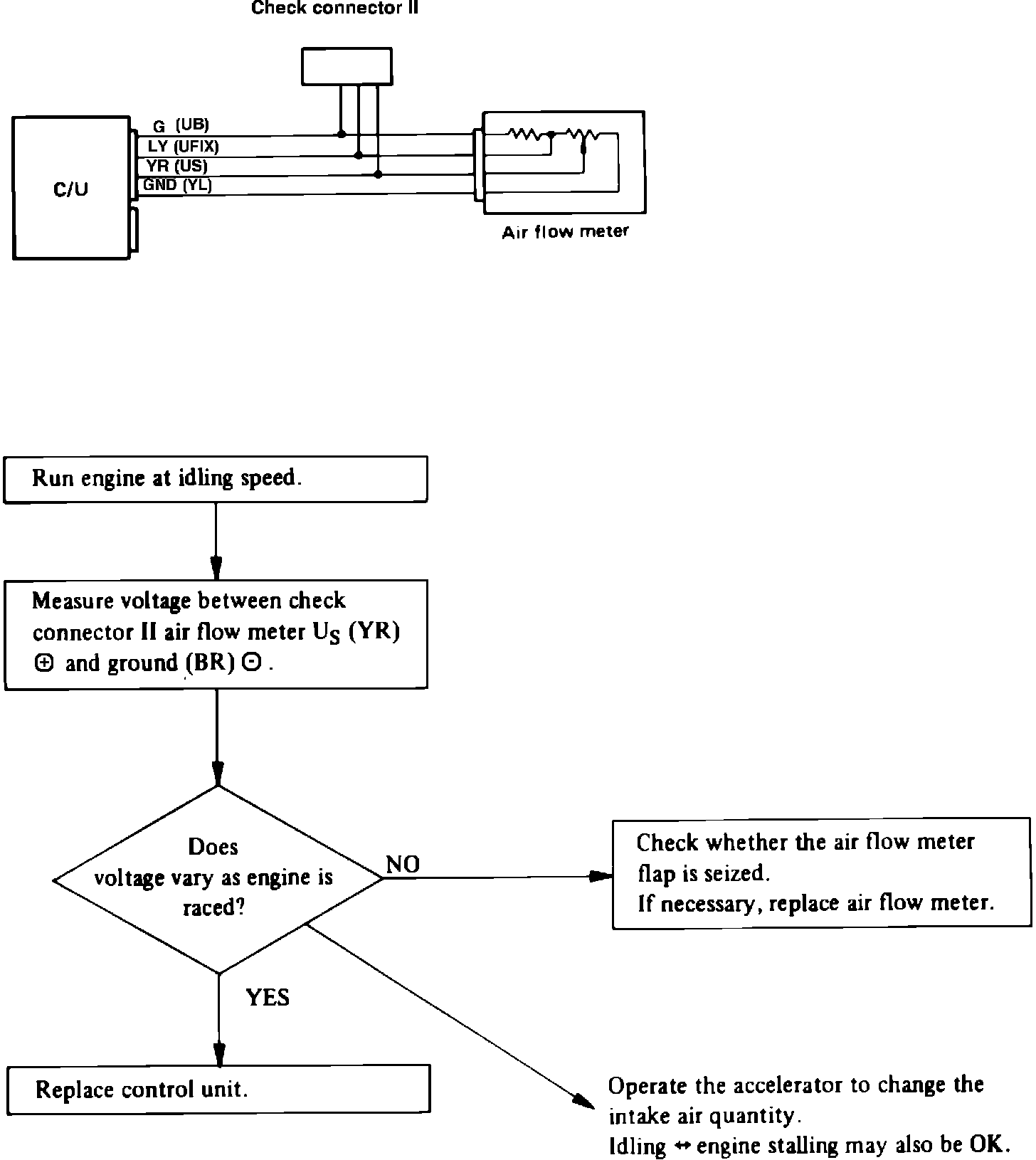

Fig.9 EGI system troubleshooting chart. Trouble code 21. Checking air flow meter circuit.:
