Circuit Inspection

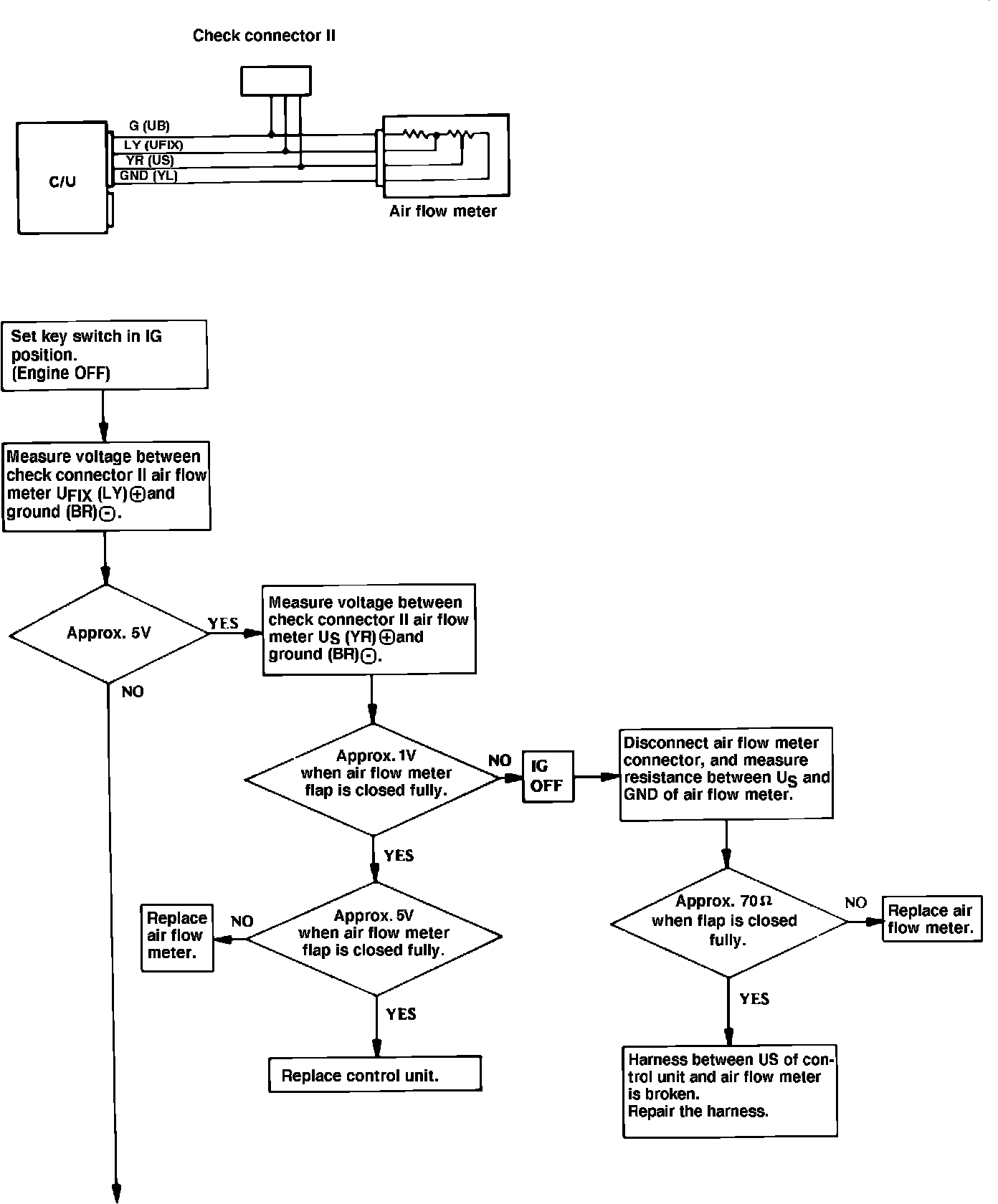

Fig.8a EGI system troubleshooting chart. Trouble code 14. Checking air flow meter circuit.:

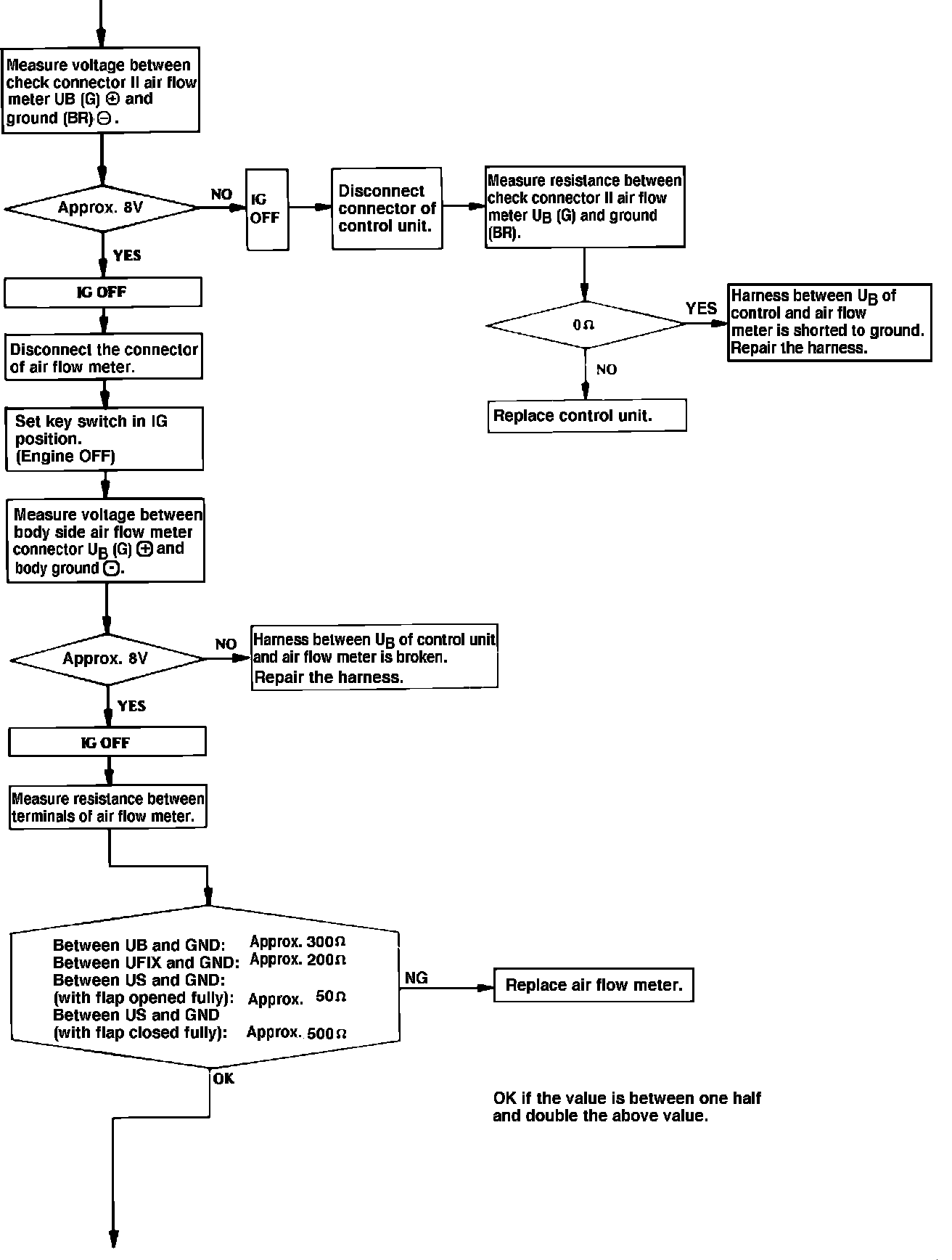

Fig.8b EGI system troubleshooting chart. Trouble code 14. Checking air flow meter circuit.:



Fig.8c EGI system troubleshooting chart. Trouble code 14. Checking air flow meter circuit.:
