Home >> Subaru >> 1983 >> Brat F4-1781cc 1.8L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> A/T Torque Data

A/T Torque Data

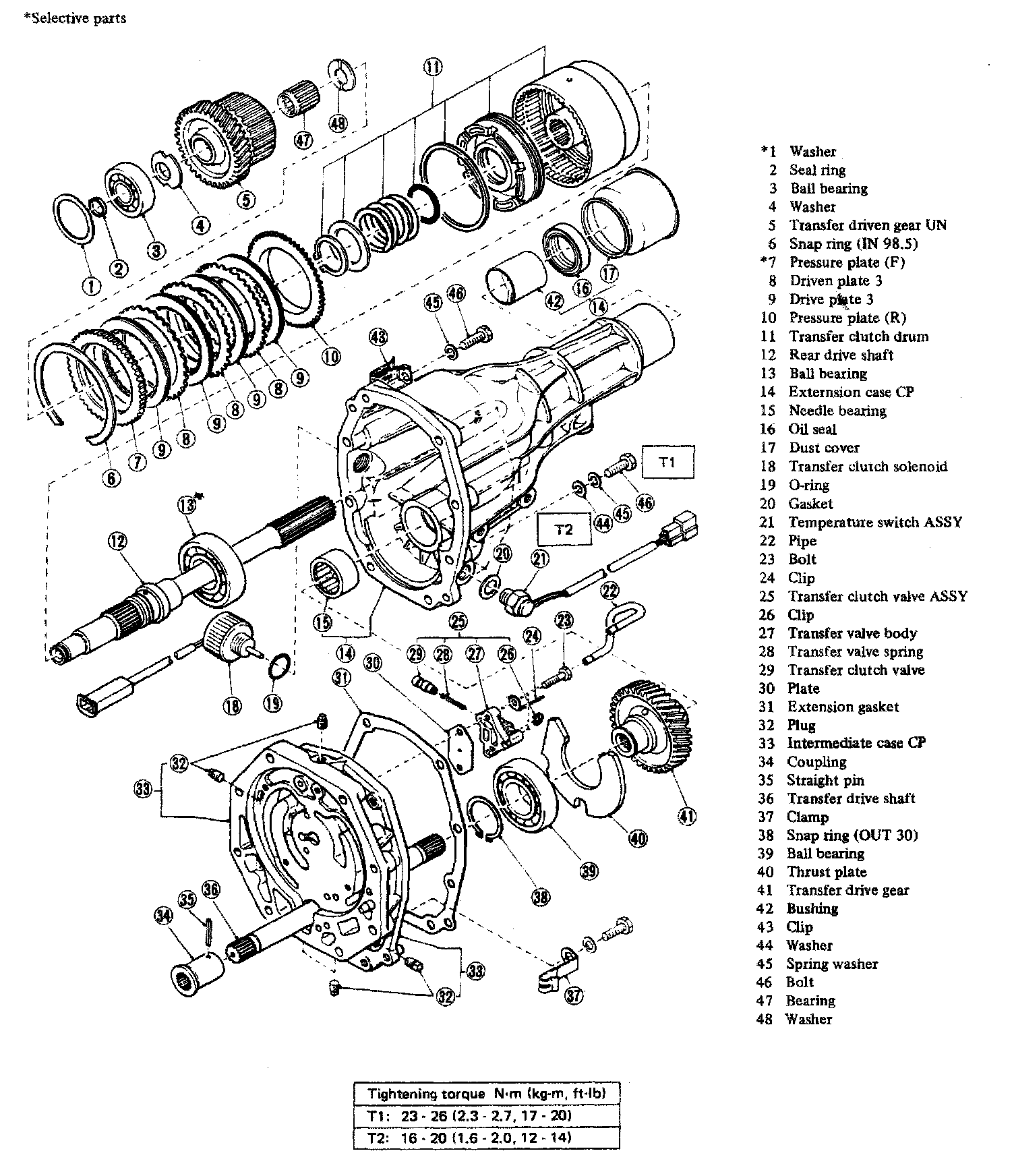

3-spd A/T, Extension Case:

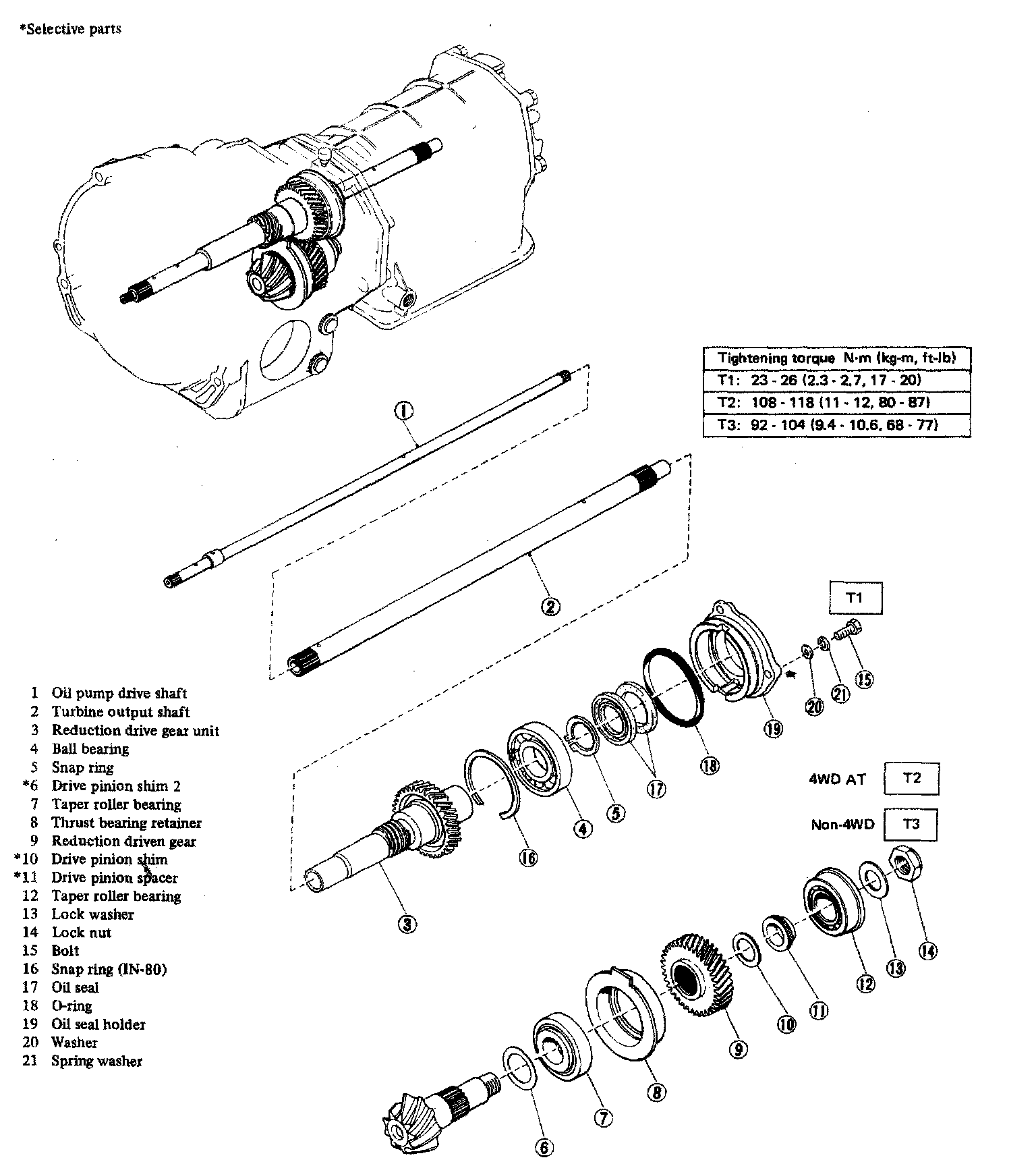

3-spd A/T, Transmission Shaft & Reduction Gear:
