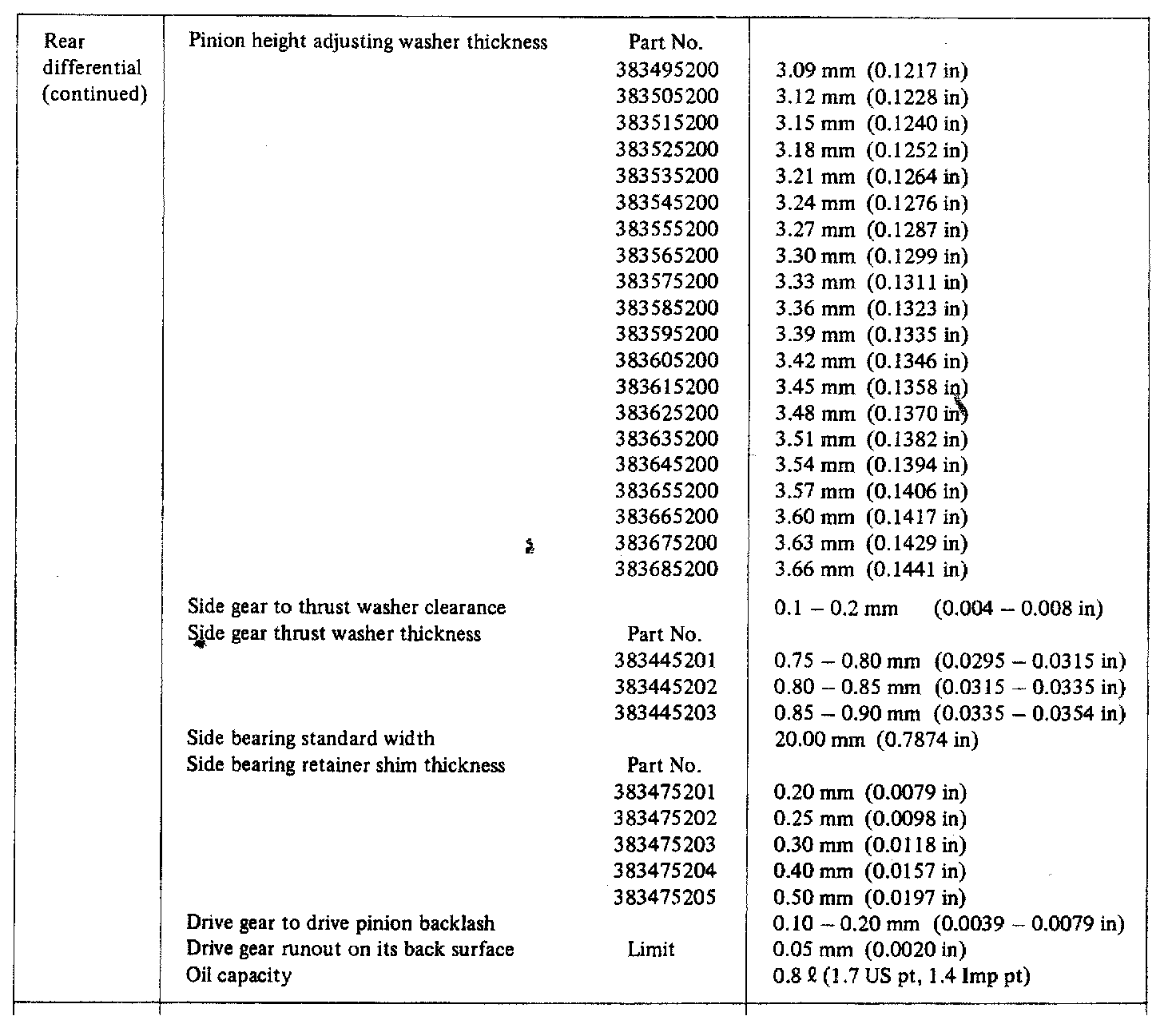

Differential Technical Data

Rear Wheel Drive System (4WD):





Rear Wheel Drive Differential:




Rear Wheel Drive Differential:
